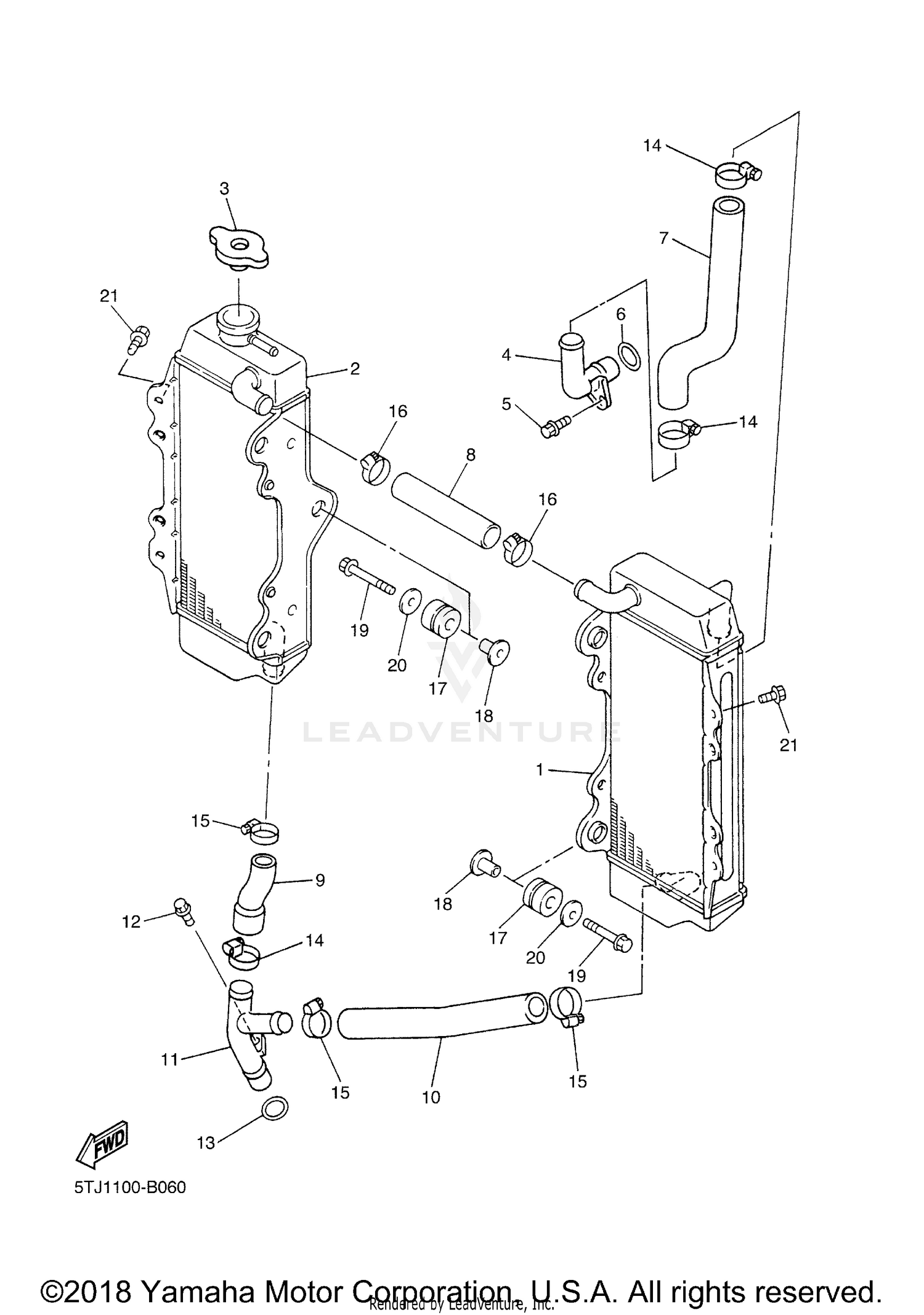

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY
5TJ-1240A-00-00
|
$382.07 | ||
|
Unavailable |
|||
|
#2
RADIATOR ASSY
5TJ-12461-00-00
|
$378.09 | ||
|
Unavailable |
|||
|
#3
CAP, RADIATOR
5HD-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE 1
5TA-12481-00-00
Superseded by 2S2-12481-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-16500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE 1
5TA-12576-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE 4
5SG-12579-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE 3
5TA-12578-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE 4
5TA-12579-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE 2
5TA-12482-00-00
Superseded by 5TJ-12482-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Unavailable |
|||
|
#13
O-RING
93210-16500-00
|
$6.49 | ||
|
Unavailable |
|||
|
#14
HOSE CLAMP ASSY
90450-28014-00
Superseded by 90450-28001-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE CLAMP ASSY
90450-25037-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE CLAMP ASSY
90450-25037-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Unavailable |
|||
|
#17
GROMMET
90480-15528-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-06065-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
