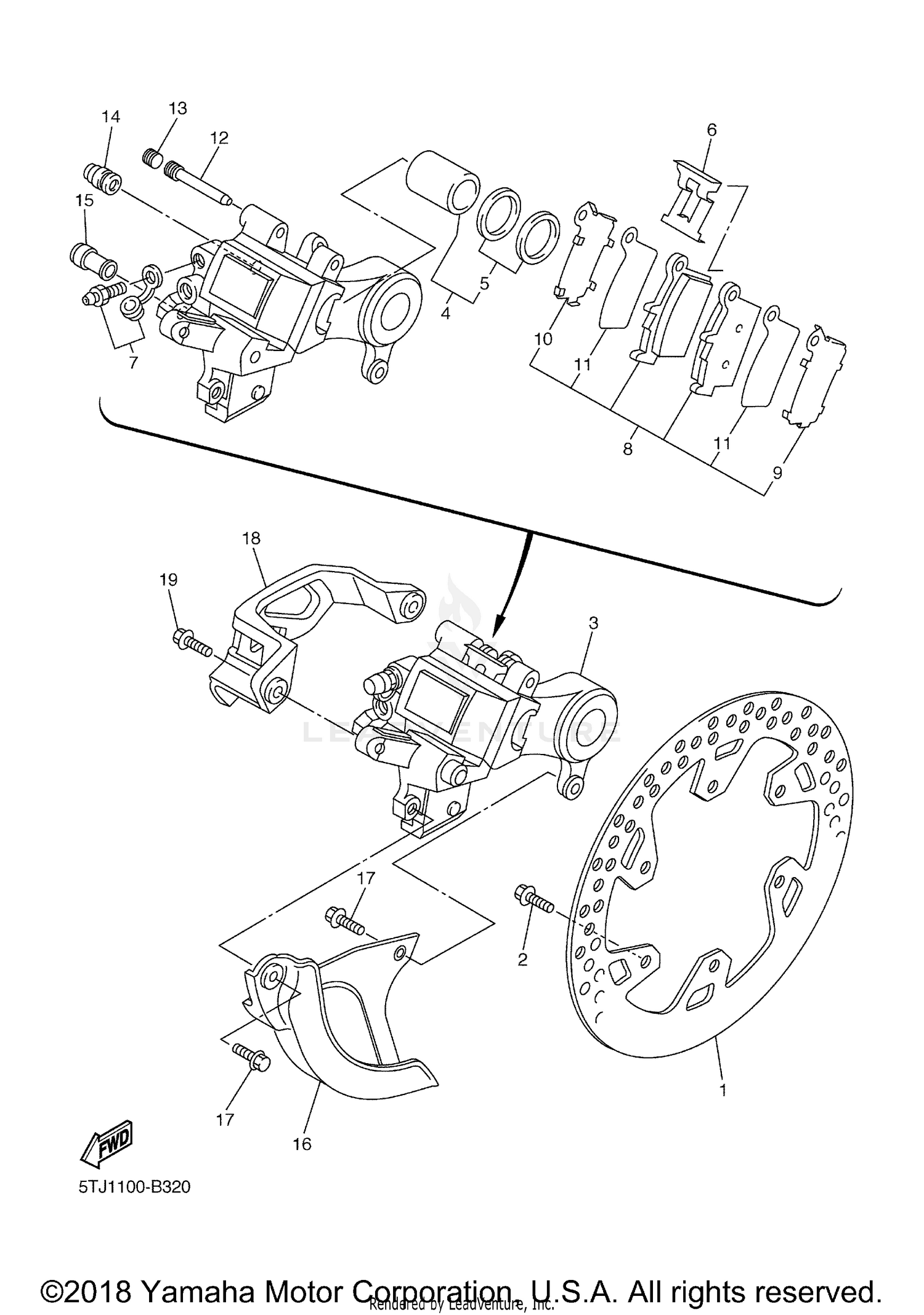

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, REAR BRAKE 2
5NY-2582W-00-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
90109-065G4-00
Superseded by 90105-06109-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY, REAR 2
5UN-2580W-20-00
|
$282.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
5UN-W0057-50-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
5UN-W0047-50-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUPPORT, PAD
5DH-25919-50-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEED SCREW KIT
36Y-W0048-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT 2
5UN-W0046-60-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIM, CALIPER
5UN-25828-60-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, CALIPER
5UN-25827-60-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
INSULATOR, HEAT
5UN-22898-60-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, PAD
8CR-25924-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG
5DH-25916-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT, CALIPER
3JD-25917-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT 2
1UY-25937-51-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR, DISK BRAKE
5DH-25718-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95027-06012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR
5TA-27491-00-00
Superseded by 5TA-27491-09-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-06696-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
