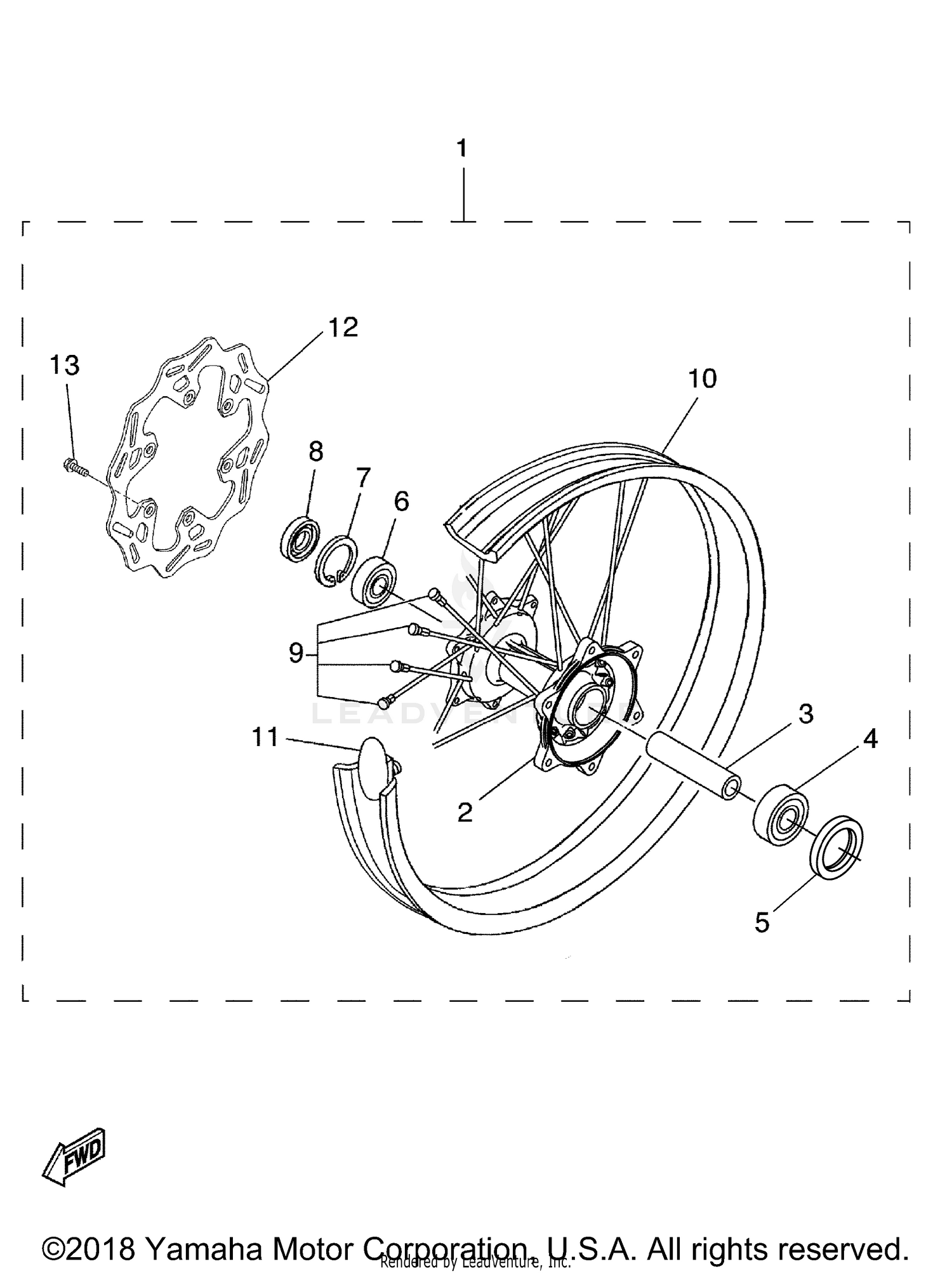

Rear Wheel Kit Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR WHEEL KIT
5TJ-W2539-F0-00
|
$509.95 | ||
|
Unavailable |
|||
|
#2
HUB, REAR
5ET-25311-00-00
|
$311.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, BEARING
5ET-25317-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-27212-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93106-30001-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-07202-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
99009-45500-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
93106-30045-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPOKE SET, REAR
5GS-25304-00
|
|||
|
Unavailable |
|||
|
#10
RIM (2.15-18)
94421-18008-00
|
$296.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER, BEAD
3JE-25394-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DISC, REAR BRAKE 2
2S2-2582W-70-00
Superseded by B11-2582W-00-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-06108-00
Superseded by 90105-06109-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
