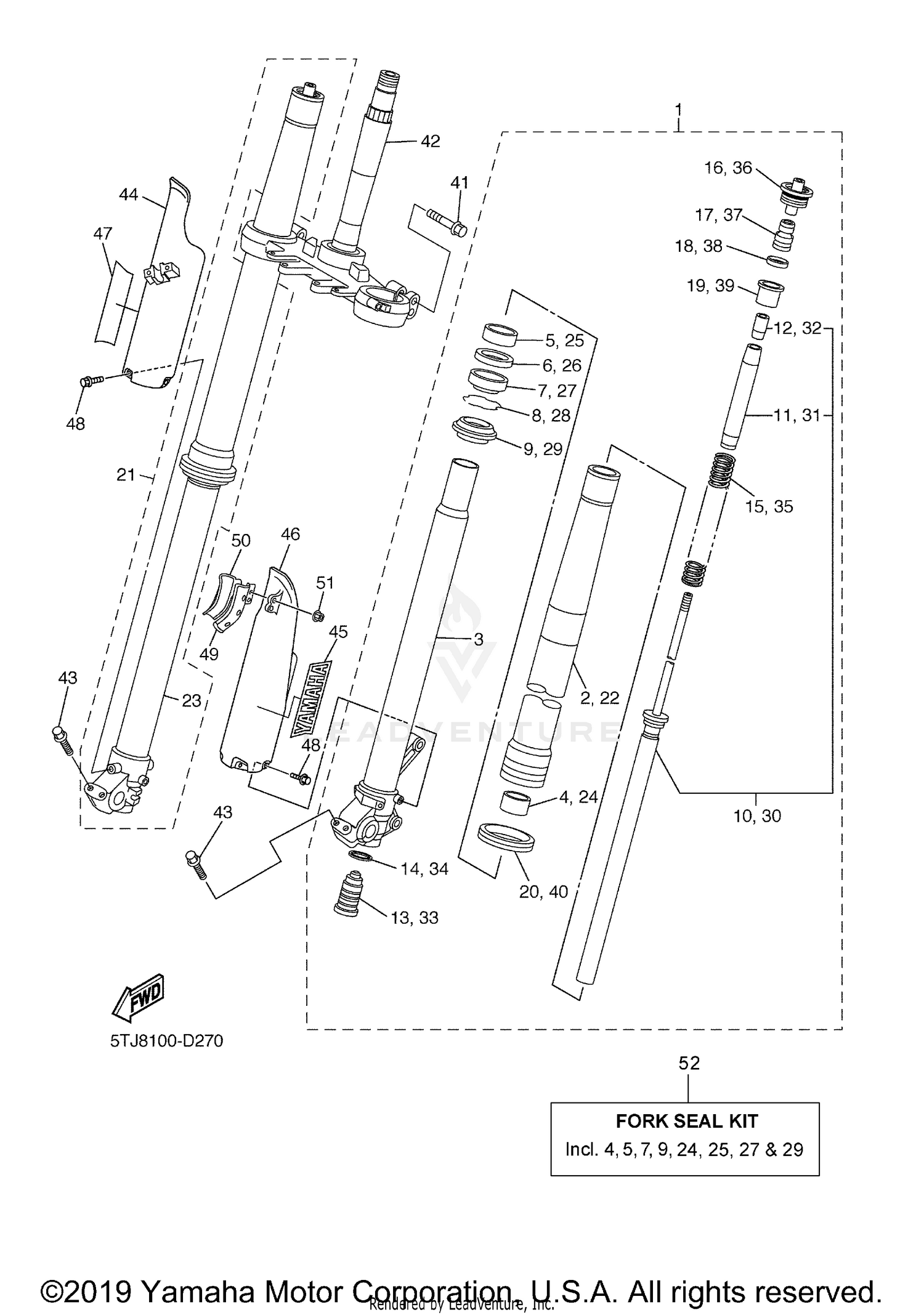

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
5TJ-23102-L0-00
|
$1,138.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER
5TJ-23136-L0-00
|
$672.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE COMP. 2
5TJ-23120-L0-00
|
$397.99 | ||
|
Unavailable |
|||
|
#4
PISTON, FRONT FORK
5XE-23171-L0-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
5XE-23125-L0-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
5XE-23146-L0-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
1C3-23145-L0-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, SNAP
5XE-23153-L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
5XE-23144-L0-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRON
5TJ-23170-80-00
Superseded by 5TJ-23170-60-00
|
$570.99 | ||
|
Unavailable |
|||
|
#11
SEAT, SPRING UPPER
5TJ-23142-L0-00
|
$41.99 | ||
|
Unavailable |
|||
|
#12
NUT, SPECIAL
5HD-23393-L0-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
VALVE COMP.
5TJ-2316A-80-00
|
$219.29 | ||
|
Unavailable |
|||
|
#14
GASKET
3JD-23158-L0-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING (K=4.5N/MM)
5TJ-23141-L0-00
Superseded by 5TJ-23141-50-00
|
$80.99 | ||
|
Unavailable |
|||
|
#16
BOLT, CAP
5XE-23111-L0-00
|
$228.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RUBBER
5MV-23195-L0-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING UPPER
5TJ-23149-L0-00
|
$5.99 | ||
|
Unavailable |
|||
|
#19
SPACER
5TJ-23118-L0-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PROTECTER GUIDE COMP., 1
1C3-2314F-L0-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FRONT FORK ASSY (R.H)
5TJ-23103-L0-00
|
$1,187.99 | ||
|
Unavailable |
|||
|
#22
TUBE, OUTER
5TJ-23136-L0-00
|
$672.99 | ||
|
Unavailable |
|||
|
#23
INNER TUBE COMP. 1
5TJ-23110-L0-00
|
$342.99 | ||
|
Unavailable |
|||
|
#24
PISTON, FRONT FORK
5XE-23171-L0-00
|
$25.99 | ||
|
Unavailable |
|||
|
#25
METAL, SLIDE 1
5XE-23125-L0-00
|
$24.99 | ||
|
Unavailable |
|||
|
#26
WASHER, OIL SEAL
5XE-23146-L0-00
|
$12.99 | ||
|
Unavailable |
|||
|
#27
OIL SEAL
1C3-23145-L0-00
|
$30.99 | ||
|
Unavailable |
|||
|
#28
RING, SNAP
5XE-23153-L0-00
|
$7.49 | ||
|
Unavailable |
|||
|
#29
SEAL, DUST
5XE-23144-L0-00
|
$21.99 | ||
|
Unavailable |
|||
|
#30
CYLINDER COMP., FRON
5TJ-23170-80-00
Superseded by 5TJ-23170-60-00
|
$570.99 | ||
|
Unavailable |
|||
|
#31
SEAT, SPRING UPPER
5TJ-23142-L0-00
|
$41.99 | ||
|
Unavailable |
|||
|
#32
NUT, SPECIAL
5HD-23393-L0-00
|
$27.99 | ||
|
Unavailable |
|||
|
#33
VALVE COMP.
5TJ-2316A-80-00
|
$219.29 | ||
|
Unavailable |
|||
|
#34
GASKET
3JD-23158-L0-00
|
$11.49 | ||
|
Unavailable |
|||
|
#35
SPRING (K=4.5N/MM)
5TJ-23141-L0-00
Superseded by 5TJ-23141-50-00
|
$80.99 | ||
|
Unavailable |
|||
|
#36
BOLT, CAP
5XE-23111-L0-00
|
$228.99 | ||
|
Unavailable |
|||
|
#37
RUBBER
5MV-23195-L0-00
|
$28.99 | ||
|
Unavailable |
|||
|
#38
WASHER, SPRING UPPER
5TJ-23149-L0-00
|
$5.99 | ||
|
Unavailable |
|||
|
#39
SPACER
5TJ-23118-L0-00
|
$14.99 | ||
|
Unavailable |
|||
|
#40
PROTECTER GUIDE COMP., 1
1C3-2314F-L0-00
|
$41.99 | ||
|
Unavailable |
|||
|
#41
BOLT 1
5NY-23346-L0-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#42
UNDER BRACKET COMP.
5TJ-23340-L0-00
|
$460.68 | ||
|
Unavailable |
|||
|
#43
BOLT, FLANGE
95027-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
PROTECTOR 2
5TJ-2315J-80-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
PROTECTOR 1
1C3-2315H-00-00
Superseded by 1C3-2315H-10-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
EMBLEM, YAMAHA
4XL-2153A-10-00
Superseded by 4XL-2153A-11-00
|
$9.49 | ||
|
Unavailable |
|||
|
#48
BOLT 2
3SP-23356-L0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP
1C3-23466-00-00
Superseded by 1C3-23466-50-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
CLAMP
1C3-23467-00-00
Superseded by 1C3-23467-50-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#52
FORK SEAL KIT
1C3-W003B-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
