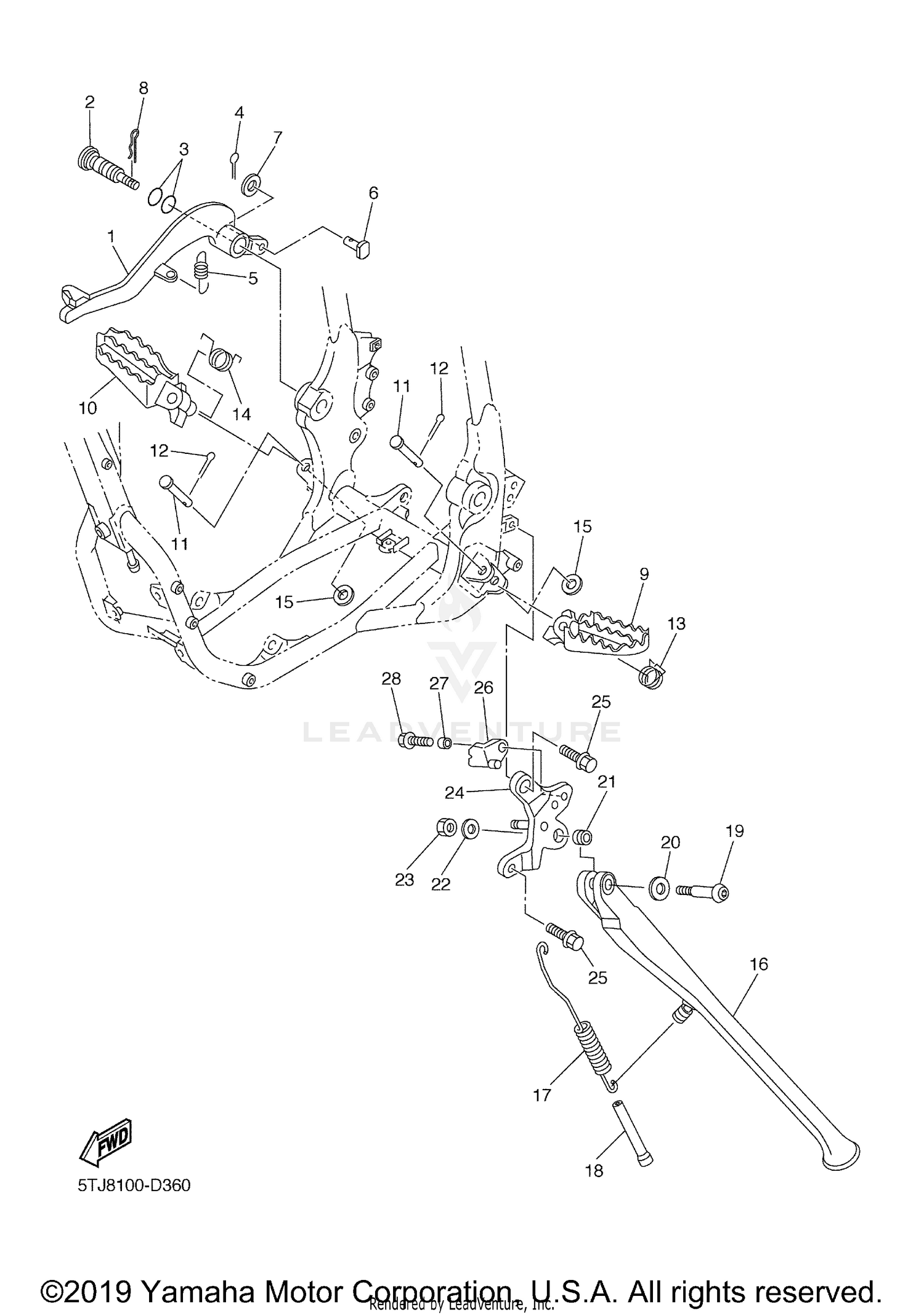

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5TA-27200-00-00
Superseded by 5TA-27200-01-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
1C3-27217-00-00
Superseded by 1C3-27217-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-11073-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TENSION
90506-16500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, CLEVIS
90240-08120-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08089-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90468-16099-00
Superseded by 90468-16192-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FOOTREST 1
5ET-27411-00-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FOOTREST 2
5ET-27421-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, CLEVIS
90240-10142-00
Superseded by 90240-10004-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TORSION
90508-282B8-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, TORSION
90508-282B9-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-10119-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAND, SIDE
5TJ-27311-80-00
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, TENSION
90506-30002-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, FOOTREST
5TJ-27414-80-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90109-08051-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-1003G-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-086P8-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
90185-08055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, SIDE STAND
5TJ-21458-50-00
|
$111.43 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95027-10020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
STOPPER
5TJ-27314-50-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-06M24-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
