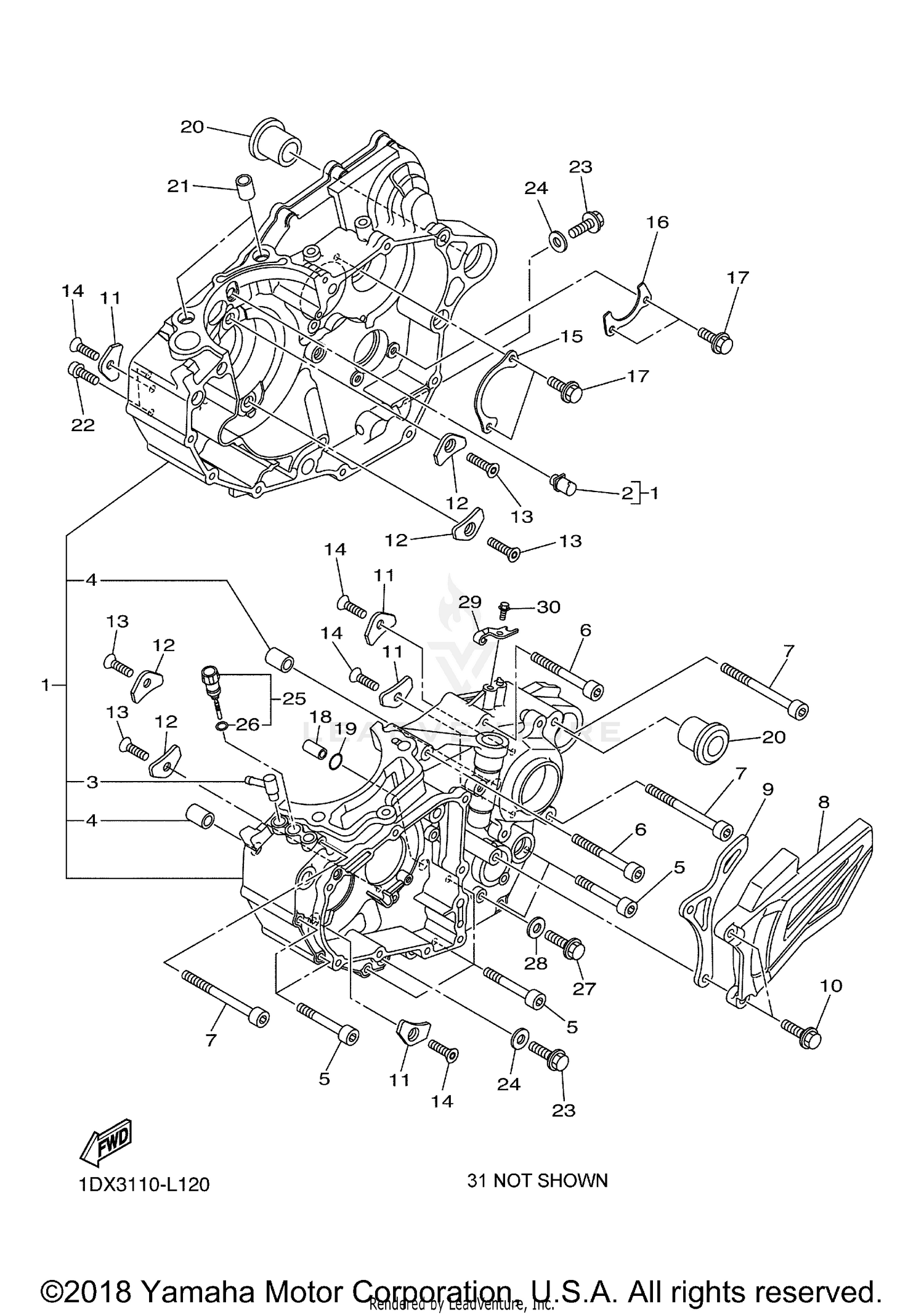

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
2S2-15100-39-00
|
$1,396.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NOZZLE 3
2S2-15155-10-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, BREATHER
5XC-15373-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL A
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
91312-06050-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
91312-06060-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
91312-06080-00
Superseded by 91314-06080-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CRANKCASE 2
1DX-15421-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, CHAIN
2S2-17466-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-06189-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, BEARING COVER
4JT-15381-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, BEARING COVER
5BE-15383-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, COUNTERSUNK
90151-06071-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
90149-06074-00
Superseded by 90151-06052-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, BEARING COVER
2S2-15388-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, STOPPER 2
2S2-18562-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-06081-00
Superseded by 95022-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-10197-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-18007-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, DOWEL A
99530-14016-00
|
$3.65 | ||
|
Unavailable |
|||
|
#22
BOLT
91312-06030-00
Superseded by 90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95822-08016-00
Superseded by 95814-08016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
90430-08119-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG, OIL LEVEL
2S2-1536A-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-09165-00
Superseded by 93210-09350-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#28
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER, CLUTCH CABLE
5TA-15441-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOTTOM END GASKET KI
2S2-W0002-00-00
Superseded by 2S2-W0002-10-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
