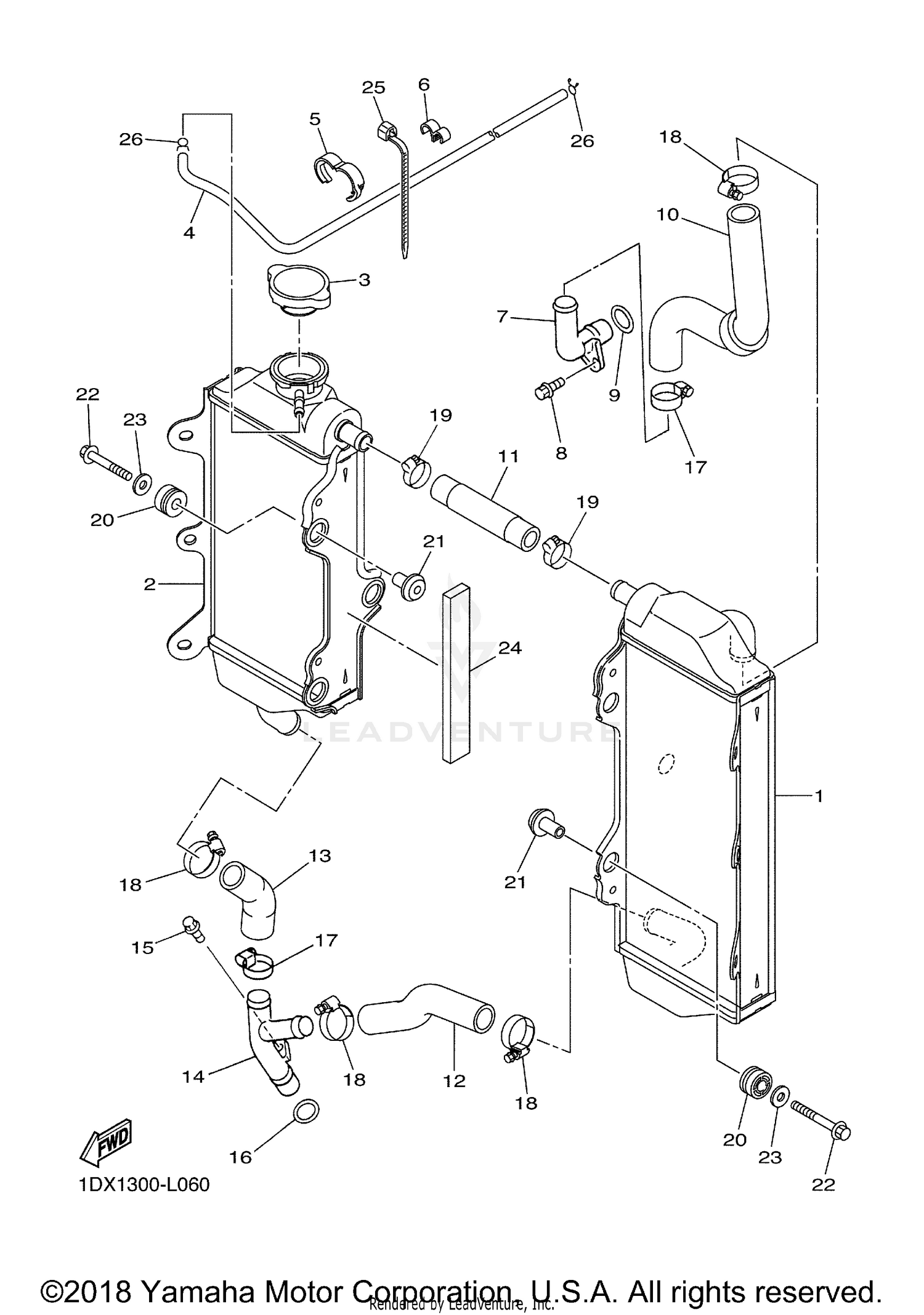

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY
1DX-1240A-00-00
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RADIATOR COMP
1DX-12461-00-00
|
$465.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RADIATOR
5SL-12462-00-00
Superseded by 5SL-12462-01-00
|
$27.99 | ||
|
Unavailable |
|||
|
#4
HOSE 5
1DX-1244H-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP
90464-16001-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90464-08002-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE 1
2S2-12481-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
91312-06012-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-16500-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE 1
1DX-12576-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE 2
1DX-12577-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOSE 3
1DX-12578-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE 4
1DX-12579-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE 2
2S2-12482-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95022-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-16500-00
|
$6.49 | ||
|
Unavailable |
|||
|
#17
HOSE CLAMP ASSY
90450-28001-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90450-25001-00
Superseded by 90450-22M14-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE CLAMP ASSY
90450-22001-00
Superseded by 90450-18M09-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-15012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-06272-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95022-06035-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-06571-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER, LOCATING 1
4KB-24181-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
