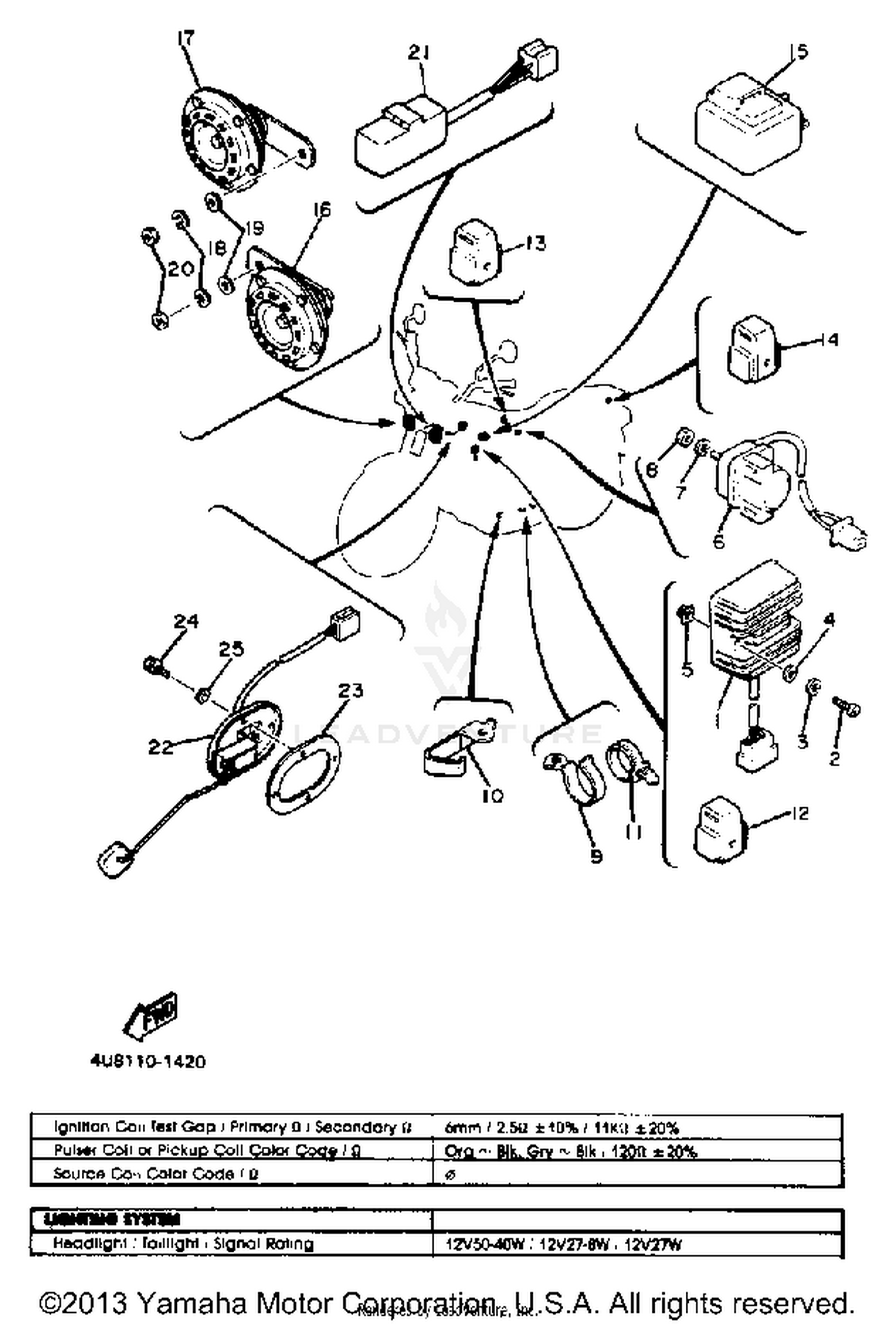

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER/REG ASSEMBLY
3G1-81960-A1-00
|
$271.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, PLATE
4G0-21736-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#6
UNAVAILABLE IN PRICE BOOK
3A7-81940-00-00
|
|||
|
Unavailable |
|||
|
#7
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#8
NUT
95380-06700-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90462-08078-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90462-08087-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY ASSY
12R-81950-01-00
Superseded by 12R-81950-02-00
|
$65.99 | ||
|
Unavailable |
|||
|
#13
RELAY ASSY (3H5-00)
3H5-81950-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#14
RELAY ASSY
4U8-81950-02-00
Superseded by 4U8-81950-03-00
|
$77.99 | ||
|
Unavailable |
|||
|
#15
FLASHER RELAY ASSEMBLYASSEMBLY
4E6-83350-70-00
Superseded by 2NV-83350-00-00
|
$182.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HORN
4G0-83371-20-00
|
$108.99 | ||
|
Unavailable |
|||
|
#17
HORN
4G0-83371-30-00
|
$111.99 | ||
|
Unavailable |
|||
|
#18
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
92906-08200-00
Superseded by 92907-08200-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
95306-08800-00
Superseded by 95307-08800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
FLASHER CANCELING UNIT
1A0-83395-03-00
|
$128.99 | ||
|
Unavailable |
|||
|
#22
SENDER UNIT ASSEMBLY, FUEL METE
4G0-85752-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#23
GASKET, SENDER UNIT
2H7-85753-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95821-06014-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90202-05187-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
