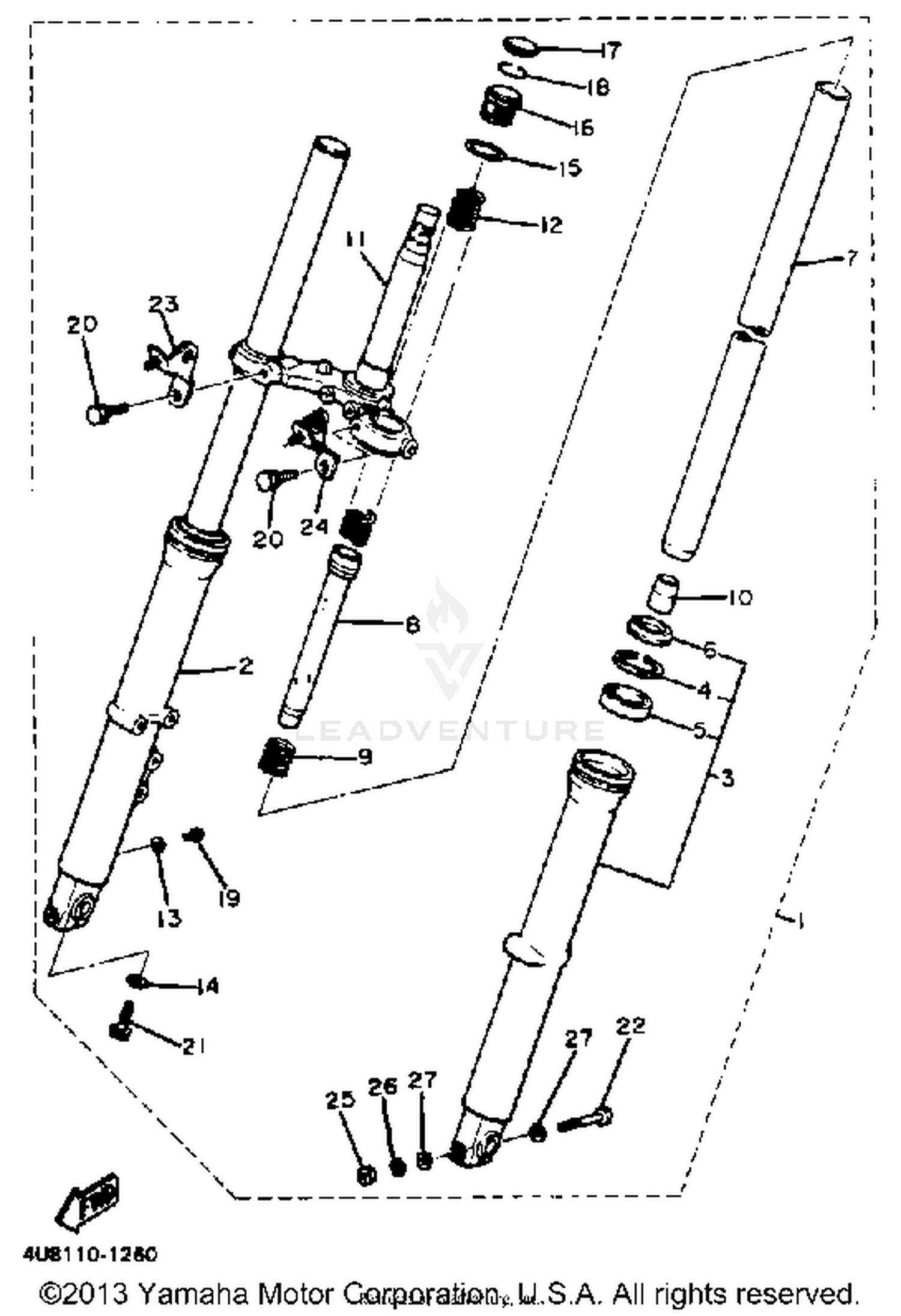

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
4U8-23101-10-00
|
|||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
4U8-23136-00-33
|
$153.46 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 1
4U8-23126-00-33
|
$120.99 | ||
|
Unavailable |
|||
|
#4
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
4G0-23145-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, dust
4G0-23144-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
UNAVAILABLE IN PRICE BOOK
5F8-23100-00-00
|
|||
|
Unavailable |
|||
|
#8
CYLINDER, FRTFRK
5F8-23170-00-00
|
$32.66 | ||
|
Unavailable |
|||
|
#9
SPRING, REBOUND
509-23151-L0-00
|
$16.99 | ||
|
Unavailable |
|||
|
#10
SPINDLE, TAPER
1W1-23173-L0-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
UNDER BRACKET
5F8-23340-00-33
|
$200.99 | ||
|
Unavailable |
|||
|
#12
SPRING, FRONT FORK
4U8-23141-00-00
|
$16.74 | ||
|
Unavailable |
|||
|
#13
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
3J2-23114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CAP
3Y1-23111-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#17
CAP, FRONT FORK
3Y1-23168-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#18
CIRCLIP
3J2-23183-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT 1
4G0-23346-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
4U8-23356-10-00
Superseded by 97017-08060-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, HORN
4G0-23378-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#24
BRACKET, HORN
4G0-23377-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#25
NUT(6TA)
95336-08600-00
Superseded by 95337-08600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92906-08100-00
Superseded by 92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
