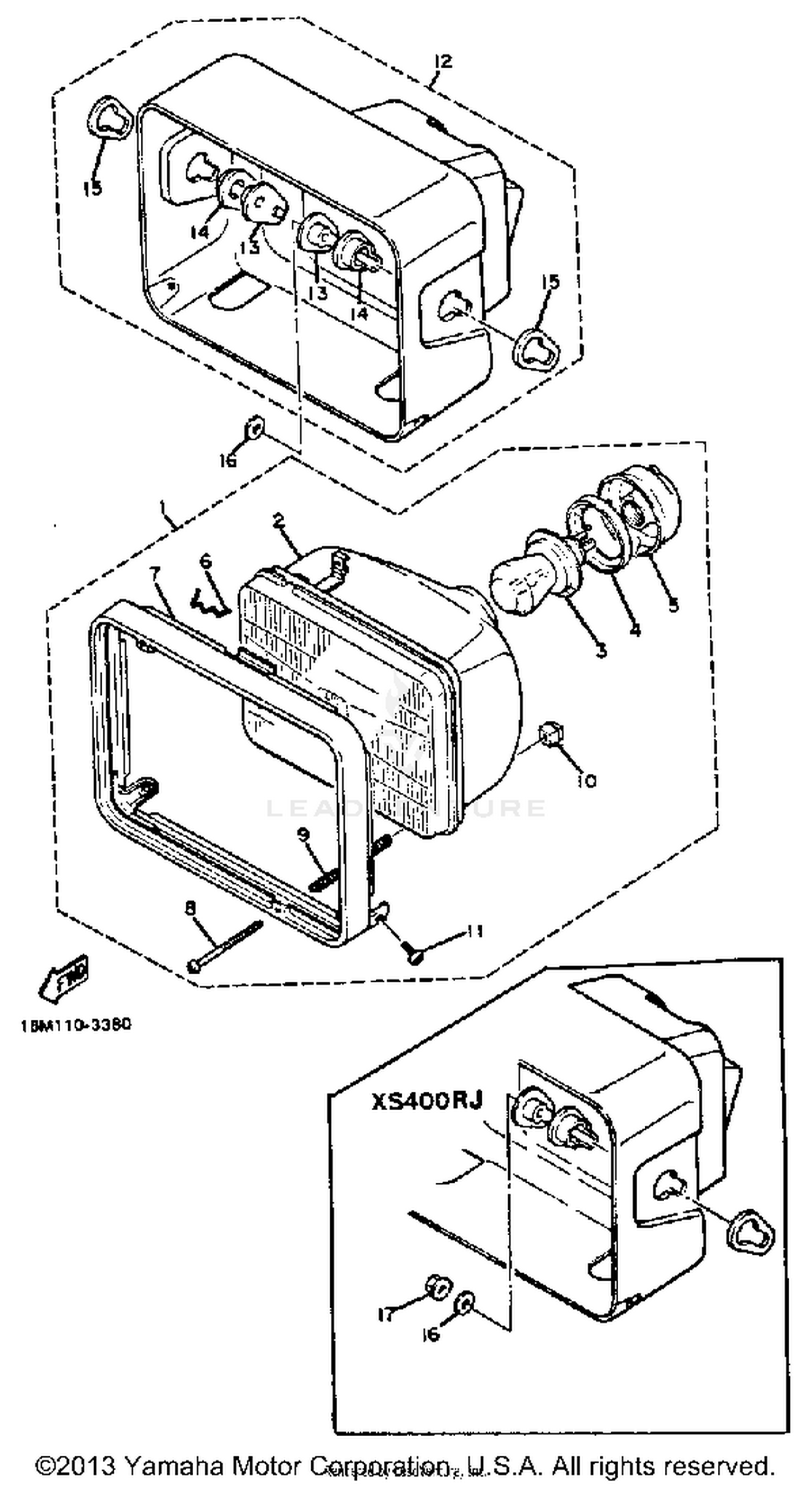

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLIGHT UNIT ASSEMBLY
10L-84303-A0-00
|
$62.99 | ||
|
Unavailable |
|||
|
#2
LENS, HEADLIGHT
11H-84321-60-00
|
$121.99 | ||
|
Unavailable |
|||
|
#3
BULB, HEADLIGHT
11H-84314-00-00
Superseded by 46B-84314-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SETTING PLATE, BULB
2F9-84375-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SOCKET
2F9-84397-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, SET
5G2-84324-A0-00
Superseded by 55X-84124-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RIM, HEADLIGHT
11H-84315-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#8
SCREW, LENS FITTING
98580-04055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, SCREW
341-84332-60-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, ADJUSTING
198-84334-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98516-05012-00
Superseded by 98517-05012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY ASSEMBLY
16M-84330-00-00
|
$135.99 | ||
|
Unavailable |
|||
|
#13
COLLAR 1
16M-84388-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#14
DAMPER, HEADLIGHT 1
16M-84366-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#15
DAMPER 3
16M-84368-00-00
|
$2.85 | ||
|
Unavailable |
|||
|
#16
WASHER, PLAIN
92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE
95701-12500-00
Superseded by 90179-12588-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
