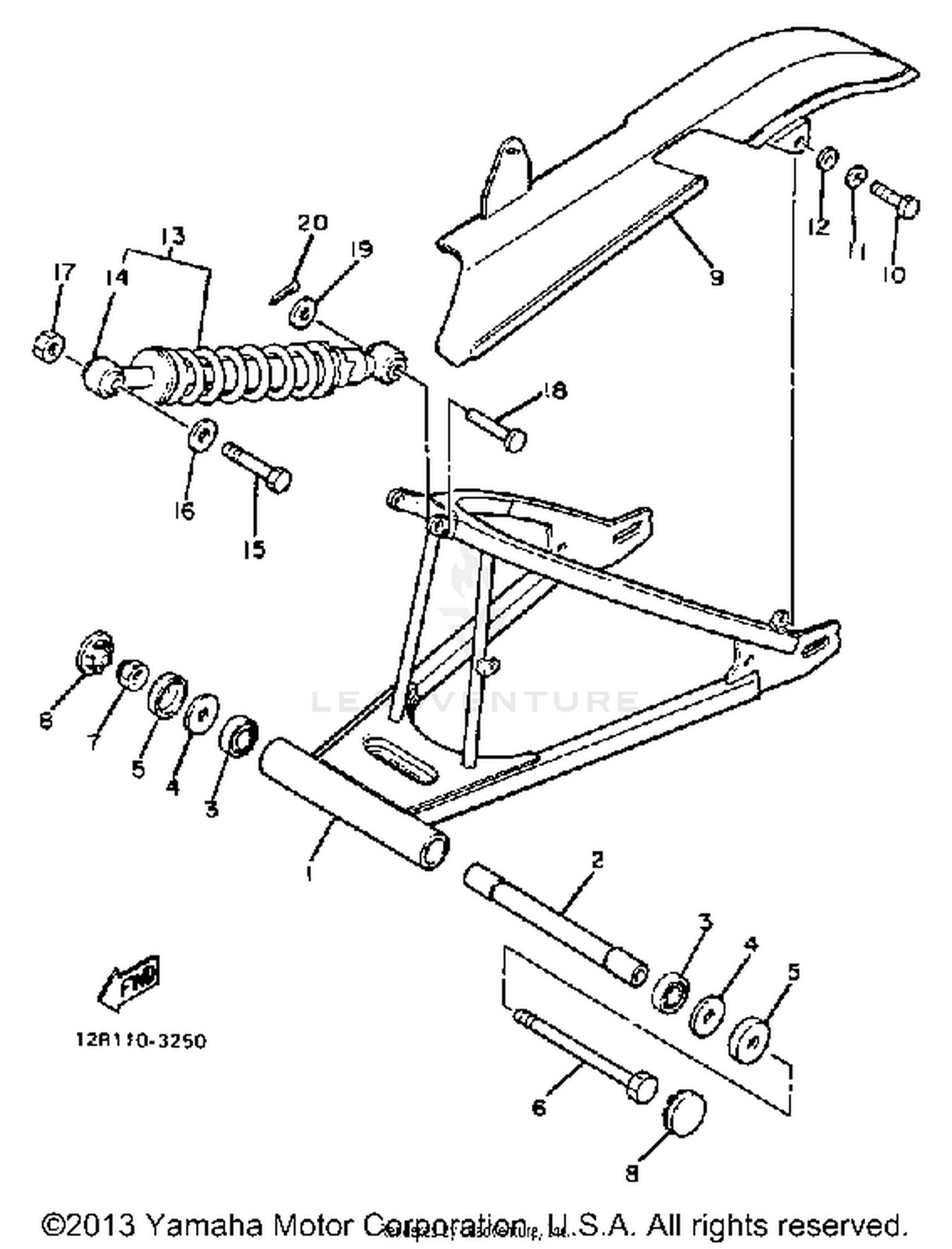

Swing Arm Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
12R-22110-00-35
|
$230.99 | ||
|
Unavailable |
|||
|
#2
BUSH
12R-22184-00-00
|
$95.99 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE
90201-222F4-00
|
$4.40 | ||
|
Unavailable |
|||
|
#
WASHER, PLATE
90201-222F5-00
Superseded by 90201-224L4-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, PLATE
90201-222F6-00
|
$3.75 | ||
|
Unavailable |
|||
|
#5
COVER, THRUST 1
322-22128-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, PIVOT
12R-22141-00-00
Superseded by 1VJ-22141-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-14070-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER
12R-2219X-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#9
BEARING
93317-22204-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CASE, CHAIN
16M-22311-00-00
|
$130.99 | ||
|
Unavailable |
|||
|
#10
BOLT, HEXAGON
97326-06014-00
|
$0.55 | ||
|
Unavailable |
|||
|
#11
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHK/ABS ASSEMBLY, REAR
16M-22210-00-00
|
$250.99 | ||
|
Unavailable |
|||
|
#14
BUSH, REAR SHOCK ABSORBER
1YW-22216-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90109-10654-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-102G9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U
95601-10100-00
Superseded by 95617-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, CLEVIS
90240-12091-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92990-12600-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
