1980 Yamaha XS400S SPECIAL Electrical 2 OEM Parts

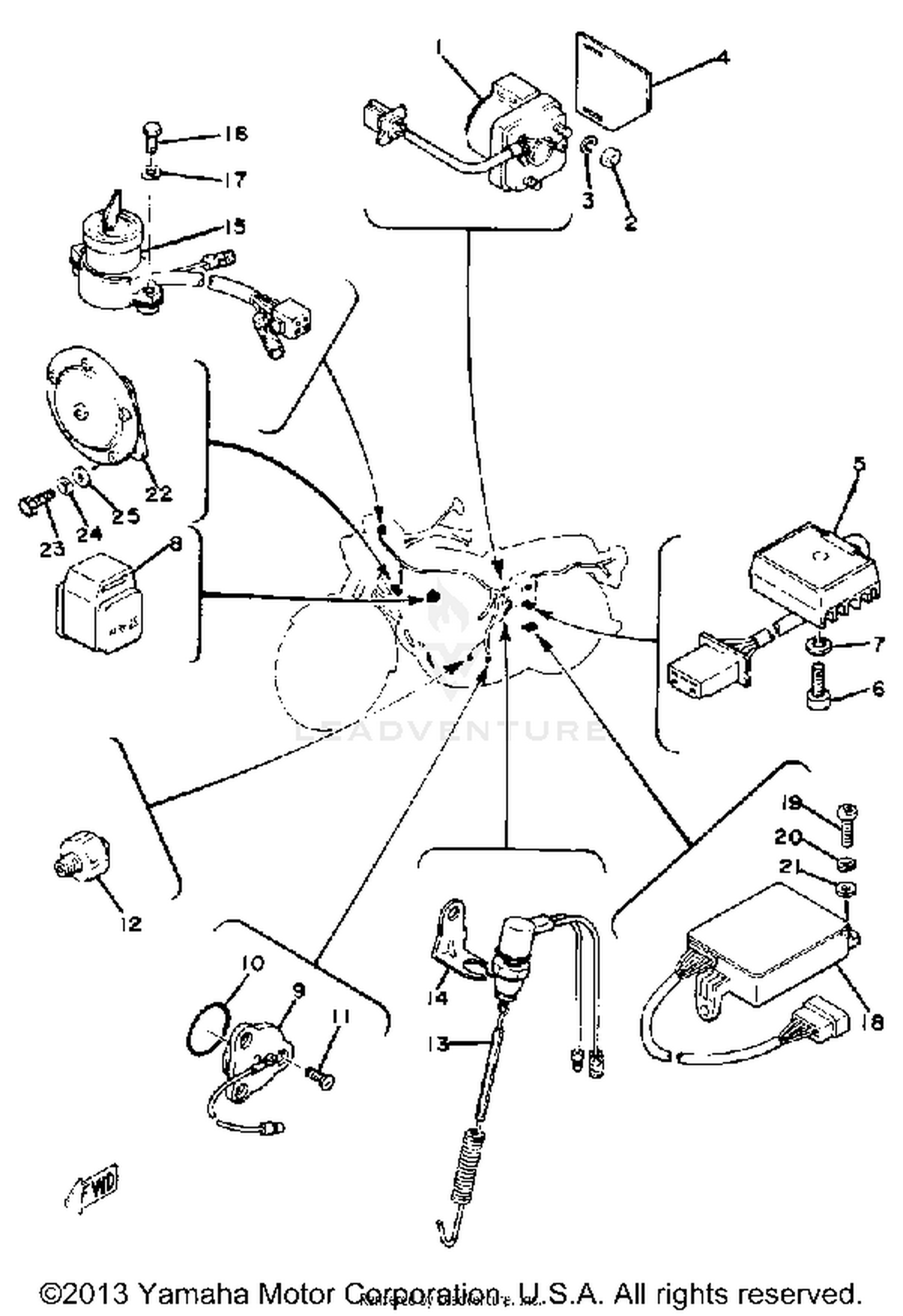

Electrical 2 Diagram

Item	MSRP	Qty
#1 STARTER SWITCH ASSEMBLY 1J7-81940-10-00	$125.99
Unavailable
#2 NUT 95380-06700-00	$7.49
Available to order. Add to View Price
#3 WASHER, SPRING 92995-06100-00	$3.20
Available to order. Add to View Price
#4 COVER, TERMINAL 1L9-81916-00-00	$2.17
Unavailable
#5 RECTIFIER ASSEMBLY 1L9-81970-60-00	$185.99
Unavailable
#6 SCREW, PAN HEAD 98580-06020-00	$7.49
Available to order. Add to View Price
#7 WASHER, SPRING 92995-06100-00	$3.20
Unavailable
#8 RELAY ASSY (3H5-00) 3H5-81950-00-00	$118.99
Unavailable
#9 NEUTRAL SWITCH ASSY 1L9-82540-00-00	$45.99
Available to order. Add to View Price
#10 O-RING 93210-29196-00	$7.49
Available to order. Add to View Price
#11 SCREW, COUNTERSUNK 98701-05012-00 Superseded by 98707-05012-00	$1.60
Available to order. Add to View Price
#12 OIL PRESSURE SWITCH ASSEMBLY 341-82504-02-00	$141.99
Unavailable
#13 STOP SWITCH ASSEMBLY 1L9-82530-02-00	$40.99
Unavailable
#14 STAY, STOP SWITCH 1L9-82539-01-00	$3.57
Unavailable
#15 MAIN SWCH STEER LOCK 3JV-82501-00-00	$225.99
Unavailable
#16 BOLT, HEXAGON DEEP R 97313-06016-00 Superseded by 97D95-06016-00	$2.60
Available to order. Add to View Price
#17 WASHER, PLATE 92901-06600-00 Superseded by 92990-06600-00	$2.60
Available to order. Add to View Price
#18 IGNITOR UNIT ASSY 1 4R4-82305-10-00	$576.99
Unavailable
#19 SCREW, PAN HEAD 98580-06020-00	$7.49
Unavailable
#20 WASHER, SPRING 92995-06100-00	$3.20
Unavailable
#21 WASHER, PLATE 92901-06600-00 Superseded by 92990-06600-00	$2.60
Unavailable
#22 HORN 2L0-83371-20-00	$56.99
Unavailable
#23 BOLT 97013-06012-00	$4.85
Available to order. Add to View Price
#24 WASHER, SPRING 92995-06100-00	$3.20
Unavailable
#25 WASHER, PLATE 92901-06600-00 Superseded by 92990-06600-00	$2.60
Unavailable
