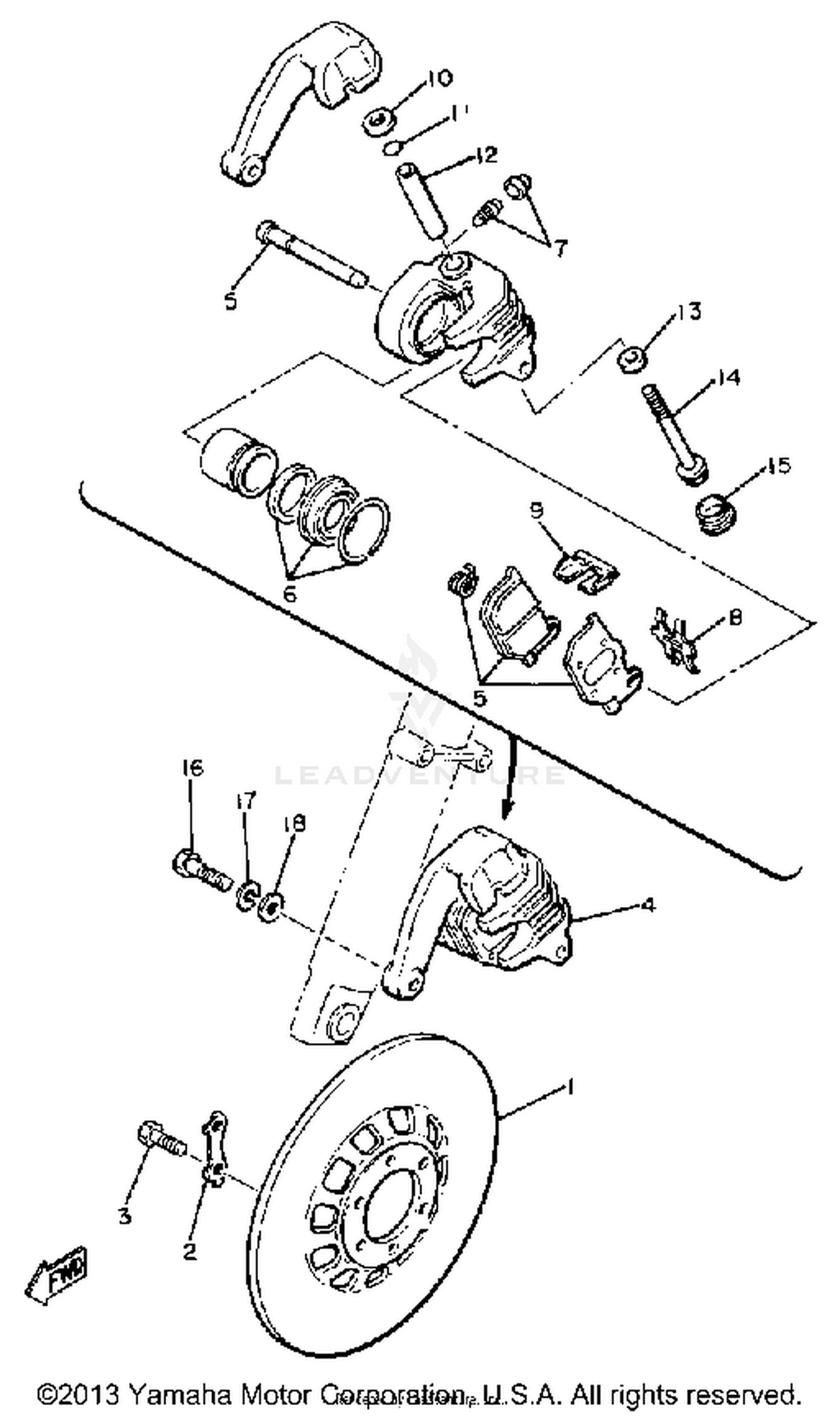

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
1L9-25831-00-00
|
$316.99 | ||
|
Unavailable |
|||
|
#2
WASHER, LOCK
3H5-25834-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#3
BOLT
90101-08477-00
Superseded by 90101-08312-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSEMBLY
3F9-25810-02-00
|
$173.99 | ||
|
Unavailable |
|||
|
#5
BRK PAD KIT
4W1-W0046-00-00
Superseded by 4W1-W0046-09-00
|
$50.99 | ||
|
Unavailable |
|||
|
#6
CALIPER SEAL KIT
2G2-W0047-00-00
Superseded by 2G2-W0047-03-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BLEED SCREW KIT
1J3-W0048-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SUPPORT, PAD
2G2-25919-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#9
RETAINER, CALIPER
2V0-25849-00-00
|
$5.44 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-08689-00
|
$2.10 | ||
|
Unavailable |
|||
|
#11
O-RING KIT, CALIPER
2G2-W0044-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#12
SLEEVE, CALIPER
2G2-25838-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-09690-00
|
$4.75 | ||
|
Unavailable |
|||
|
#14
BOLT 1
2G2-25821-00-00
|
$8.02 | ||
|
Unavailable |
|||
|
#15
PLUG
2G2-25916-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
90105-10638-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
