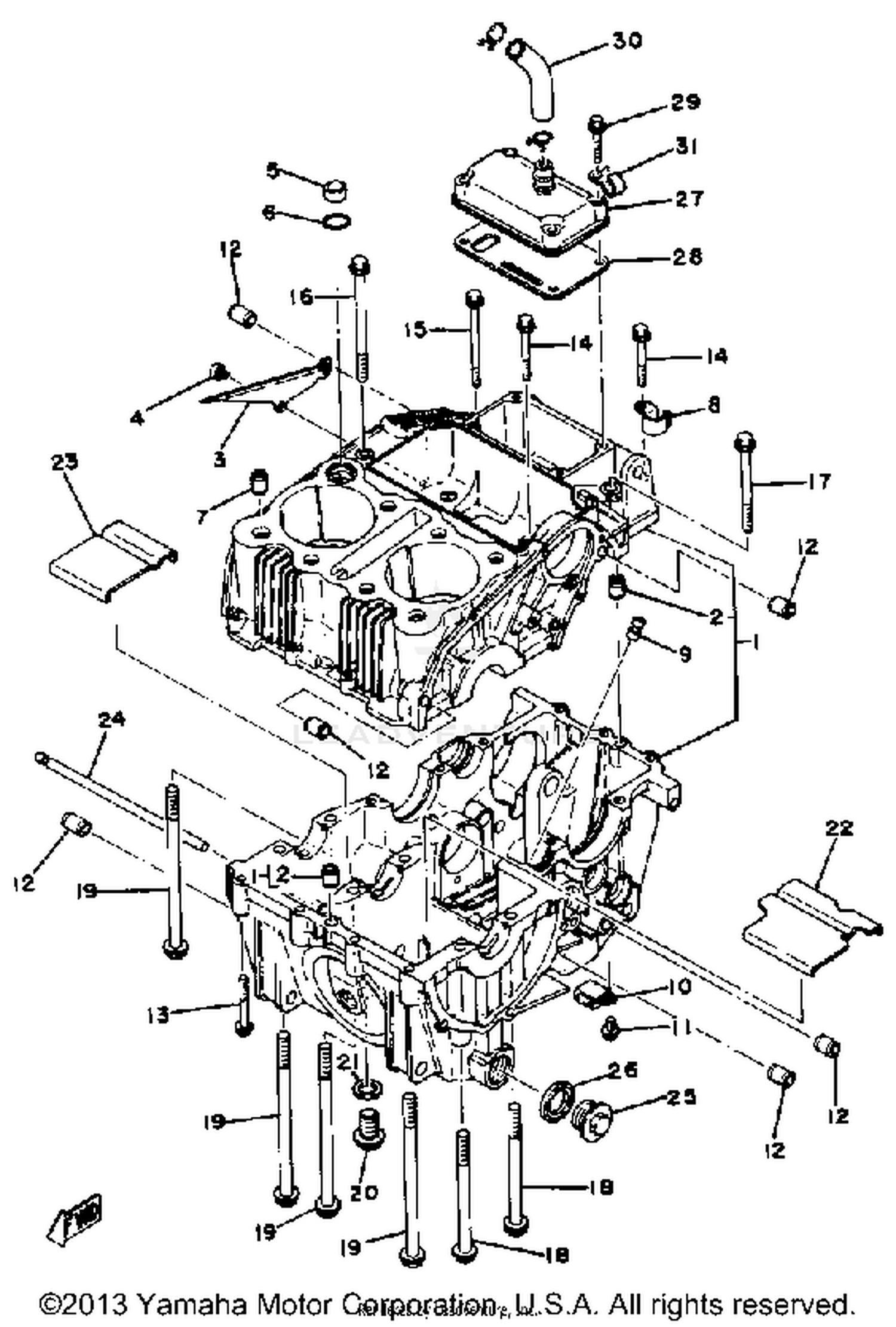

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSEMBLY
4R4-15100-00-00
|
$362.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, OIL PUMP
1L9-15412-00-00
|
$0.43 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-16547-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-18322-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (1L9)
90465-10092-00
|
$1.70 | ||
|
Unavailable |
|||
|
#9
NOZZLE 1
1L9-15138-01-00
|
$2.85 | ||
|
Unavailable |
|||
|
#10
CLAMP
90465-10110-00
|
$1.59 | ||
|
Unavailable |
|||
|
#11
BOLT,WASHER BASED
90105-06069-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE
95811-06045-00
Superseded by 95817-06045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95811-06050-00
Superseded by 95817-06050-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, WASHER BASED
90105-06076-00
|
$1.50 | ||
|
Unavailable |
|||
|
#16
BOLT, WASHER BASED
90105-06077-00
|
$0.62 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
95811-08080-00
Superseded by 95817-08080-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, WASHER BASED
90105-08082-00
|
$3.80 | ||
|
Unavailable |
|||
|
#19
BOLT, WASHER BASED
90105-08084-00
|
$3.80 | ||
|
Unavailable |
|||
|
#20
BOLT (90340-14010)
90109-14385-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
90430-14042-00
Superseded by 90430-14043-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, BUFFLE 1
1L9-15123-00-00
|
$1.38 | ||
|
Unavailable |
|||
|
#23
PLATE, BUFFLE 2
1L9-15124-00-00
|
$0.99 | ||
|
Unavailable |
|||
|
#24
BAR, BFL PLATE FXD
1L9-15122-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#25
PLUG, STRAIGHT SCRW
90340-22047-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
90430-22144-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BREATHER COVER ASSEMBLY
1L9-11108-00-00
|
$13.14 | ||
|
Unavailable |
|||
|
#28
GASKET, BRTHR COVER
1L9-11169-00-00
|
$2.85 | ||
|
Unavailable |
|||
|
#29
BOLT,FLANGE
95811-06030-00
Superseded by 95817-06030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE, BREATHER 1
2L0-11166-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#31
CLAMP
90465-08111-00
|
$0.70 | ||
|
Unavailable |
|||
