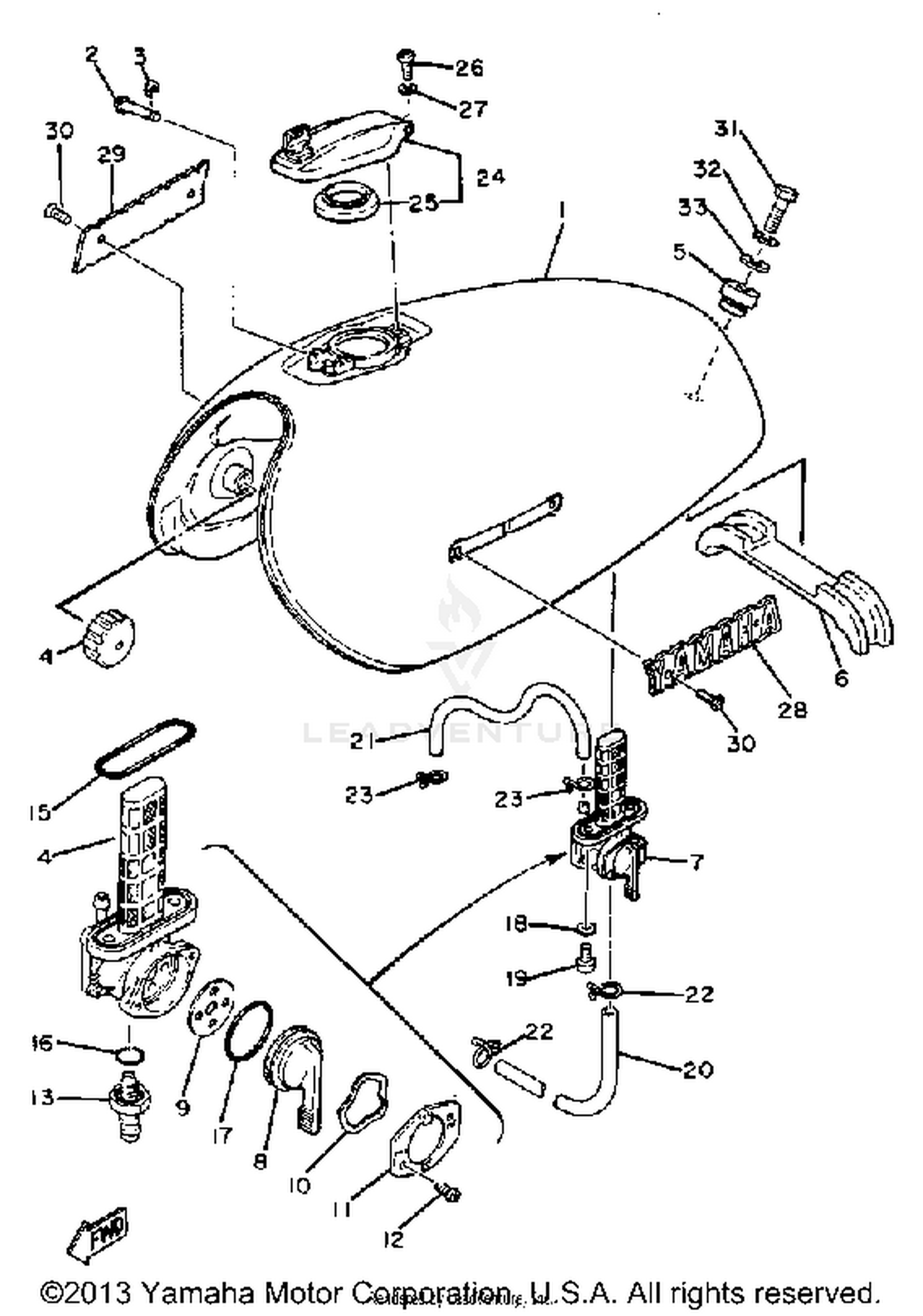

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
2L0-24110-00-H9
|
$286.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
2L0-24110-00-7J
|
$262.99 | ||
|
Unavailable |
|||
|
#2
PIN, SPECIAL SHAPE
90249-03123-00
|
$3.85 | ||
|
Unavailable |
|||
|
#3
CIRCLIP
93430-02001-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 1
1L9-24181-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 2
2L0-24182-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#6
DAMPER, LOCATING 3
2L0-24183-00-00
|
$9.28 | ||
|
Unavailable |
|||
|
#7
FUEL PETCOCK ASSY 1
3X8-24500-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#8
LEVER, COCK
3X8-24524-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#9
VALVE
16G-24523-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, WAVE
16G-24518-00-00
|
$3.45 | ||
|
Unavailable |
|||
|
#11
PLATE, LVR FITTING
2G2-24525-00-00
|
$4.56 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, JOINT
2L0-24551-00-00
|
$10.54 | ||
|
Unavailable |
|||
|
#14
NET, FILTER 1
3Y1-24514-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
2G2-24512-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
2L0-24522-00-00
|
$5.00 | ||
|
Unavailable |
|||
|
#17
SEAL, COCK
2G2-24534-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, SPECIAL SHAPE
90149-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE
90445-10133-00
Superseded by 90445-10144-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE (L685)
90445-09496-00
Superseded by 90445-090G9-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAP ASSY
4R0-24602-01-00
|
$101.99 | ||
|
Unavailable |
|||
|
#25
GASKET, CAP 1
2M0-24641-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#28
EMBLEM 1
3Y6-24161-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#29
EMBLEM 2
3Y6-24162-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, COUNTERSUNK
90152-04006-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER PLATE
90201-085E6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
