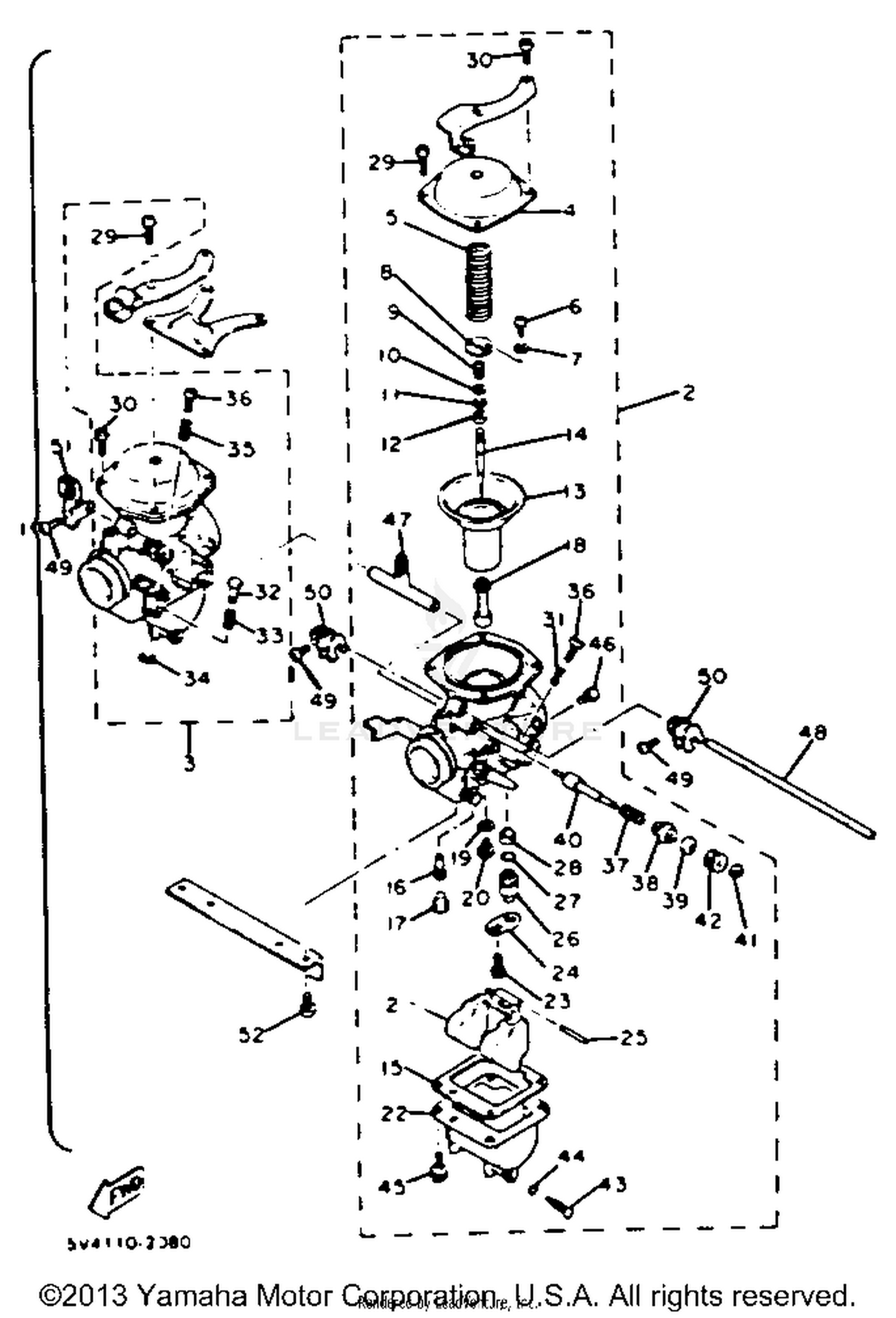

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
5V4-14900-00-00
|
|||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 1
5V4-14901-00-00
|
$321.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 2
5V4-14902-00-00
|
$305.99 | ||
|
Unavailable |
|||
|
#4
COVER, DIAPHRAGM
3H5-14958-01-00
|
$19.50 | ||
|
Unavailable |
|||
|
#5
SPRING, DIAPHRAGM
3G1-14933-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#6
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT, SPRING
3F7-14936-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING
3F7-14589-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE (7Y2)
3F7-14952-00-00
Superseded by 90201-037F2-00
|
$1.80 | ||
|
Unavailable |
|||
|
#11
CLIP
256-14919-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING
3F7-14918-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM ASSEMBLY
3H5-14940-00-00
Superseded by 3F7-14940-00-00
|
$302.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NEEDLE
2H7-14116-12-00
|
$13.76 | ||
|
Unavailable |
|||
|
#15
GASKET, FLOAT CHAMBER
3F7-14984-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
JET, PILOT #42.5
256-14142-42-A0
|
$8.99 | ||
|
Unavailable |
|||
|
#17
PLUG, SCREW
3F7-14991-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NOZZLE, MAIN
2F3-14941-90-00
|
$51.99 | ||
|
Unavailable |
|||
|
#19
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET, MAIN #132.5
620-14231-99-A0
|
$6.49 | ||
|
Unavailable |
|||
|
#21
FLOAT
3H5-14985-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BODY, FLOAT CHAMBER
4H3-14981-06-00
|
$35.99 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE
2H0-14146-00-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NEEDLE VALVE SET
25G-14107-20-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
8F2-14147-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#28
NET, FILTER
1J7-14994-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, THRTL STOP
5V4-14934-00-00
|
$5.24 | ||
|
Unavailable |
|||
|
#32
ROD, PUSH
584-14992-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPRING, THROTTLE STOP
584-14934-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#34
CLIP
256-14937-00-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING, THROTTLE STOP
3F7-14133-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, THROTTLE
5V4-14922-00-00
|
$4.35 | ||
|
Unavailable |
|||
|
#37
SPRING, PLUNGER
5V4-14135-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#38
CAP, PLUNGER
3F7-14174-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#39
COVER, PLUNGER CAP
3F7-14173-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#40
PLUNGER, STARTER
5V4-14171-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#41
CLIP
737-14137-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
RING
5V4-14918-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#43
PLUG, DRAIN
4H4-14191-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#44
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
SCREW, PAN HEAD
98506-05014-00
Superseded by 98507-05014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
JET, MAIN (#135)
3G2-14231-27-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIPE, STARTER CON
3G1-14988-00-00
|
$32.51 | ||
|
Unavailable |
|||
|
#48
SHAFT, STARTER LVR
5V4-14977-00-00
|
$17.16 | ||
|
Unavailable |
|||
|
#49
SCREW
5U5-14991-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#50
LEVER, STARTER
5V5-14905-00-00
|
$9.08 | ||
|
Unavailable |
|||
|
#51
LEVER, STARTER
5V4-14905-00-00
|
$6.04 | ||
|
Unavailable |
|||
|
#52
SCREW, PAN HEAD
97806-06014-00
|
$0.89 | ||
|
Unavailable |
|||
