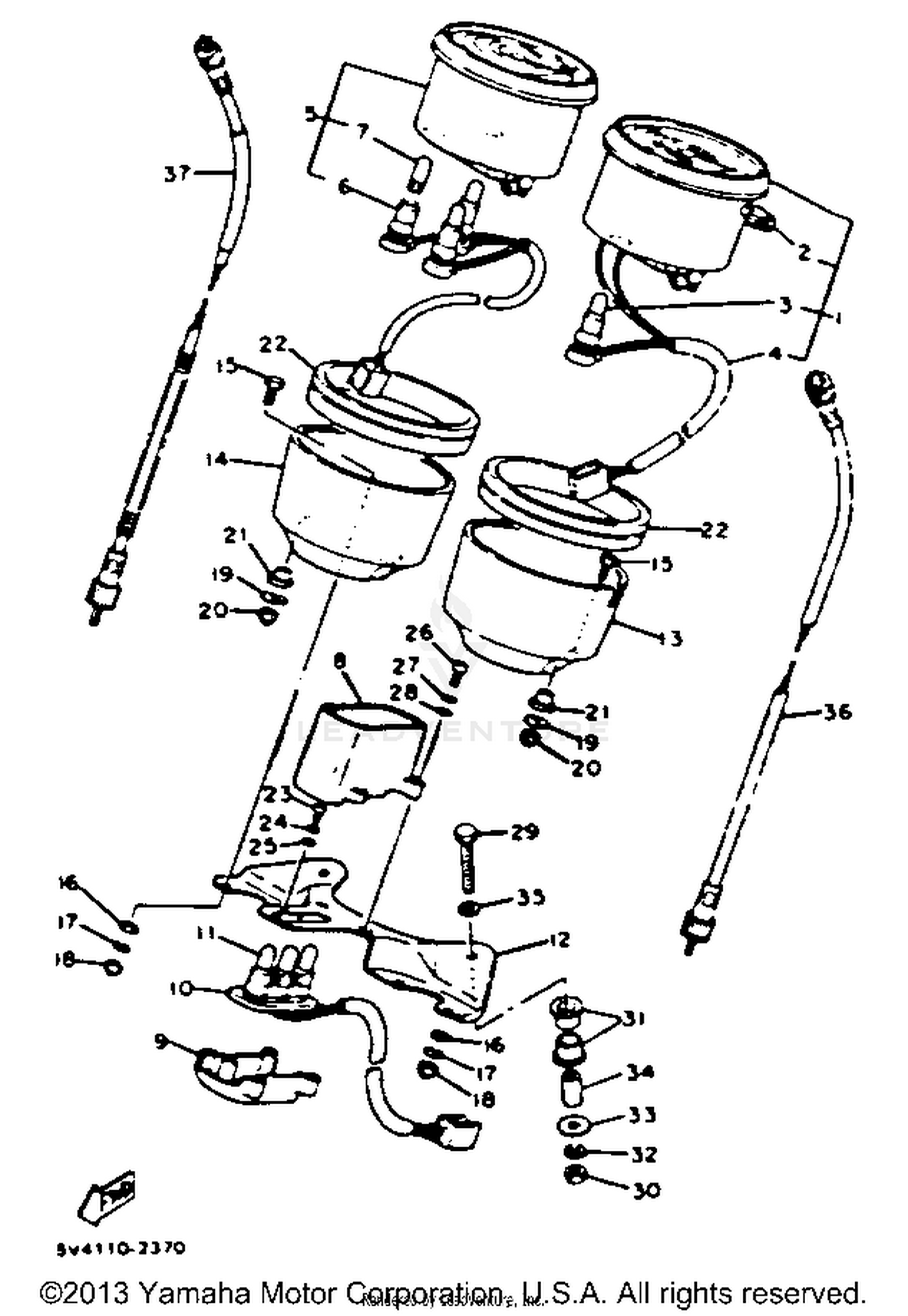

1983 Yamaha XS650SK HERITGE SPECIAL SPEEDOMETER-TACHOMETER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
5H1-83570-A0-00
|
$257.99 | ||
|
Unavailable |
|||
|
#2
KNOB, TRIP METER
584-83578-71-00
Superseded by 4SV-83578-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET CORD ASSEMBLY
10M-83520-20-00
|
$42.99 | ||
|
Unavailable |
|||
|
#5
TACHOMETER ASSEMBLY
3X4-83540-00-00
|
$240.99 | ||
|
Unavailable |
|||
|
#6
SOCKET CORD ASSEMBLY
10M-83509-10-00
|
$12.99 | ||
|
Unavailable |
|||
|
#7
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Unavailable |
|||
|
#8
PILOT BOX, UPPER
3G1-83568-A0-00
|
$37.99 | ||
|
Unavailable |
|||
|
#9
PILOT BOX, LOWER
2G2-83569-A0-00
|
$11.99 | ||
|
Unavailable |
|||
|
#10
SOCKET CORD ASSEMBLY
3G1-83509-01-00
|
$31.04 | ||
|
Unavailable |
|||
|
#11
BULB (12V-3.4W T10)
4G1-84744-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Unavailable |
|||
|
#12
BRACKET, METER
2M0-83519-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#13
COVER, SPEEDOMETER
2J2-83507-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, TACHOMETER
2J2-83508-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
584-83546-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN
92990-06200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-05031-00
Superseded by 90201-05725-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT (CROWN)
95303-05800-00
|
$1.30 | ||
|
Unavailable |
|||
|
#21
DAMPER
584-83523-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER
3H3-83513-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92990-03100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW,PANHEAD
98506-04012-00
Superseded by 98517-04012-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92906-04100-00
Superseded by 92907-04100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
92906-04600-00
Superseded by 92907-04600-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
97006-06040-00
Superseded by 97017-06040-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER
584-83541-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#33
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-06249-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#36
SPDMTR, CABLE
34X-83550-01-00
Superseded by 16M-83550-01-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
TACHOMETER CABLE
447-83560-01-00
|
$45.99 | ||
|
Unavailable |
|||
