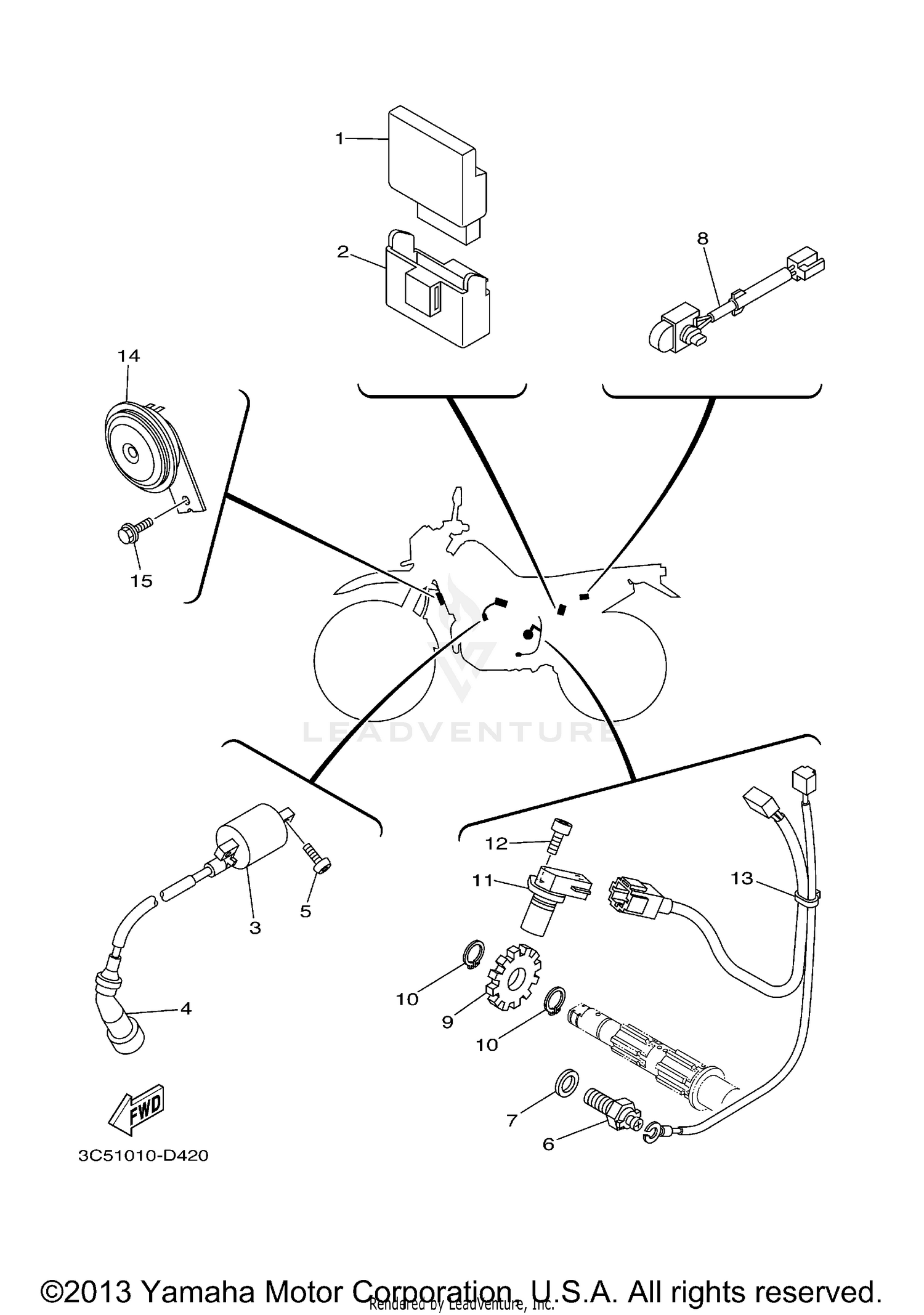

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
3C5-85540-10-00
|
$346.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND
5XT-85546-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
3NS-82310-10-00
Superseded by 3KJ-82310-13-00
|
$45.99 | ||
|
Unavailable |
|||
|
#4
PLUG CAP ASSY
3NS-82370-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEX. SOCKET BUTTON
90111-06017-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEUTRAL SWITCH ASSY
4KM-82540-00-00
Superseded by 4GY-82540-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
THERMO SWITCH ASSY
5XT-82560-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROTOR
3C5-8354W-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#10
CIRCLIP
99009-17400-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR, SPEED
1S4-83755-01-00
|
$162.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRE, SUB LEAD
3C5-82309-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#14
HORN
3C5-83371-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
