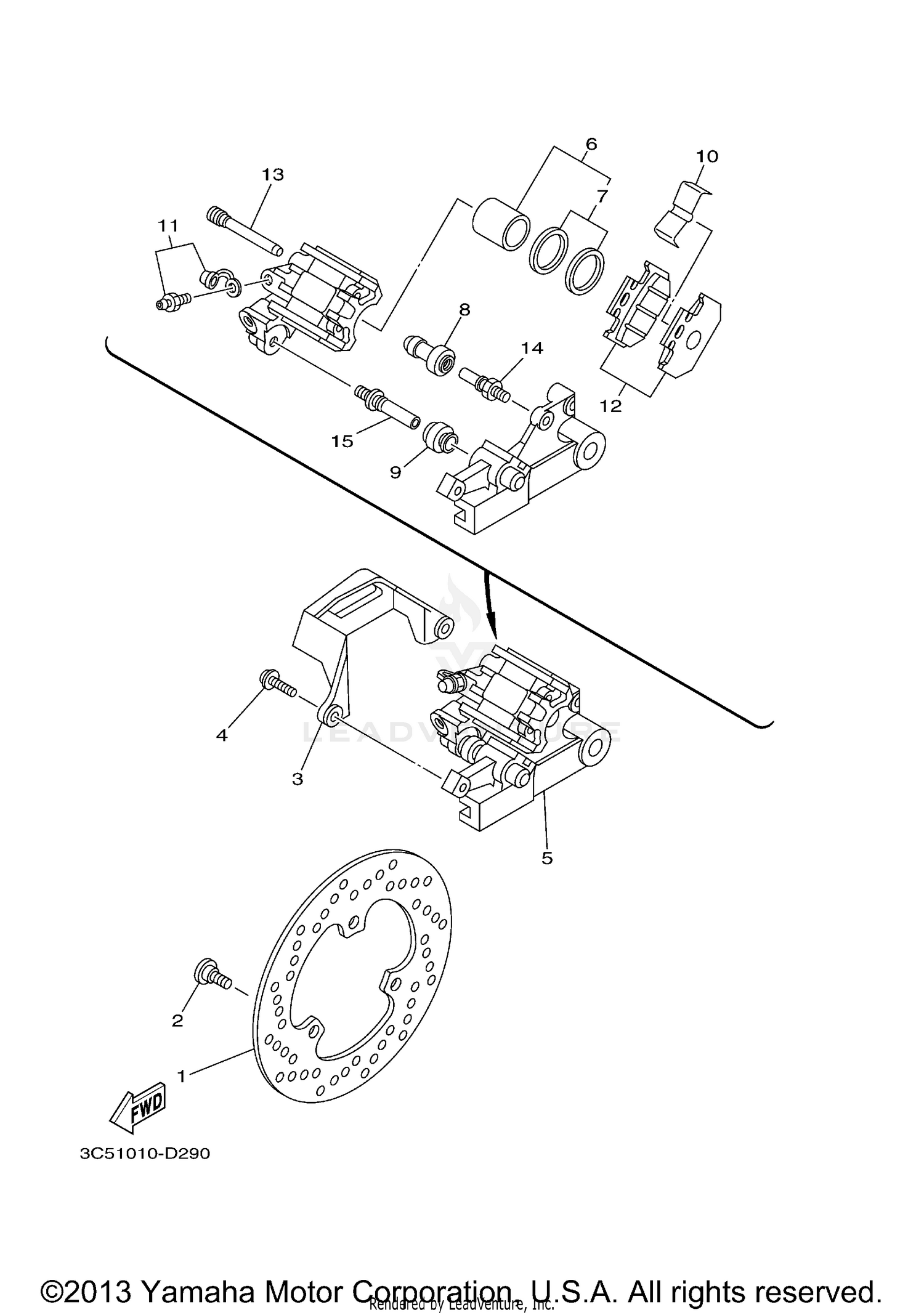

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, REAR BRAKE 2
5XT-2582W-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
90149-08268-00
Superseded by 90109-08087-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR
4GY-27491-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, BUTTON HEAD
92014-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER ASSY, REAR 2
3C5-2580W-01-00
Superseded by 3C5-2580W-10-00
|
$316.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON ASSY, CALIPER
5XT-W0057-50-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
3JD-W0047-51-00
Superseded by 3JD-25803-50-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT 2
1UY-25937-51-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOOT, CALIPER
3JD-25917-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SUPPORT, PAD
3SP-25919-51-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLEED SCREW KIT
1UY-W0048-50-00
Superseded by 36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRAKE PAD KIT 2
5XT-W0046-50-00
Superseded by 3C5-25806-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, PAD
3SP-25924-51-00
Superseded by 3FV-25924-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, SLIDE
3SP-25914-51-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
3SP-25926-51-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
