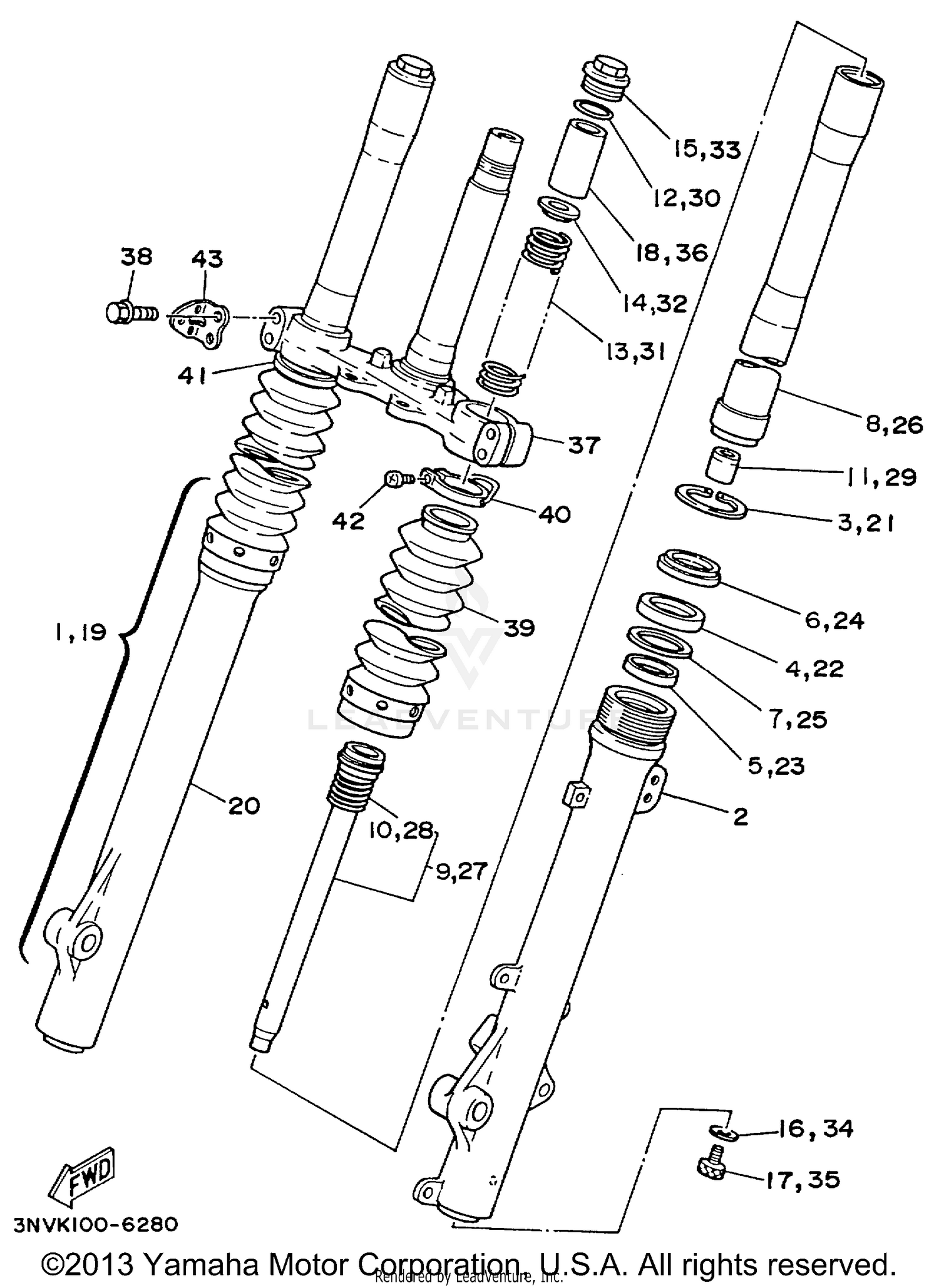

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY (L.H)
55V-23102-A1-00
|
$346.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER (LEFT)
48Y-23126-01-00
|
$310.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
48Y-23145-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
30X-23125-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
48Y-23144-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING UPPER
5K5-23149-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
INNER TUBE COMP.1
30X-23110-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#9
CYLINDER COMP., FRONT FORK
55V-23170-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#10
SPRING, REBOUND
2X1-23151-00-00
Superseded by 2X7-23151-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#11
SPINDLE, TAPER
3R6-23173-L0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
1W1-23114-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FRONT FORK
30X-23141-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING UPPER
4FY-23149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP
53Y-23111-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#16
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER
4V5-23118-L1-00
|
$12.99 | ||
|
Unavailable |
|||
|
#19
FRONT FORK ASSEMBLY (R.H)
55V-23103-A1-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, OUTER (RIGHT)
48Y-23136-01-00
|
$344.99 | ||
|
Unavailable |
|||
|
#21
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
48Y-23145-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#23
METAL, SLIDE 1
30X-23125-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#24
SEAL, DUST
48Y-23144-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING UPPER
5K5-23149-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
INNER TUBE COMP.1
30X-23110-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#27
CYLINDER COMP., FRONT FORK
55V-23170-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#28
SPRING, REBOUND
2X1-23151-00-00
Superseded by 2X7-23151-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#29
SPINDLE, TAPER
3R6-23173-L0-00
|
$16.49 | ||
|
Unavailable |
|||
|
#30
GASKET
1W1-23114-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#31
SPRING, FRONT FORK
30X-23141-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING UPPER
4FY-23149-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#33
BOLT, CAP
53Y-23111-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#34
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#35
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
SPACER
4V5-23118-L1-00
|
$12.99 | ||
|
Unavailable |
|||
|
#37
UNDER BRACKET COMP.
55V-23340-00-00
|
$412.99 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE
95021-08040-00
Superseded by 95024-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOOT
3YT-23191-30-00
|
$81.99 | ||
|
Unavailable |
|||
|
#40
BAND
48Y-23192-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#41
BAND, BOOT
341-92090-60-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, BOOT BAND
1W4-23194-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BRACKET, REFLECTOR 1
49R-85112-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
