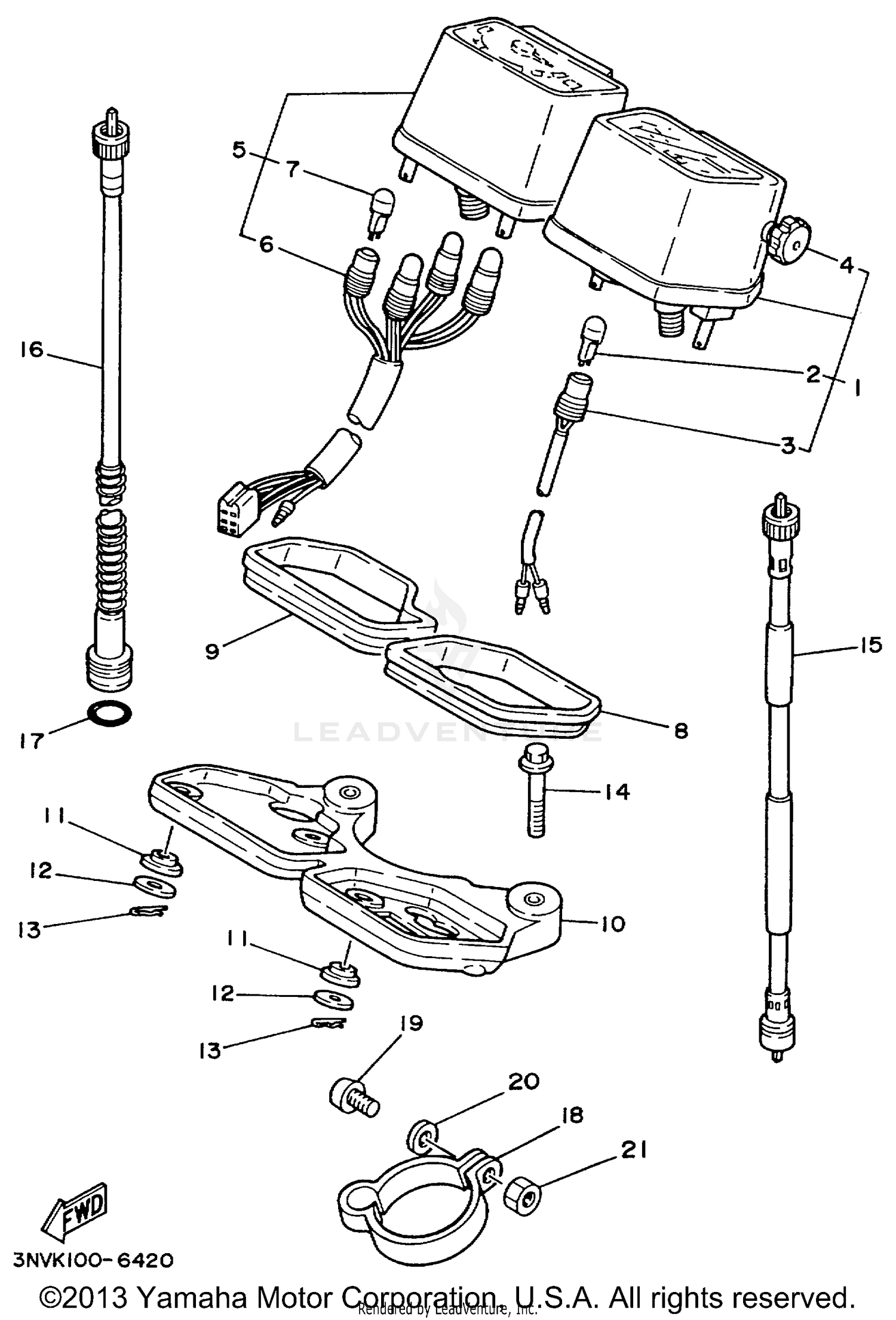

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
43F-83570-G0-00
Superseded by 43F-83570-G1-00
|
$436.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-3.4W T10)
4R0-83517-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
SOCKET CORD ASSY
5Y1-83536-00-00
Superseded by 5E2-83509-20-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
KNOB, TRIP METER
5Y1-83578-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
TACHOMETER ASSEMBLY
55V-83540-00-00
Superseded by 1ET-83540-00-00
|
$390.99 | ||
|
Unavailable |
|||
|
#6
SOCKET CORD ASSEMBLY (30X-835
30X-83520-00-00
Superseded by 5Y1-83520-00-00
|
$74.99 | ||
|
Unavailable |
|||
|
#7
BULB (12V-3.4W T10)
4R0-83517-00-00
Superseded by 4G1-84744-00-XX
|
$4.80 | ||
|
Unavailable |
|||
|
#8
DAMPER
5Y1-83513-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER
5Y1-83541-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, METER
5Y1-83519-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER 2
1M1-83526-00-00
Superseded by 1M1-83526-01-00
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-05033-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
437-83525-00-00
Superseded by 90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95807-06040-00
Superseded by 95817-06040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPEEDOMETER CABLE AS
48Y-83550-02-00
Superseded by 48Y-83550-03-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
TACHOMETER CABLE ASS
30X-83560-00-00
Superseded by 30X-83560-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND
3Y1-26397-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98507-05016-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92907-05600-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
95307-05600-00
Superseded by 95317-05600-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
