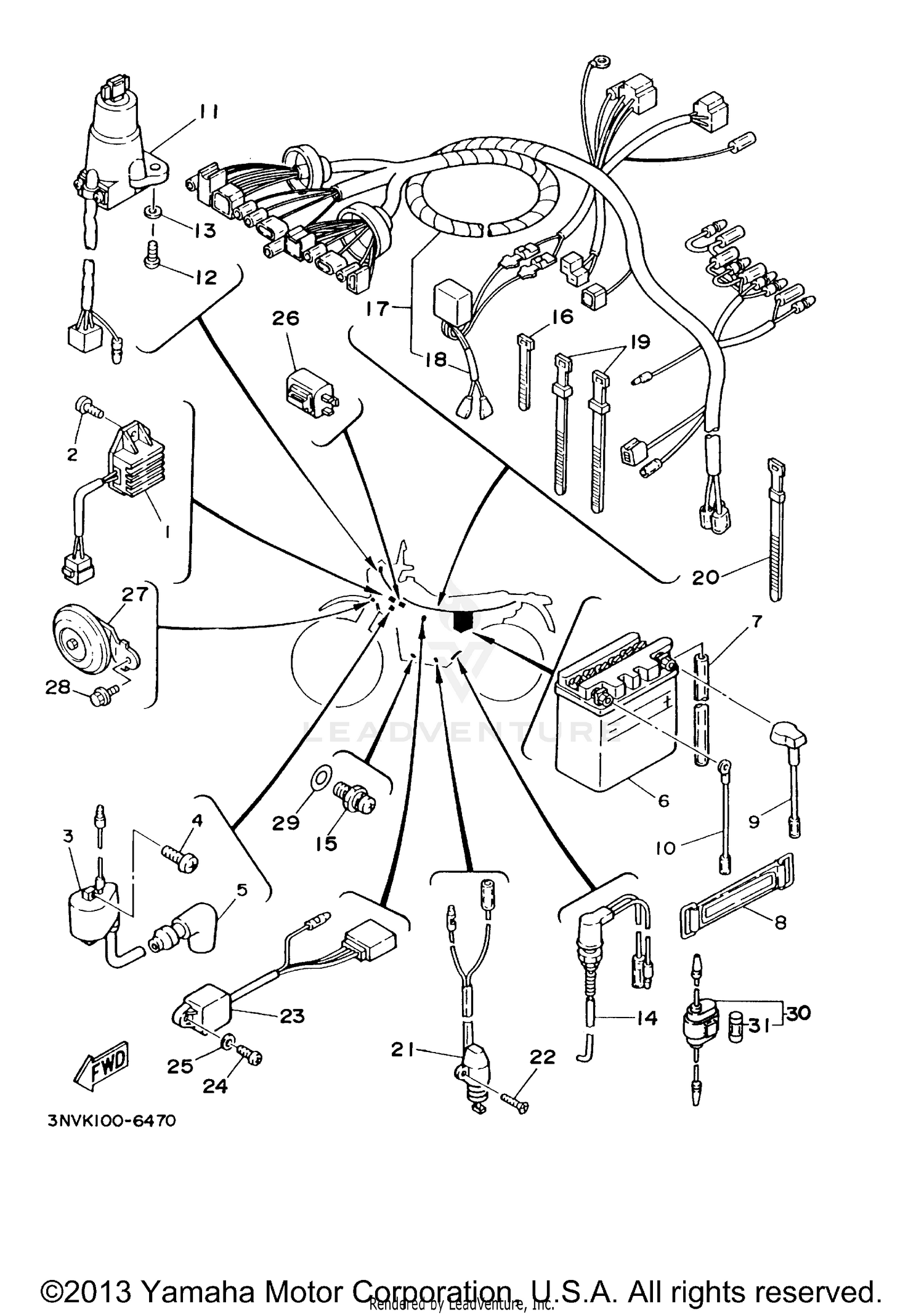

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER & REGULATOR ASSEMBLY
33G-81960-60-00
|
$240.99 | ||
|
Available to order. Add to View Price |
|||
|
#
RECTIFIER & REGULATOR ASSEMBLY
55V-81960-90-00
Superseded by 33G-81960-60-00
|
$240.99 | ||
|
Unavailable |
|||
|
#2
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
IGNITION COIL ASSY
20N-82310-40-00
Superseded by 3SR-82310-10-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG CAP ASSY
371-82370-00-00
Superseded by 4VW-82370-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CB3LB GS BATTERY
30W-82110-01-00
Superseded by CB3-LB000-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#7
PIPE
90445-08336-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, BATTERY
34M-82131-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WIRE, PLUS LEAD
1M1-82115-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WIRE, MINUS LEAD
558-82116-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
MAIN SWITCH STEERING LOCK
2GK-82501-01-00
|
$215.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
90149-06228-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
STOP SWITCH ASSEMBLY
30X-82530-02-00
|
$25.99 | ||
|
Unavailable |
|||
|
#15
NEUTRAL SWITCH ASSY
4KM-82540-00-00
Superseded by 4GY-82540-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND
12R-82591-00-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
WIRE HARNESS ASSEMBLY
2GK-82590-00-00
|
$251.99 | ||
|
Unavailable |
|||
|
#18
CONDENSER 1
57T-81325-00-00
|
$61.68 | ||
|
Unavailable |
|||
|
#19
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAND, SWITCH CORD
25G-83936-01-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH, SIDE STAND
5Y1-82566-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, FLAT HEAD
90152-05021-00
Superseded by 98707-05016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CONTROL UNIT ASSEMBLY
4Y3-85590-M0-00
|
$93.48 | ||
|
Unavailable |
|||
|
#24
SCREW,PAN HEAD
98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#26
FLASHER RELAY ASSY
30X-83350-20-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
HORN
30X-83371-20-00
|
$55.99 | ||
|
Unavailable |
|||
|
#28
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
FUSE HOLDER ASSY
116-82150-01-00
Superseded by 55K-82150-02-00
|
$13.99 | ||
|
Unavailable |
|||
|
#31
FUSE (10A)
116-82181-00-00
|
|||
|
Unavailable |
|||
