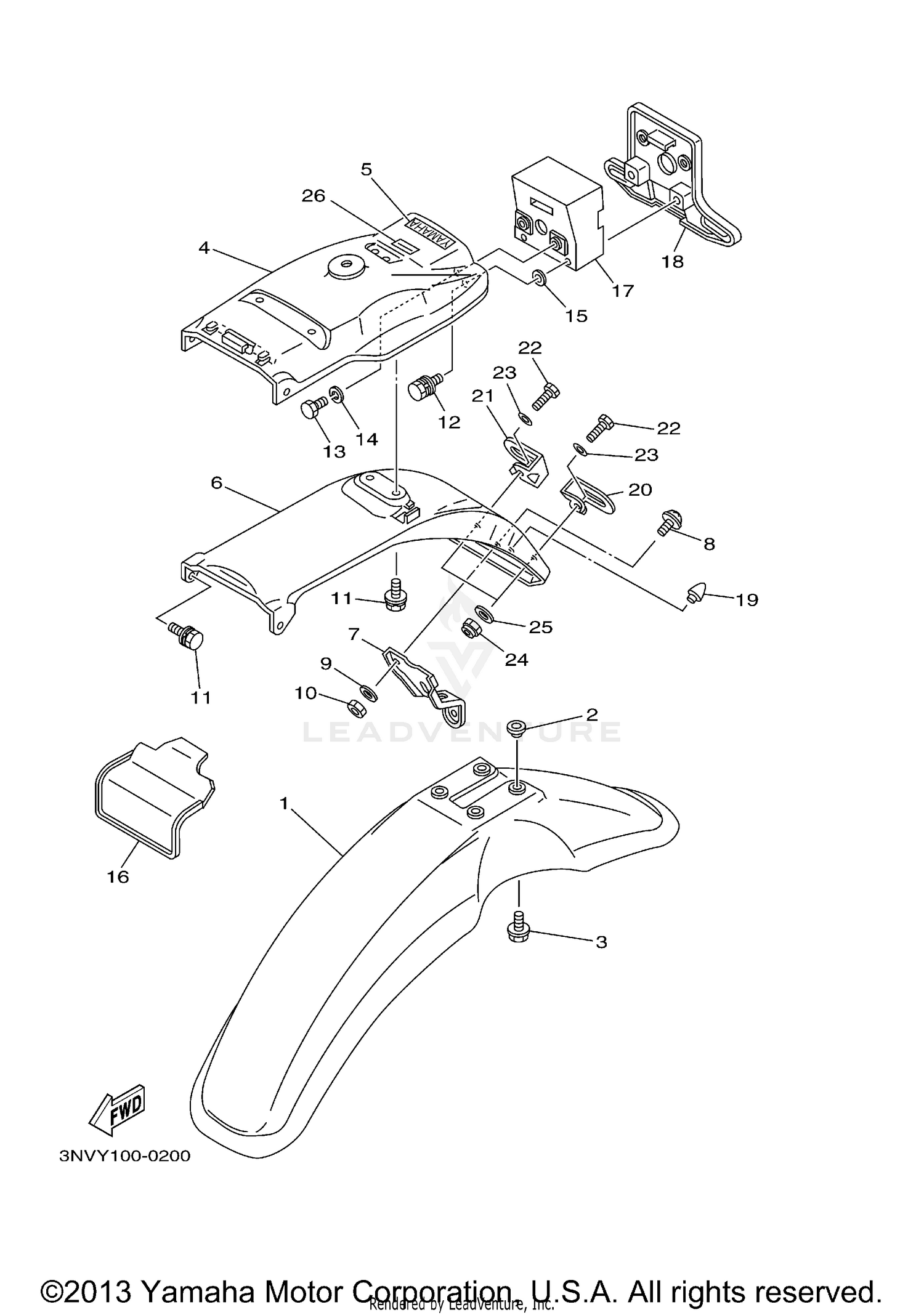

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
30X-21511-30-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-06681-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-06063-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER, REAR
42U-21611-10-00
|
$68.99 | ||
|
Unavailable |
|||
|
#5
EMBLEM, YAMAHA
3WF-2153E-70-00
Superseded by 3WF-2153E-71-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, LICENSE
42U-21685-00-00
|
$71.23 | ||
|
Unavailable |
|||
|
#7
BRACKET, REFLECTOR
42U-21641-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#8
SCREW, WITH WASHER
90159-06033-00
Superseded by 90159-06060-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WITH WASHER
90119-06063-00
|
$8.49 | ||
|
Unavailable |
|||
|
#12
BOLT, WITH WASHER
90119-06063-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
BOLT
97007-06045-00
Superseded by 97017-06045-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-06778-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUARD, MUD
30X-21629-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#17
COVER, REAR FENDER 1
21T-2163A-00-00
|
$56.99 | ||
|
Unavailable |
|||
|
#18
BRACKET, LICENSE
21T-21685-20-00
|
$34.99 | ||
|
Unavailable |
|||
|
#19
DAMPER 2
42U-21639-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, REAR STAY
42U-21688-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#21
BRACKET, REAR STAY 2
42U-21689-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#22
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#24
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER PLAIN
90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
LABEL 1
3MX-24875-A0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
