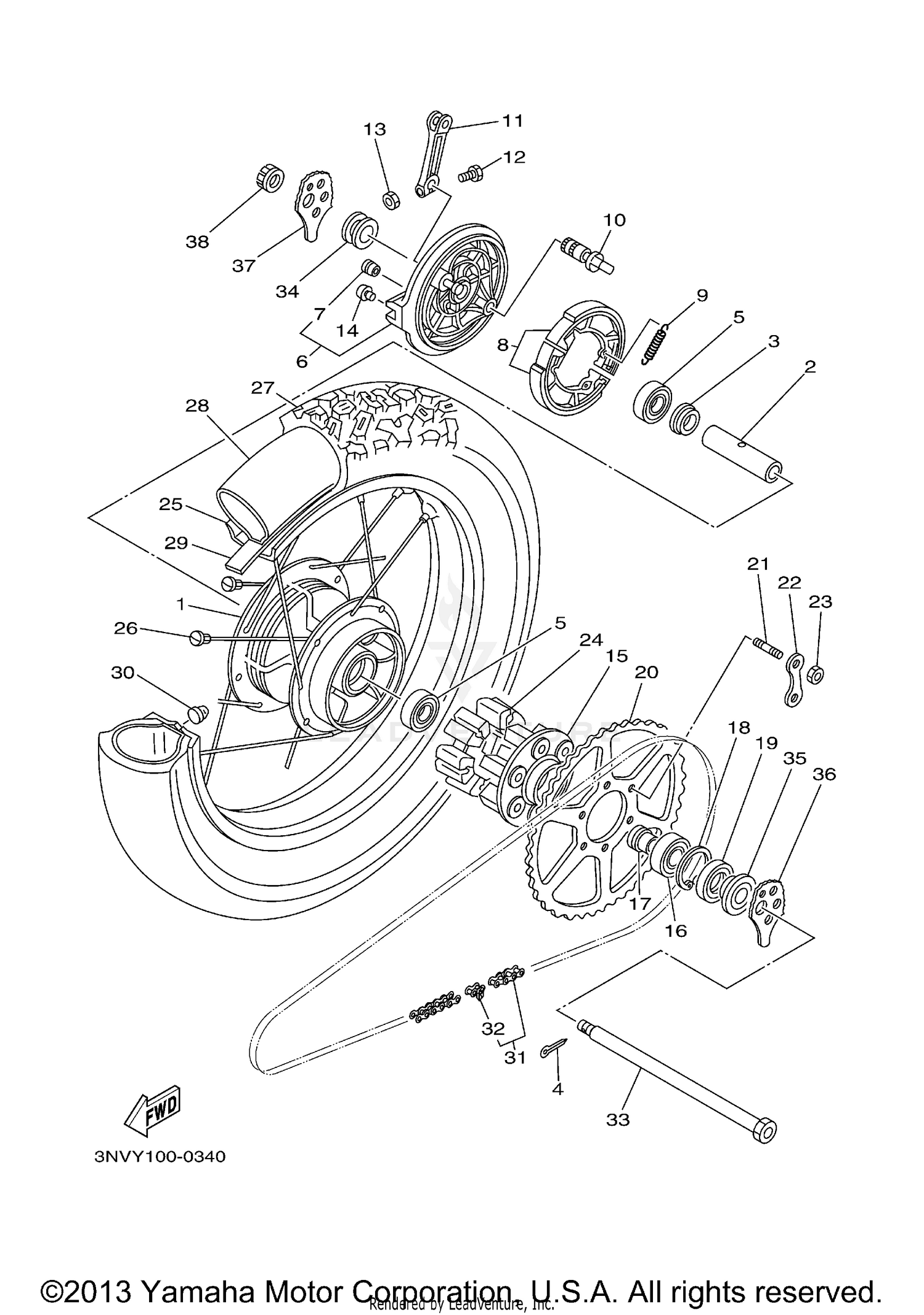

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
3Y1-25311-00-98
|
$361.18 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-17311-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER
146-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRAKE SHOE PLATE ASSEMBLY
3Y1-25026-00-98
|
$197.99 | ||
|
Unavailable |
|||
|
#7
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE SHOE KIT
3LS-W2536-00-00
Superseded by 3LS-W253E-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-15260-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAMSHAFT
538-25351-01-00
Superseded by 4GL-25351-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, CAMSHAFT
3R6-25355-01-00
|
$32.99 | ||
|
Unavailable |
|||
|
#12
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-10068-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
CLUTCH, HUB
3Y1-25366-00-98
|
$110.99 | ||
|
Unavailable |
|||
|
#16
BEARING
93306-20446-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR, WHEEL
3Y1-25377-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
99009-47500-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL
93102-28022-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPROCKET, DRIVEN (55T)
55V-25455-50-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, STUD
90116-08425-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, LOCK
90215-08160-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90170-08258-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER
3Y1-25364-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIM (2.15-18)
94421-18418-00
|
$372.99 | ||
|
Unavailable |
|||
|
#26
SPOKE SET, REAR
4Y0-25304-00-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
TIRE (110/80-18-58P)
94111-182G9-00
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
TUBE (110-140/80-100-18 M/C)
94237-18120-00
Superseded by 94212-18188-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BAND, RIM (2.50-18)
94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GROMMET
90480-08608-00
Superseded by 90480-10068-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
CHAIN (D.I.D.428VS-130L)
94581-61130-00
Superseded by 94580-78130-00
|
$253.99 | ||
|
Unavailable |
|||
|
#32
JOINT, CHAIN (DID428VS-FJ)
94681-61011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
AXLE, WHEEL
4KM-25181-00-00
Superseded by 4KM-25181-10-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-17141-00
Superseded by 90387-170X9-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR, WHEEL
3Y1-25383-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PULLER, CHAIN 1
3Y1-25388-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PULLER, CHAIN 2
3Y1-25389-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, CASTLE
90171-16024-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
