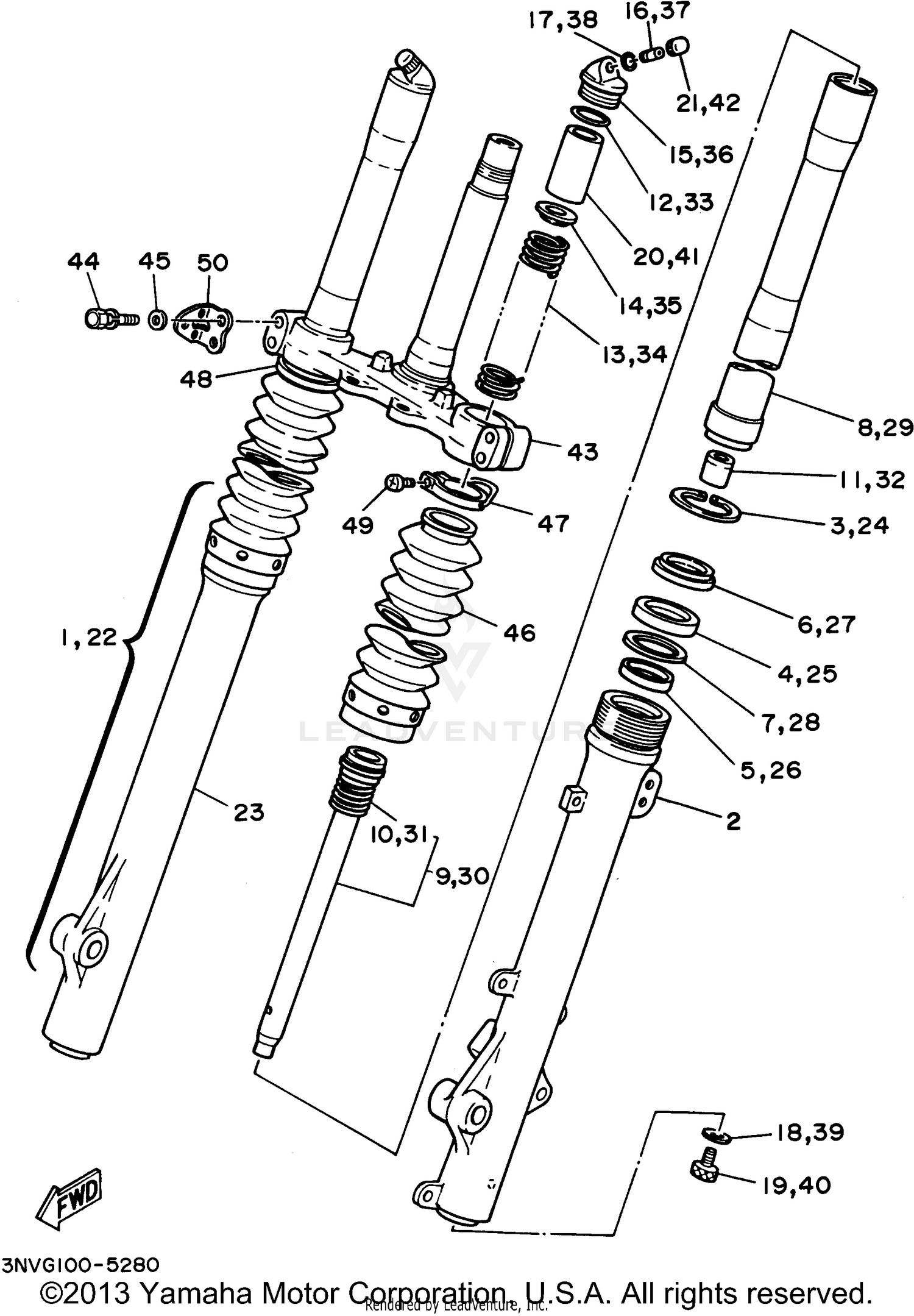

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY (L.H)
55V-23102-00-00
|
$500.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (LEFT)
48Y-23126-00-00
|
$346.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
48Y-23145-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
30X-23125-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, DUST
48Y-23144-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING UPPER
5K5-23149-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
INNER TUBE COMP.1
30X-23110-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#9
CYLINDER COMP., FRONT FORK
55V-23170-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#10
SPRING, REBOUND
2X7-23151-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#11
SPINDLE, TAPER
39K-23173-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#12
GASKET
1W1-23114-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FRONT FORK
30X-23141-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#14
WASHER, SPRING UPPER
4FY-23149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP
33M-23111-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#16
AIR VALVE
4V4-23190-L0-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
3J2-23147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER
4V5-23118-L1-00
|
$12.99 | ||
|
Unavailable |
|||
|
#21
CAP, AIR VALVE
509-23184-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
FRONT FORK ASSEMBLY (RH)
55V-23103-00-00
|
$518.99 | ||
|
Unavailable |
|||
|
#23
TUBE, OUTER (RIGHT)
48Y-23136-00-00
|
$328.99 | ||
|
Unavailable |
|||
|
#24
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
OIL SEAL
48Y-23145-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#26
METAL, SLIDE 1
30X-23125-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#27
SEAL, DUST
48Y-23144-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#28
WASHER, SPRING UPPER
5K5-23149-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#29
INNER TUBE COMP.1
30X-23110-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#30
CYLINDER COMP., FRONT FORK
55V-23170-00-00
|
$83.99 | ||
|
Unavailable |
|||
|
#31
SPRING, REBOUND
2X7-23151-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#32
SPINDLE, TAPER
39K-23173-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#33
GASKET
1W1-23114-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#34
SPRING, FRONT FORK
30X-23141-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#35
WASHER, SPRING UPPER
4FY-23149-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#36
BOLT, CAP
33M-23111-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#37
AIR VALVE
4V4-23190-L0-00
|
$56.99 | ||
|
Unavailable |
|||
|
#38
O-RING
3J2-23147-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#39
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#40
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#41
SPACER
4V5-23118-L1-00
|
$12.99 | ||
|
Unavailable |
|||
|
#42
CAP, AIR VALVE
509-23184-L0-00
|
$6.49 | ||
|
Unavailable |
|||
|
#43
UNDER BRACKET COMP.
55V-23340-00-00
|
$412.99 | ||
|
Unavailable |
|||
|
#44
BOLT, AXLE HOLDER
5X6-23128-L0-00
|
$13.99 | ||
|
Unavailable |
|||
|
#45
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOOT
3YT-23191-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#47
BAND
48Y-23192-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#48
BAND, BOOT
341-92090-60-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
SCREW, BOOT BAND
1W4-23194-L0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
BRACKET, REFLECTOR 1
49R-85112-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
