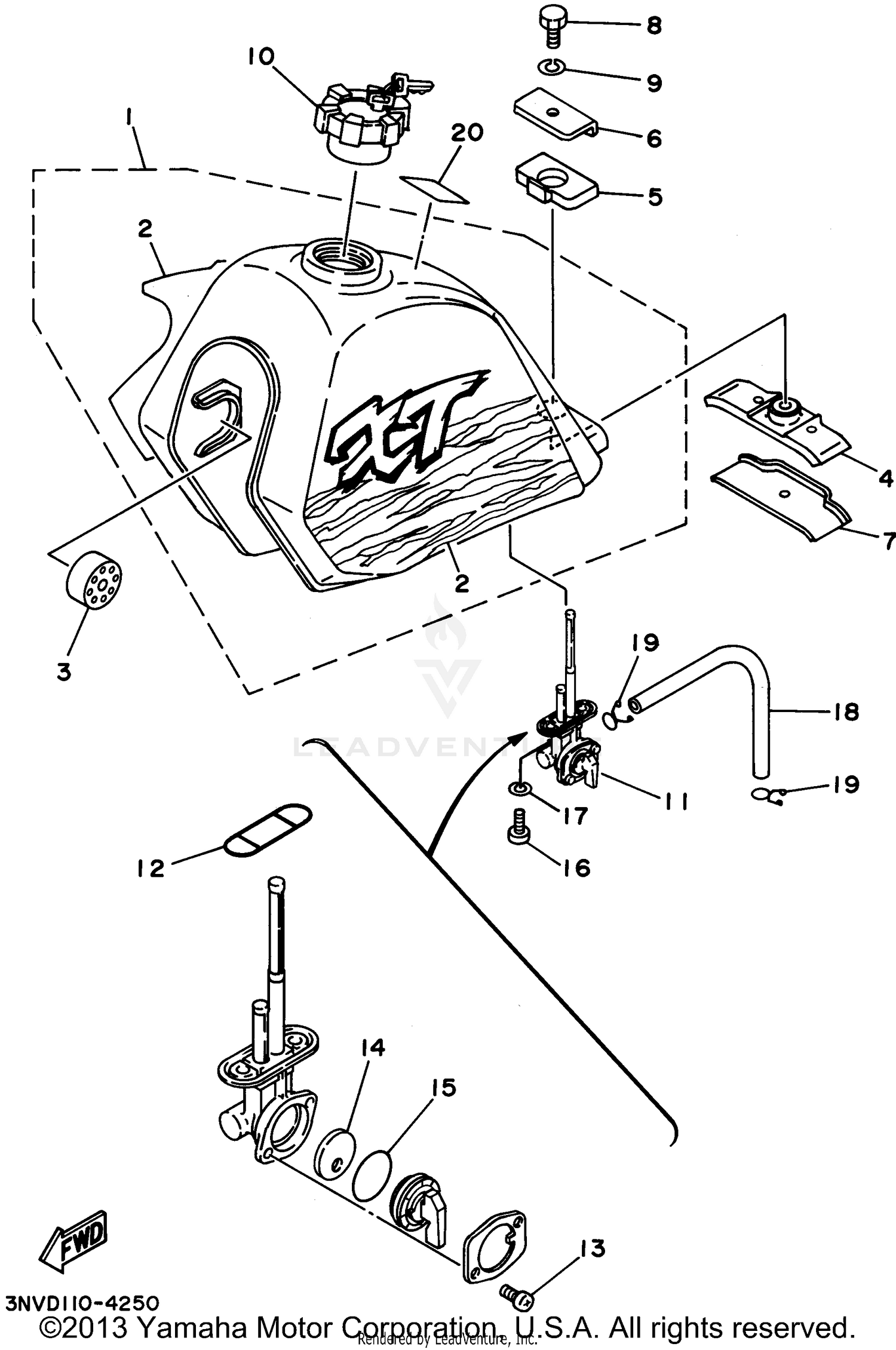

1995 Yamaha XT 350 FUEL TANK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
30X-24110-01-W8
|
$731.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC
3NV-24240-20-00
|
$207.99 | ||
|
Unavailable |
|||
|
#3
DAMPER, LOCATING 1
4L0-24181-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 2
30X-24182-01-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER, LOCATING 3
30X-24183-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPECIAL
30X-24186-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPECIAL
30X-24187-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92907-06100-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP ASSY
48Y-24602-00-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUEL COCK ASSY 1
23F-24500-01-00
Superseded by 23F-24500-20-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98580-03008-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90202-05187-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE (L110)
90445-10008-00
Superseded by 90445-10752-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
LABEL, CAUTION
3MX-2118K-00-00
|
$7.49 | ||
|
Unavailable |
|||
