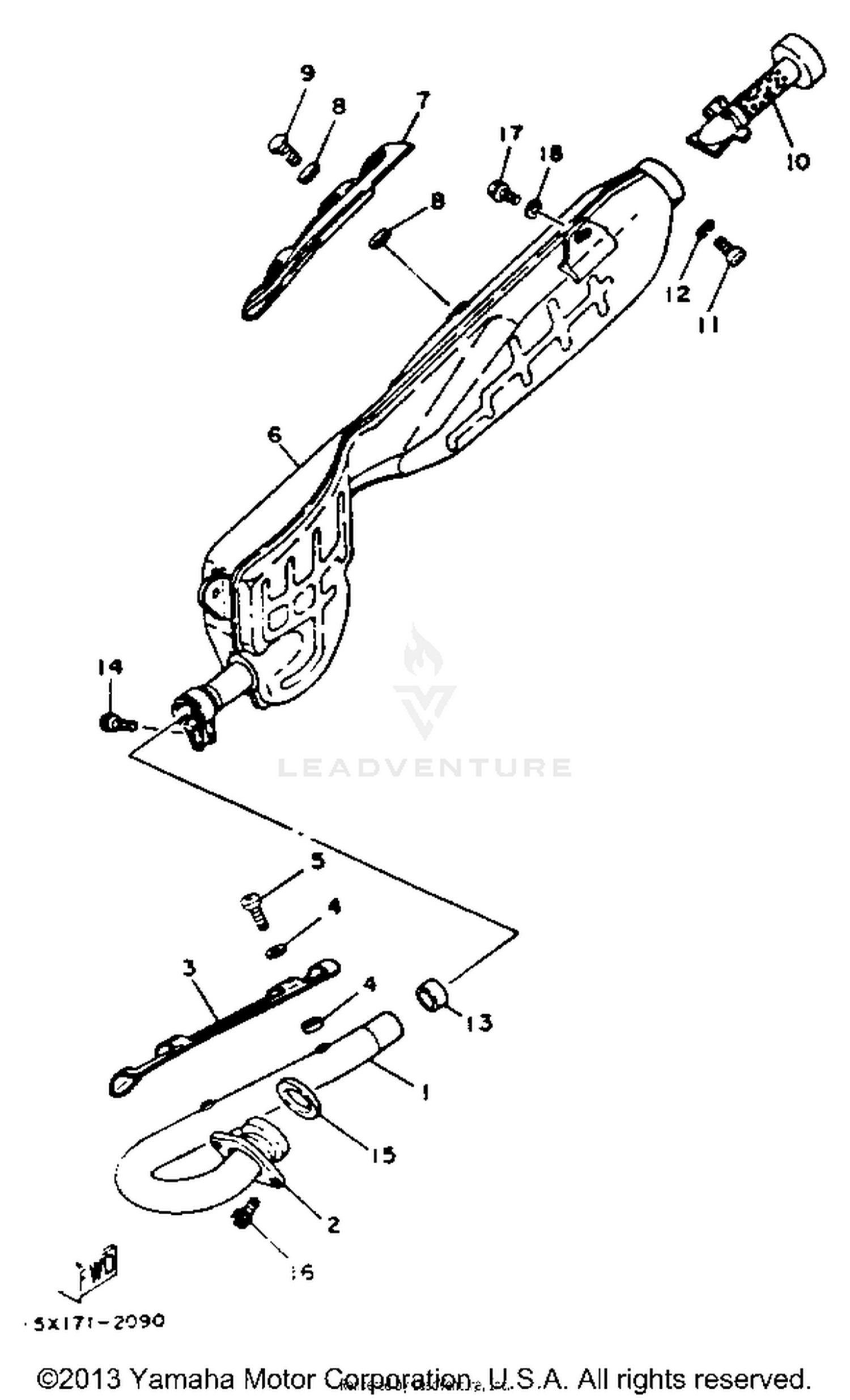

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST L
15A-14611-60-00
|
$101.99 | ||
|
Unavailable |
|||
|
#2
NUT, RING
5H0-14612-00-00
Superseded by 5H0-14612-01-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PROTECTOR, EXHAUST PIPE
15A-14628-00-00
|
$54.99 | ||
|
Unavailable |
|||
|
#4
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, BIND
98906-06008-00
Superseded by 98907-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
MUFFLER L
15A-14711-00-00
|
$309.99 | ||
|
Unavailable |
|||
|
#7
PROTECTER, MUFFLER 2
15A-14728-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#8
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Unavailable |
|||
|
#9
SCREW, BIND
98906-06008-00
Superseded by 98907-06008-00
|
$7.49 | ||
|
Unavailable |
|||
|
#10
PIPE, OUTLET
15E-14752-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, MUFFLER
4H7-14714-00-00
Superseded by 4DN-14714-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
91316-08020-00
Superseded by 91317-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, EXHAUST PIPE
4BE-14613-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
