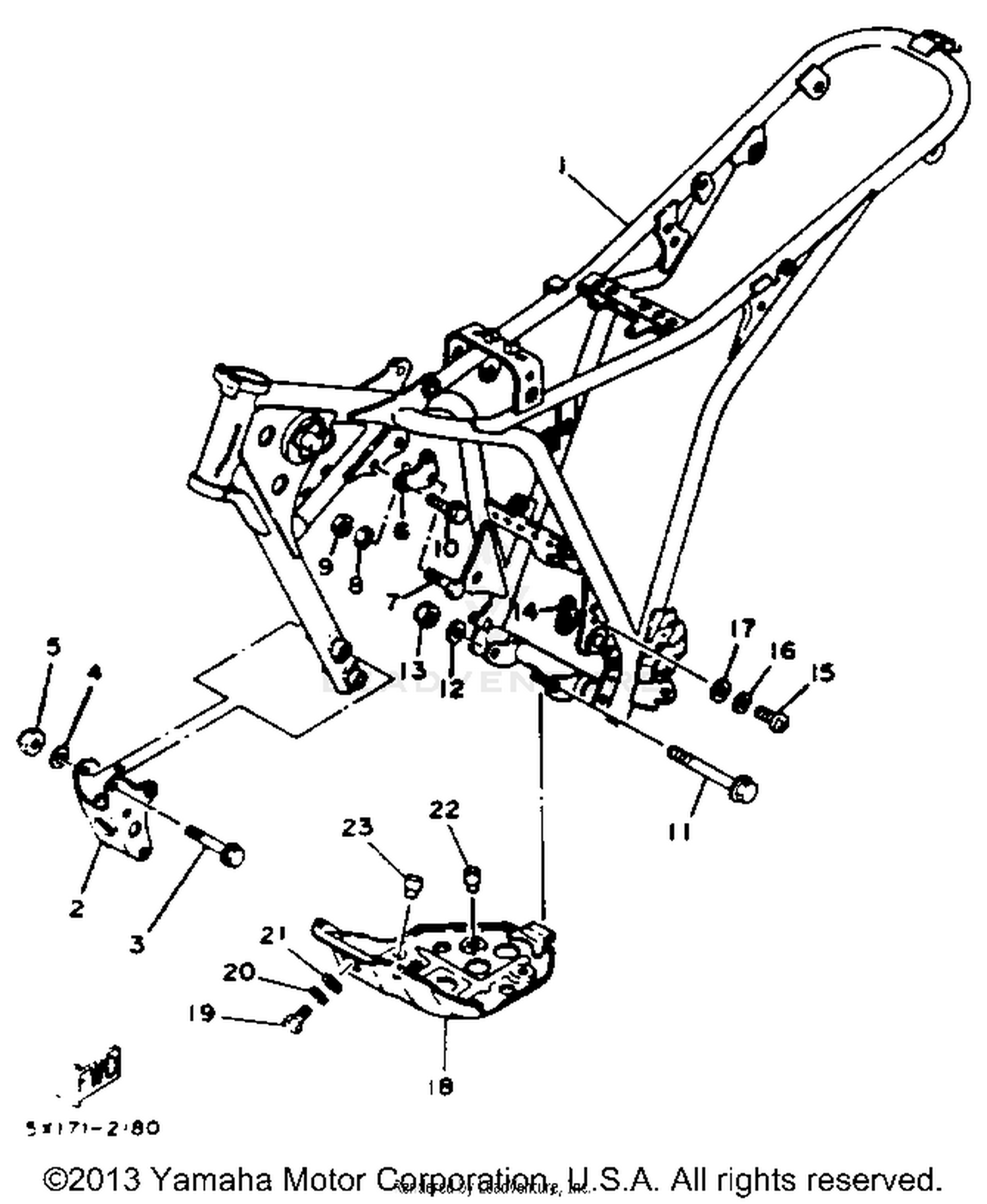

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
21-N2111-00-09
|
|||
|
Unavailable |
|||
|
#2
STAY, ENGINE 3
15A-21316-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95811-08065-00
Superseded by 95814-08065-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-094G1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, ENGINE 2
15A-21315-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95811-08050-00
Superseded by 95817-08050-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-094G1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
90105-08155-00
Superseded by 90105-08066-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95811-08120-00
Superseded by 95817-08120-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-094G1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
PLATE
15A-21329-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR, ENGINE
15A-21471-00-35
Superseded by 1RL-21471-00-35
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#22
STOPPER, MAIN STAND
128-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
STOPPER
3Y1-24768-00-00
|
$13.49 | ||
|
Unavailable |
|||
