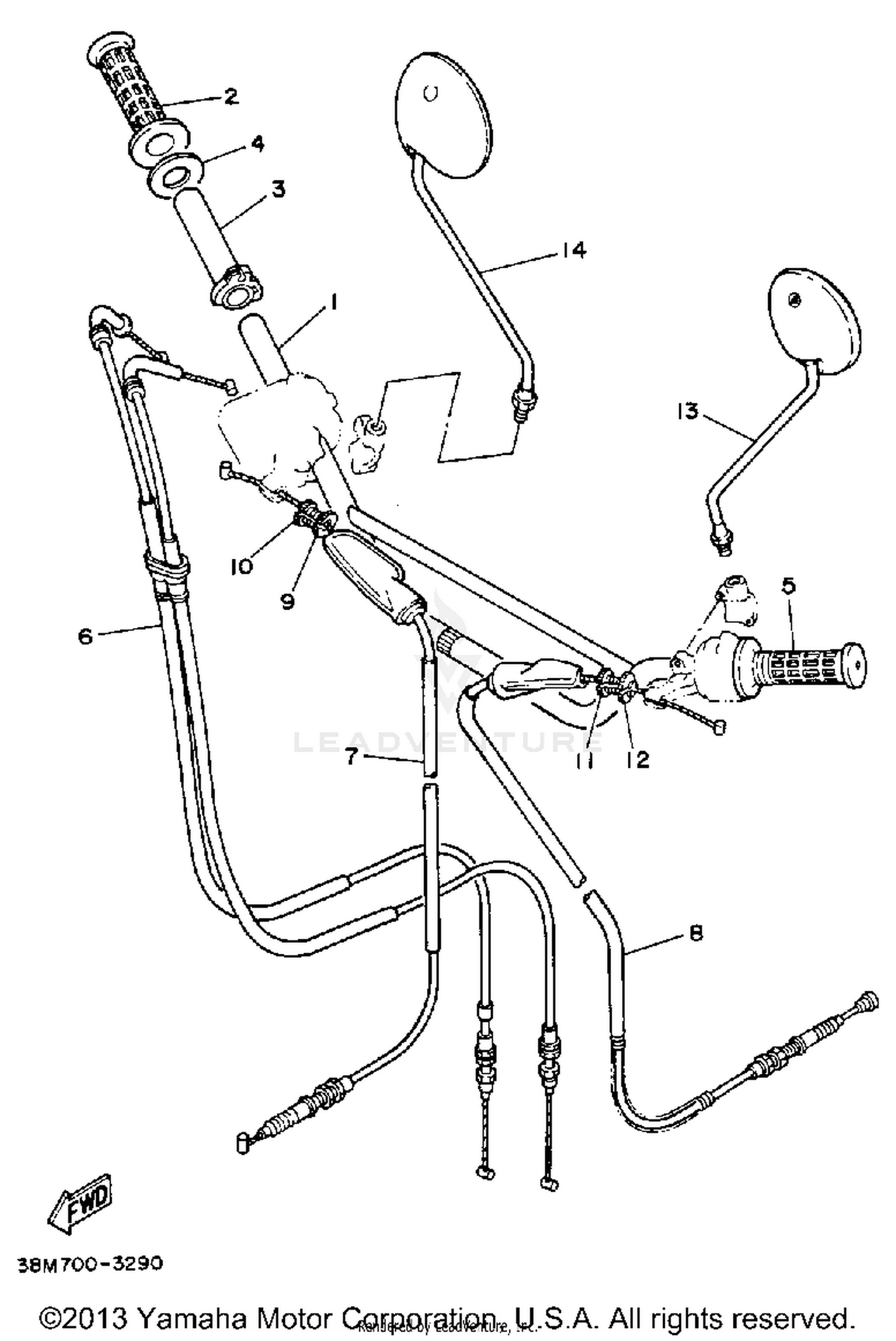

Handlebar - Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
1EU-26111-00-00
|
$87.99 | ||
|
Unavailable |
|||
|
#2
GRIP RH
33G-26242-00-00
Superseded by 33G-26242-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, THROTTLE GUIDE
3Y1-26243-01-00
Superseded by 1RF-26243-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, LEAF
3Y1-26249-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GRIP
33G-26241-00-00
Superseded by 33G-26241-01-00
|
$19.99 | ||
|
Unavailable |
|||
|
#6
THROTTLE CABLE ASSEMBLY
30X-26302-00-00
Superseded by 30X-26302-01-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, BRAKE
38M-26341-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#8
CABLE, CLUTCH
38M-26335-00-00
|
$23.33 | ||
|
Unavailable |
|||
|
#9
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90123-08046-00
Superseded by 90123-08002-00
|
$9.49 | ||
|
Unavailable |
|||
|
#12
NUT
90179-08148-00
Superseded by 90179-08030-00
|
$4.75 | ||
|
Unavailable |
|||
|
#13
MIRROR ASSY., 2
5Y1-26290-10-00
Superseded by 5Y1-26290-11-00
|
$72.99 | ||
|
Unavailable |
|||
|
#14
BACK MIRROR ASSY (R.H)
3Y1-26290-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
