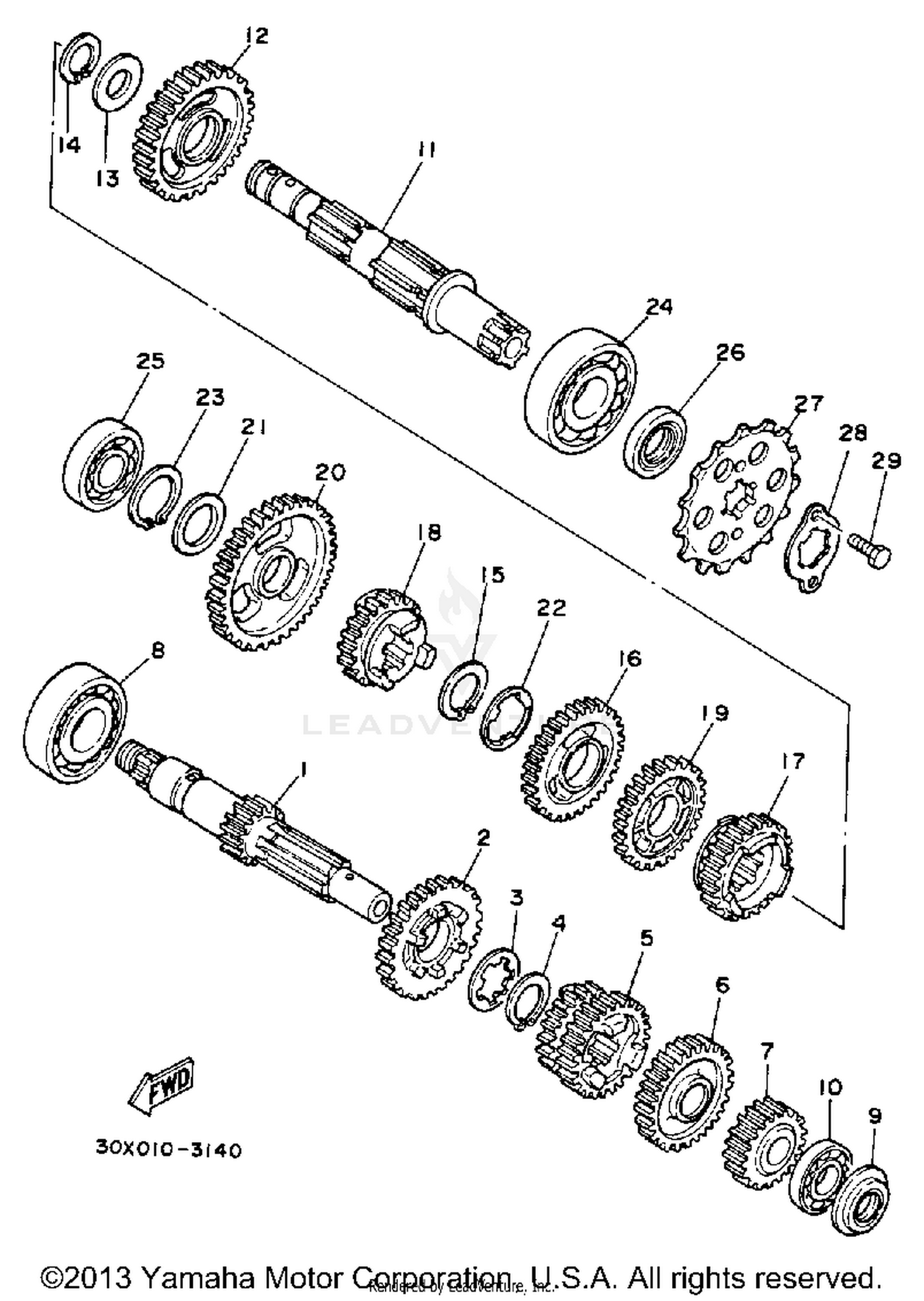

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
30X-17411-00-00
|
$76.54 | ||
|
Unavailable |
|||
|
#2
GEAR, 6TH PINION
30X-17161-01-00
|
$13.98 | ||
|
Unavailable |
|||
|
#3
WASHER
90209-18208-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 3RD PINION (22T-25T)
30X-17131-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#6
GEAR, 5TH PINION
30X-17151-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 2ND PINION
30X-17121-00-00
|
$8.68 | ||
|
Unavailable |
|||
|
#8
BEARING
93306-20427-00
Superseded by 93306-20447-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93101-17093-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-00315-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DRIVE AXLE ASSEMBLY
30X-17402-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#12
UNAVAILABLE IN PRICE BOOK
30-X1722-10-00
|
|||
|
Unavailable |
|||
|
#13
WASHER
90209-23241-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93410-26067-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93410-22039-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
GEAR, 3RD WHEEL
30X-17231-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#17
GEAR, 5TH WHEEL
30X-17251-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
UNAVAILABLE IN PRICE BOOK
30-X1726-10-00
|
|||
|
Unavailable |
|||
|
#19
GEAR, 4TH WHEEL
30X-17241-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 1ST WHEEL
30X-17211-00-00
|
$21.12 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-177G4-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-18208-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
CIRCLIP
93410-17037-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-20332-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93306-20447-00
|
$38.99 | ||
|
Unavailable |
|||
|
#26
OIL SEAL, SD-TYPE
93102-22306-00
|
$6.49 | ||
|
Unavailable |
|||
|
#27
SPROCKET, DRIVE (30X-17461-50)
93833-15071-00
|
$20.99 | ||
|
Unavailable |
|||
|
#28
HOLDER, SPROCKET
30X-17456-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#29
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
