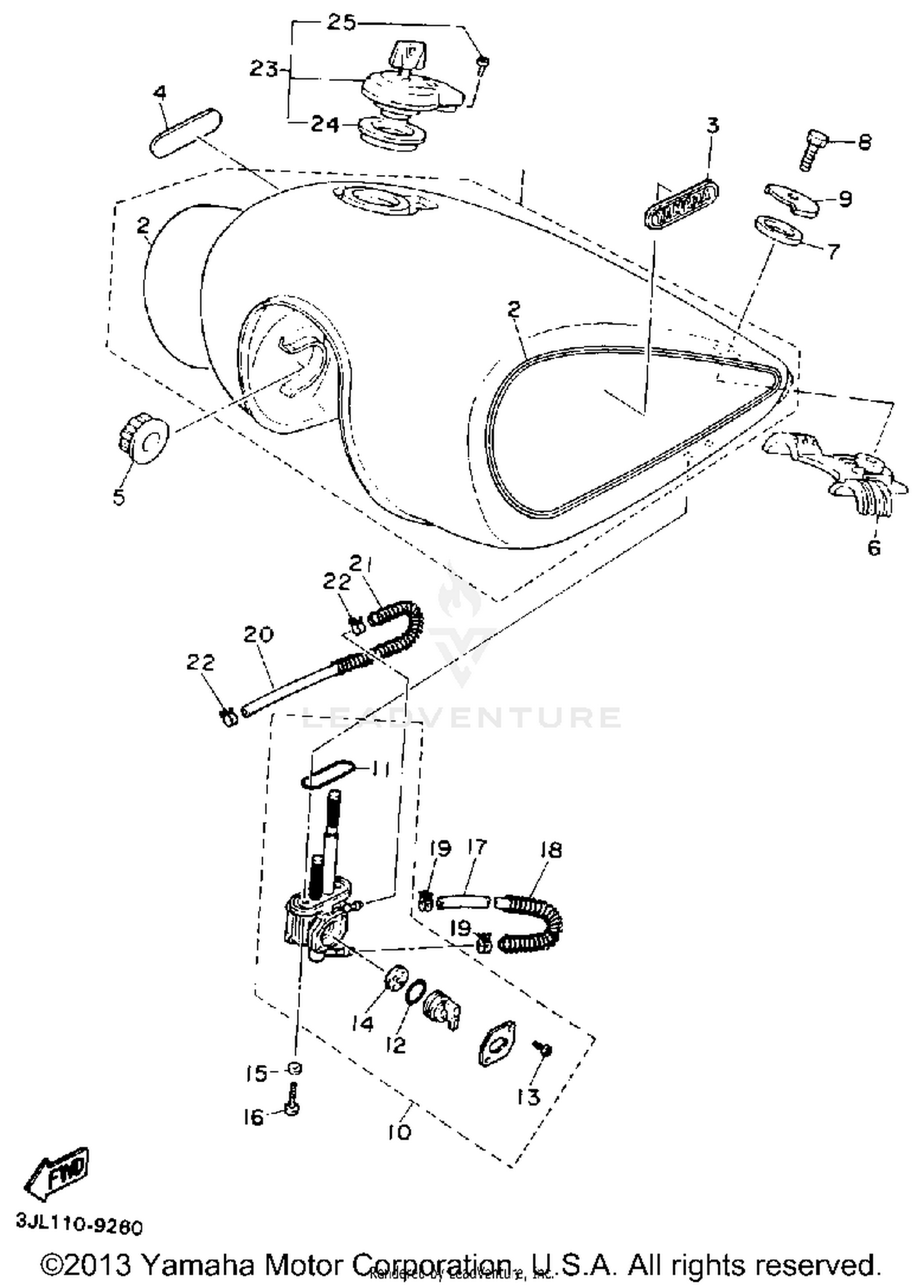

Fuel Tank Non California Model Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
1RM-24110-00-X2
|
$565.99 | ||
|
Unavailable |
|||
|
#
FUEL TANK
1RM-24110-00-X3
|
$1,014.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
3JL-24240-10-00
|
$111.99 | ||
|
Unavailable |
|||
|
#
GRAPHIC SET
3JL-24240-00-00
|
$103.99 | ||
|
Unavailable |
|||
|
#3
EMBLEM 1
1RM-24161-10-00
|
$51.99 | ||
|
Unavailable |
|||
|
#4
EMBLEM 2
1RM-24162-10-00
|
$53.99 | ||
|
Unavailable |
|||
|
#5
DAMPER, LOCATING 1
4H7-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER, LOCATING 2
42X-24182-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#7
DAMPER, LOCATING 3
42X-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPECIAL
42X-24186-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUEL COCK ASSEMBLY 1
3AL-24500-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, COCK
1JK-24534-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE
3H3-24523-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE 10
3AL-24321-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#18
SPRING, COMPRESSION
90501-08728-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, SCISSOR
90467-10091-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE
3AL-2416A-00-00
Superseded by 42X-2416A-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#21
SPRING, COMPRESSION
90501-08410-00
Superseded by 90501-085L6-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP
90467-08092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CAP ASSY
4X7-24602-02-00
Superseded by 4X7-24602-10-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PACKING, CAP
4X7-24612-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98506-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
