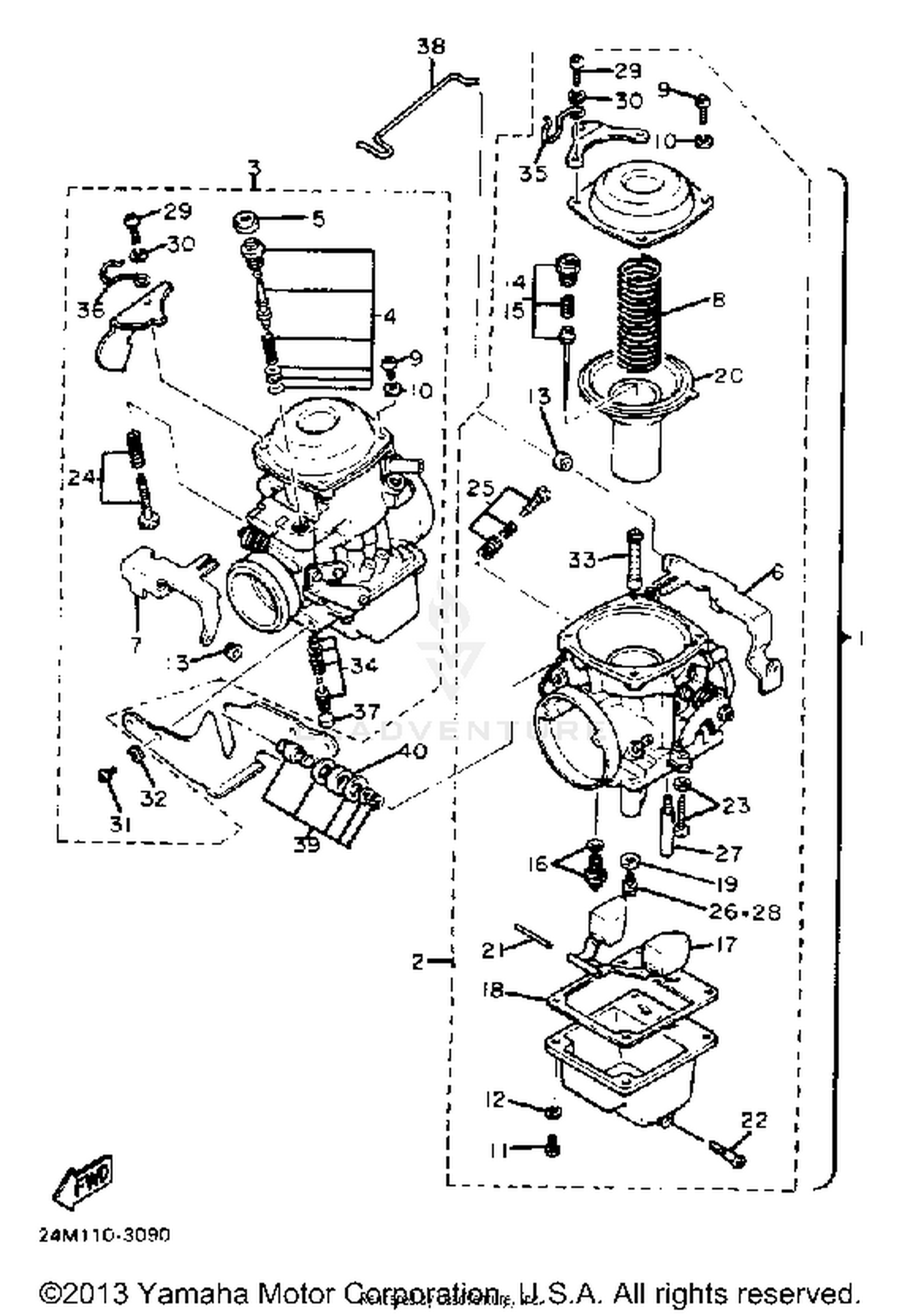

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
10-L1490-00-10
|
|||
|
Unavailable |
|||
|
#2
CARBURETOR ASSEMBLY 1
10L-14901-01-00
|
$574.99 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSEMBLY 2
10L-14902-01-00
|
$574.99 | ||
|
Unavailable |
|||
|
#4
PLUNGER, STARTER
4X7-14371-01-00
|
$115.99 | ||
|
Unavailable |
|||
|
#5
COVER, PLUNGER CAP
4H7-14173-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#6
LEVER, STARTER 2
10L-14976-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#7
LEVER, STARTER 2
10L-14976-11-00
|
$11.24 | ||
|
Unavailable |
|||
|
#8
SPRING, DIAPHRAGM
4X7-14933-10-00
|
$15.04 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-05012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#13
BUSH
4X7-14998-01-00
|
$5.86 | ||
|
Unavailable |
|||
|
#14
NEEDLE Y-31
4X7-14916-31-00
|
$46.85 | ||
|
Unavailable |
|||
|
#15
NEEDLE Y-33OK (4X7-14916-30
4X7-14916-33-00
|
$55.99 | ||
|
Unavailable |
|||
|
#16
NEEDLE VALVE ASSEMBLY (4X7-
10L-14390-02-00
|
$63.99 | ||
|
Unavailable |
|||
|
#17
FLOAT
10L-14985-01-00
|
$59.99 | ||
|
Unavailable |
|||
|
#18
GASKET, FLOAT CHMBR
10L-14984-02-00
|
$24.99 | ||
|
Unavailable |
|||
|
#19
WASHER, MAIN JET
4H7-14945-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
DIAPHRAGM ASSEMBLY
4X7-14940-01-00
|
$106.99 | ||
|
Unavailable |
|||
|
#21
PIN, FLOAT
4H7-14186-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#22
PLUG, DRAIN
4X7-14191-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#23
SCREW, THROTTLE
4X7-14321-01-00
|
$16.49 | ||
|
Unavailable |
|||
|
#24
SCREW, THROTTLE STOP SPRING
4X7-14121-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#25
SCREW, ADJUST
4X7-14522-01-00
|
$6.99 | ||
|
Unavailable |
|||
|
#26
JET, MAIN
4X7-14925-28-00
|
$19.12 | ||
|
Unavailable |
|||
|
#27
JET
4X7-14948-41-00
|
$13.49 | ||
|
Unavailable |
|||
|
#28
JET, MAIN
4X7-14925-26-00
|
$20.69 | ||
|
Unavailable |
|||
|
#29
SCREW, PAN HEAD
98580-05016-00
Superseded by 97885-05016-00
|
$4.25 | ||
|
Unavailable |
|||
|
#30
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
NOZZLE, MAIN
10L-14921-32-00
|
$49.33 | ||
|
Unavailable |
|||
|
#34
SCREW, PILOT
10L-14923-01-00
|
$19.99 | ||
|
Unavailable |
|||
|
#35
CLIP, PIPE
22N-14139-00-00
|
$3.10 | ||
|
Unavailable |
|||
|
#36
CLIP
10L-14937-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#37
CAP (10L-14118-01)
10L-14118-11-00
|
$5.99 | ||
|
Unavailable |
|||
|
#38
ROD, STARTER LEVER
4X7-14177-01-00
|
$4.56 | ||
|
Unavailable |
|||
|
#39
WASHER
4X7-14962-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#40
ROLLER
4X7-14267-00-00
|
$7.52 | ||
|
Unavailable |
|||
