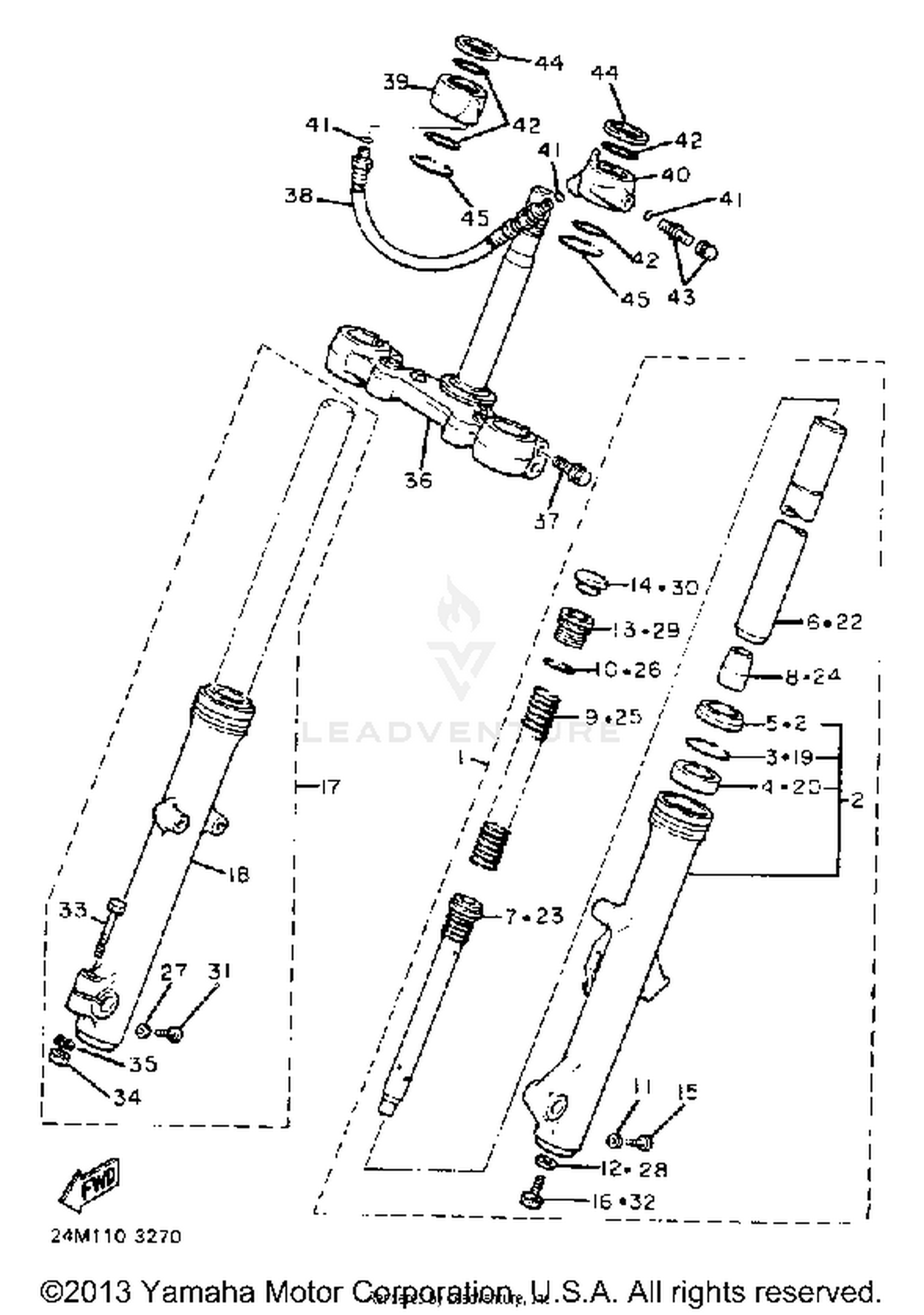

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY L
24M-23102-01-00
|
$294.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
4H7-23126-00-00
|
$205.99 | ||
|
Unavailable |
|||
|
#3
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
49A-23145-00-00
Superseded by 4ES-23145-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, DUST (15R-23144-00)
33M-23144-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
INNER TUBE 1
24M-23110-01-00
|
$150.99 | ||
|
Unavailable |
|||
|
#7
CYLINDER, FRTFRK
4K0-23170-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#8
SPINDLE, TAPER
1W1-23173-L0-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, FRONT FORK
20X-23141-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#10
GASKET
240-23114-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CAP
11H-23111-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#14
CAP, front fork
16G-23168-00-00
Superseded by 26H-23168-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FRONT FORK ASSEMBLY R
24M-23103-01-00
|
$294.99 | ||
|
Unavailable |
|||
|
#18
TUBE, OUTER 2
22U-23136-01-38
|
$265.99 | ||
|
Unavailable |
|||
|
#19
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#20
OIL SEAL
49A-23145-00-00
Superseded by 4ES-23145-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#21
SEAL, DUST (15R-23144-00)
33M-23144-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#22
INNER TUBE 1
24M-23110-01-00
|
$150.99 | ||
|
Unavailable |
|||
|
#23
CYLINDER, FRTFRK
4K0-23170-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#24
SPINDLE, TAPER
1W1-23173-L0-00
|
$29.99 | ||
|
Unavailable |
|||
|
#25
SPRING, FRONT FORK
20X-23141-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#26
GASKET
240-23114-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#27
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#29
BOLT, CAP
11H-23111-00-00
|
$59.99 | ||
|
Unavailable |
|||
|
#30
CAP, front fork
16G-23168-00-00
Superseded by 26H-23168-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#31
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#32
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#33
BOLT
97313-08045-00
Superseded by 97013-08045-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
UNDER BRACKET (24M-23340-01-90)
24M-23340-01-00
|
$180.99 | ||
|
Unavailable |
|||
|
#37
BOLT, WITH WASHER
18G-23128-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
HOSE, AIR
24M-2318F-01-00
|
$34.99 | ||
|
Unavailable |
|||
|
#39
JOINT, AIR
24M-2319A-01-00
|
$59.34 | ||
|
Unavailable |
|||
|
#40
JOINT, AIR 1
24M-2318A-01-00
|
$56.08 | ||
|
Unavailable |
|||
|
#41
O-RING
3J2-23147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
O-RING
15R-23188-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#43
AIR VALVE
4V4-23190-L0-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
GASKET (42H-23163-00-00)
2H7-23163-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
RING, SNAP
15R-23153-00-00
|
$4.45 | ||
|
Unavailable |
|||
