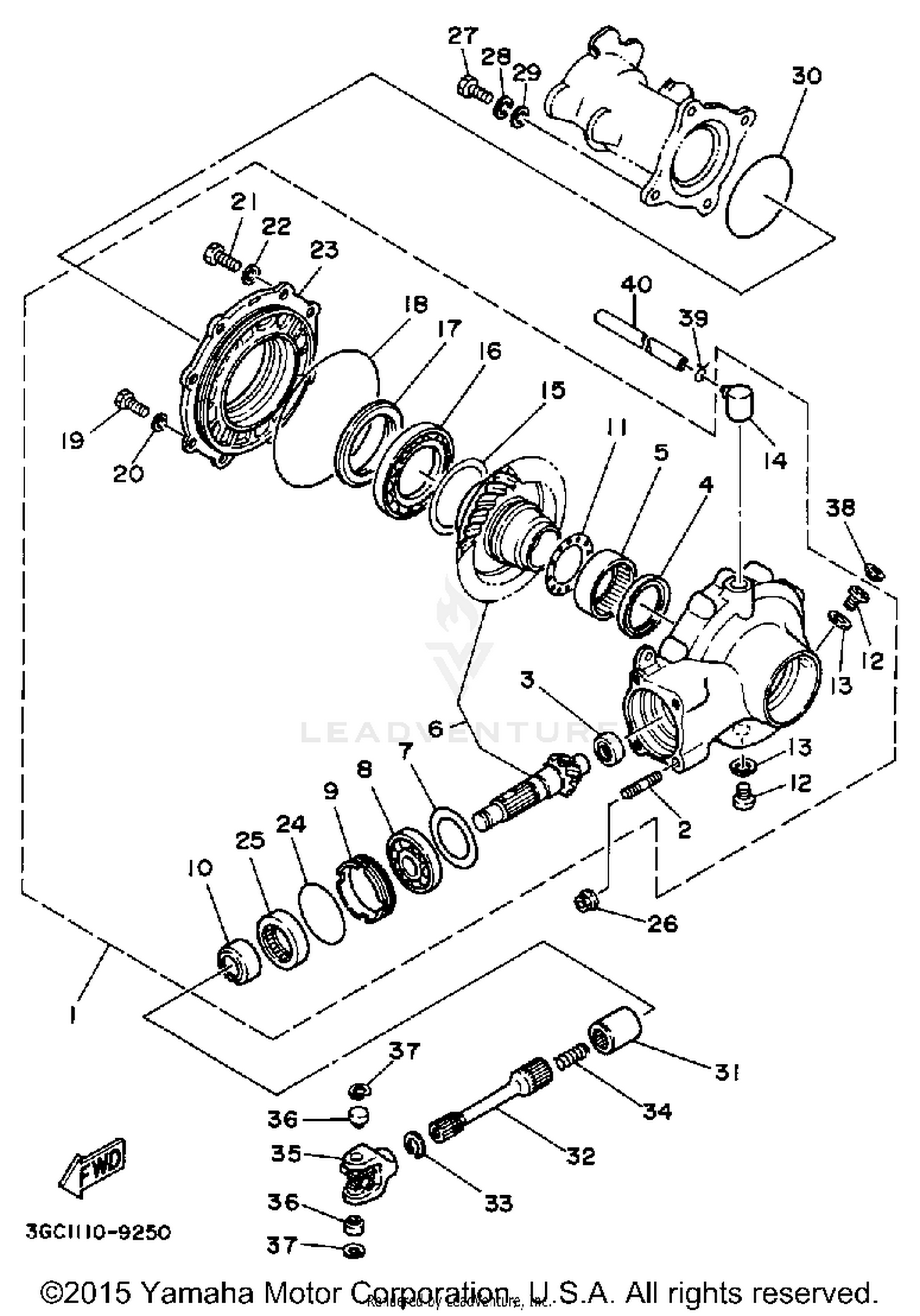

Drive Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RR.AXL.GR.CASE ASSEMBLYCASE ASS
3GC-46101-00-00
|
$1,766.99 | ||
|
Unavailable |
|||
|
#2
BOLT, STUD
90116-08360-00
Superseded by 95617-08620-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING ASSY
24W-46102-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93101-52116-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93317-85569-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BEARING, CYLINDER.17
93317-55542-00
|
$52.99 | ||
|
Unavailable |
|||
|
#6
RING GEAR SET
24W-Y4612-00-00
|
$465.99 | ||
|
Unavailable |
|||
|
#7
SHIM, THRUST (0.30T)
1J7-17537-Y0-30
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.40T)
1J7-17537-Y0-40
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, THRUST (0.50T)
1J7-17537-Y0-50
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-30539-00
Superseded by 93306-30533-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER, BEARING
29U-46125-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-255H9-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, THRUST (1.6T)
24W-46118-00-16
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, THRUST (2.0T)
24W-46118-00-20
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, THRUST (1.8T)
24W-46118-00-18
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, THRUST (1.4T)
24W-46118-00-14
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, THRUST (1.2T)
24W-46118-00-12
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG, STRAIGHT SCREW
90340-14046-00
Superseded by 90340-14002-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BREATHER
2H7-17591-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#15
SHIM, RING GEAR (0.25T)
24W-46117-00-25
|
$6.49 | ||
|
Unavailable |
|||
|
#
SHIM, RING GEAR (0.30T)
24W-46117-00-30
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, RING GEAR (0.40T)
24W-46117-00-40
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SHIM, RING GEAR (0.50T)
24W-46117-00-50
|
$10.49 | ||
|
Unavailable |
|||
|
#16
BEARING
93316-01301-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
93102-65277-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
93211-44348-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, KICK CRANK
97013-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
97011-10025-00
Superseded by 97017-10025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
92990-10600-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOUSING, BEARING
3GC-46152-00-00
|
$195.99 | ||
|
Unavailable |
|||
|
#24
O-RING
93210-59531-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93101-38098-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
97011-10025-00
Superseded by 97017-10025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
WASHER, SPRING
92901-10100-00
Superseded by 92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
92990-10600-00
|
$2.75 | ||
|
Unavailable |
|||
|
#30
O-RING
93210-85075-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
COUPLING, GEAR
2HR-46123-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SHAFT, DRIVE
2VY-46172-00-00
|
$94.54 | ||
|
Unavailable |
|||
|
#33
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPRING, COMPRESSION
90501-180F9-00
|
$1.75 | ||
|
Unavailable |
|||
|
#35
CROSS JOINT COMP.
1EV-46180-00-00
|
$315.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BEARING, CYLINDER. (1EV)
93311-21059-00
|
$26.99 | ||
|
Unavailable |
|||
|
#37
CIRCLIP
99009-20500-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#38
CAP, BOLT
341-23469-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
90467-07029-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#40
HOSE (L1700)
90445-07745-00
Superseded by 90445-070G6-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
