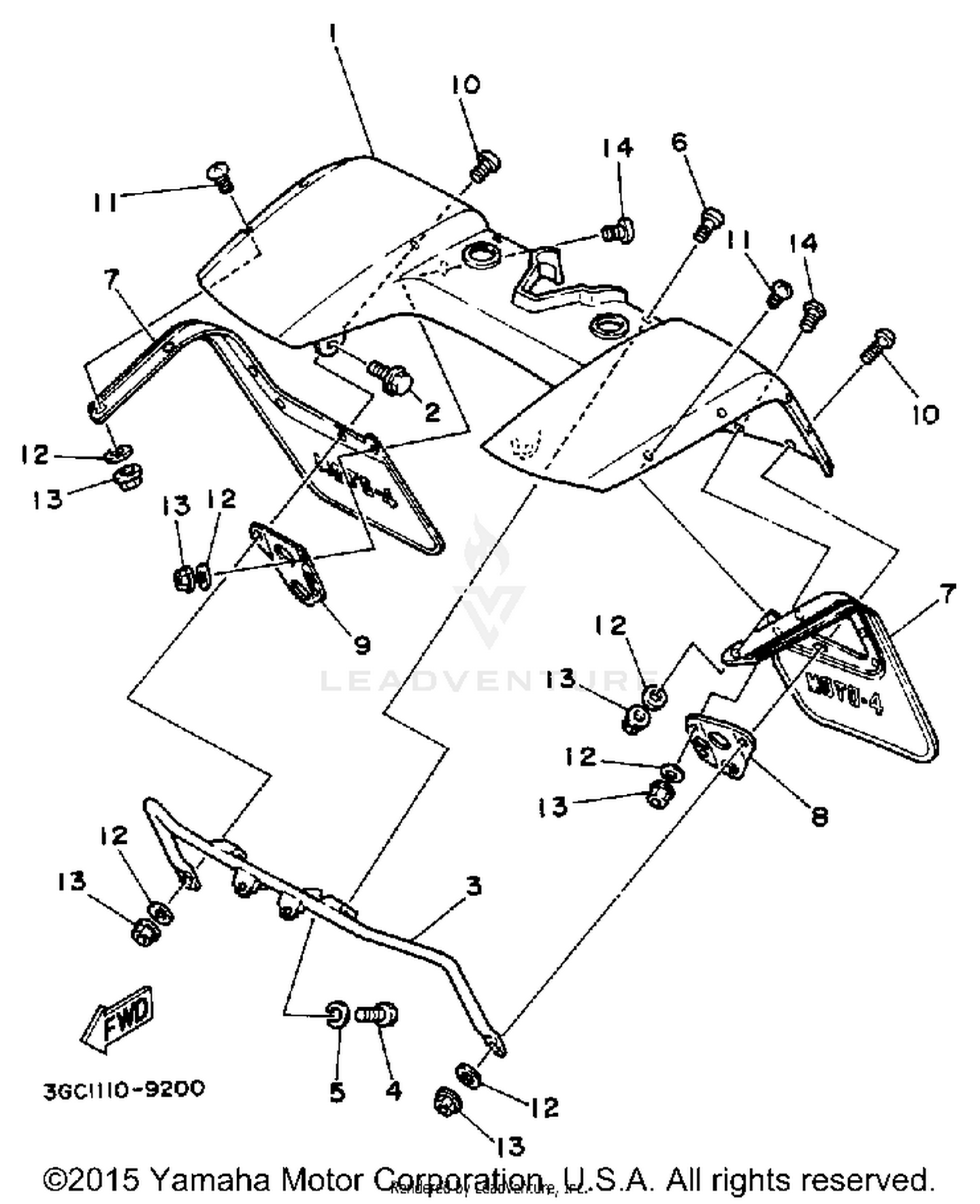

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
3GC-21511-00-00
|
$145.99 | ||
|
Unavailable |
|||
|
#2
BOLT, WITH WASHER
90119-06043-00
Superseded by 90119-06242-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
STAY, FENDER 1
52H-21513-01-00
|
$111.99 | ||
|
Unavailable |
|||
|
#4
BOLT
97021-06012-00
Superseded by 97017-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, BIND
98903-06012-00
Superseded by 98980-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLAP, FRONT FENDER
1NU-21521-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#8
PLATE 1
1NU-21523-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#9
PLATE 2
1NU-21524-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#10
SCREW, BINDING
90154-05016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, BINDING
90154-05059-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-05029-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, FLANGE
95701-05300-00
Superseded by 95707-05300-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
