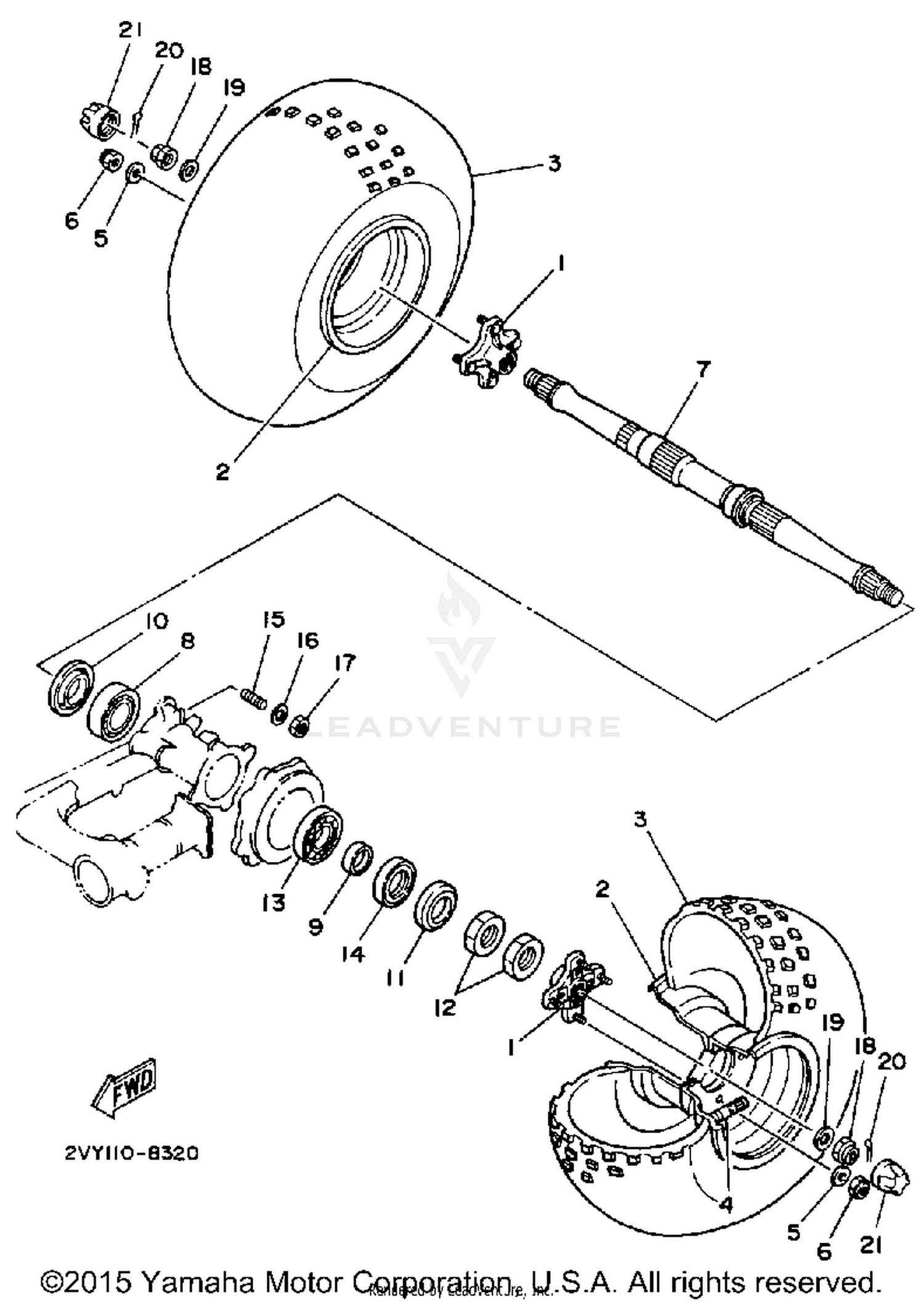

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR, WHEEL
2VY-25383-00-00
|
$120.99 | ||
|
Unavailable |
|||
|
#2
REAR WHEEL COMP.
2VY-25390-00-35
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DUN AT22X10-8KT988 (AT22X10-8)
94110-084X2-00
|
$88.99 | ||
|
Unavailable |
|||
|
#4
VALVE, RIM (TR412)
93900-00030-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-101J1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, U
95611-10100-00
Superseded by 95614-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
AXLE, WHEEL
1NU-25381-01-00
|
$338.99 | ||
|
Unavailable |
|||
|
#8
BEARING, SPECIAL
93399-99913-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, AXLE
24W-25386-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, HUB DUST
24W-25367-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, HUB DUST
21V-25367-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#12
NUT
90170-40387-00
|
$13.99 | ||
|
Unavailable |
|||
|
#13
BEARING
93306-00804-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL, SD-TYPE
93102-46274-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, STUD
90116-10221-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-104G0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95311-10600-00
Superseded by 95314-10600-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CASTLE
90171-14037-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-144K1-00
|
$12.49 | ||
|
Unavailable |
|||
|
#20
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, WHEEL
52H-2512A-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
