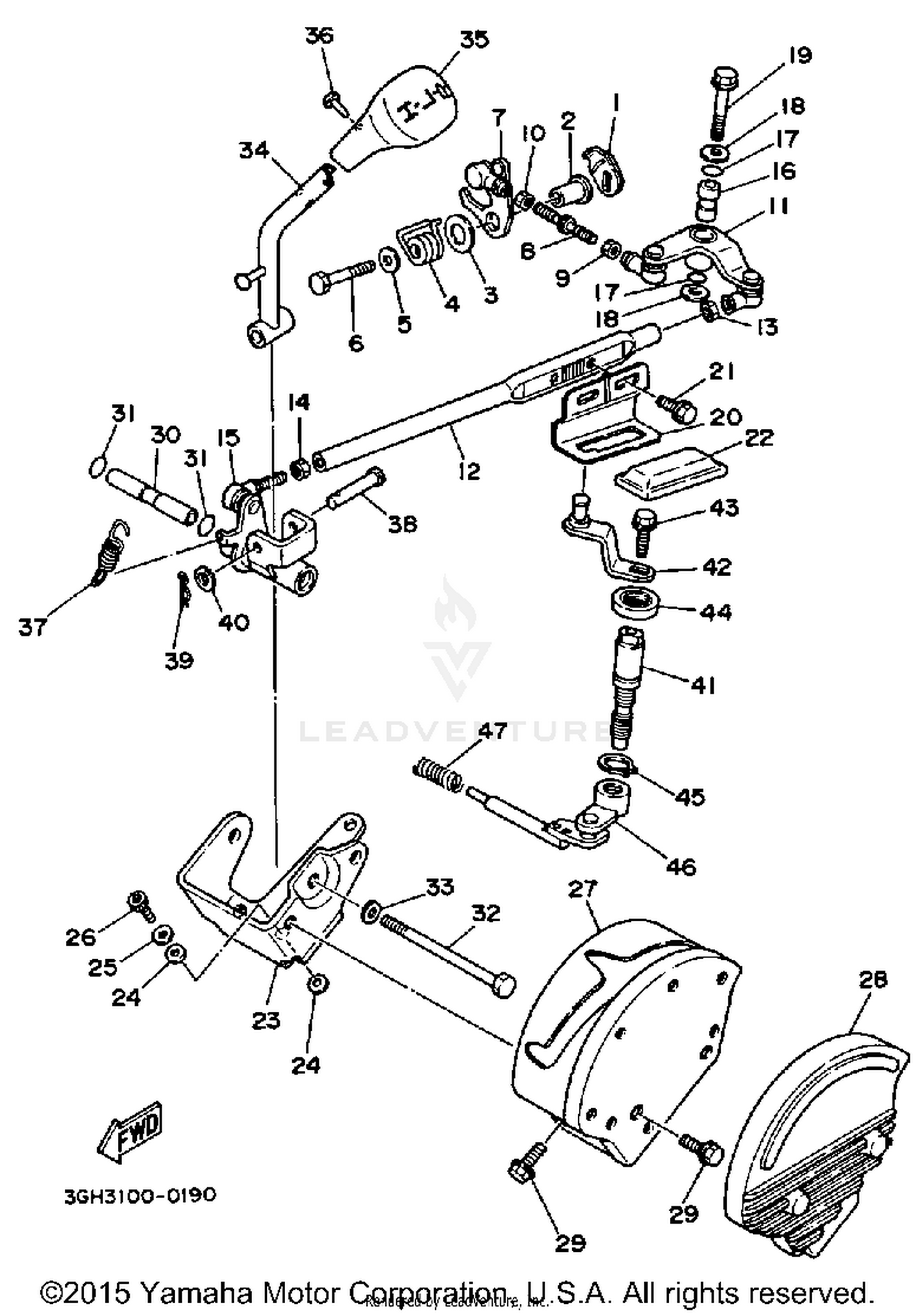

Drive Selector Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER
1YW-18198-00-00
Superseded by 4SH-18198-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-063W7-00
Superseded by 90387-0613B-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-144J2-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-35764-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-06M02-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON
97012-06035-00
Superseded by 97014-06035-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER
3JN-18191-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#8
ROD, SHIFT
3JN-18115-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#9
NUT (COUNTER CLOCKWISE)
90170-06228-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95316-06700-00
Superseded by 95317-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, SHIFT 3
3JN-18151-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#12
JOINT, ROD 2
3JN-18117-02-00
|
$88.10 | ||
|
Unavailable |
|||
|
#13
NUT
95316-08700-00
Superseded by 95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90170-08261-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, RINK
3JN-18341-01-00
|
$94.99 | ||
|
Unavailable |
|||
|
#16
COLLAR
90387-063W3-00
|
$4.80 | ||
|
Unavailable |
|||
|
#17
O-RING
93210-12790-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
91026-06040-00
Superseded by 95817-06040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLATE, STOPPER
3JN-18141-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#21
BOLT,FLANGE
95826-06010-00
Superseded by 95817-06010-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, DUST
3GH-18154-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#23
BRACKET, SHIFTER
3JN-18431-00-00
|
$96.99 | ||
|
Unavailable |
|||
|
#24
WASHER, PLATE
90201-063J3-00
Superseded by 90201-067P3-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (4MY)
91316-06016-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET
3JN-18128-00-00
|
$99.40 | ||
|
Unavailable |
|||
|
#28
COVER, SHIFT SHAFT
3JN-18129-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95816-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-063W2-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
O-RING
93210-12790-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
BOLT
97001-06090-00
Superseded by 97017-06090-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#34
LEVER, SHIFT 3
3JN-18150-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#35
KNOB, SHIFT LEVER
3JN-18174-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
RIVET
90269-05055-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING, TENSION
90506-16451-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN
91701-08042-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
90468-12006-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#41
SHAFT
3GC-18197-00-00
|
$65.87 | ||
|
Unavailable |
|||
|
#42
LEVER
3JN-18198-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#43
BOLT, FLANGE
95816-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#44
OIL SEAL
93102-14209-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
CIRCLIP
99009-14400-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#46
STOPPER SHAFT ASSEMBLY
3JN-1812A-00-00
|
$99.40 | ||
|
Unavailable |
|||
|
#47
SPRING, COMPRESSION
90501-125F7-00
|
$2.35 | ||
|
Unavailable |
|||
