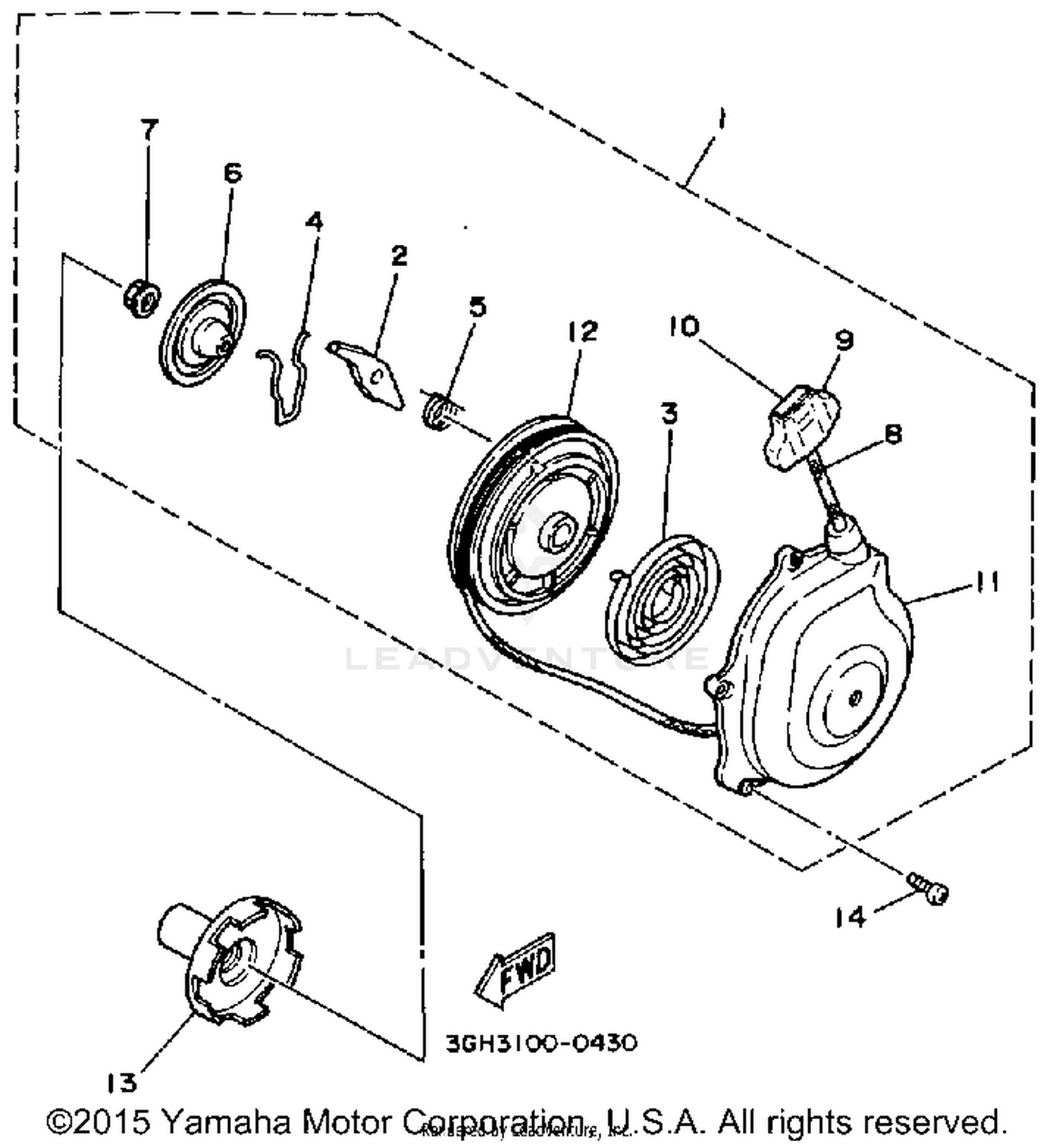

Starter (alt - Parts) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STARTER ASSEMBLY
3GH-15710-01-00
|
$242.99 | ||
|
Unavailable |
|||
|
#2
PAWL, DRIVE
21V-15741-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, STARTER
21V-15713-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, FRICTION
21V-15715-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING
21V-15767-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, DRIVE
21V-15716-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
WIRE, STARTER
5V6-15751-00-XX
Superseded by 89A-15751-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
HANDLE, STARTER
3GH-15755-01-00
Superseded by 3X3-15755-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER
21V-15779-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CASE, STARTER
24W-15711-00-00
|
$194.99 | ||
|
Unavailable |
|||
|
#12
DRUM, SHEAVE
24W-15714-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PULLEY, STARTER
21V-15723-00-00
|
$144.99 | ||
|
Unavailable |
|||
|
#14
SCREW,PAN HEAD
98516-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
