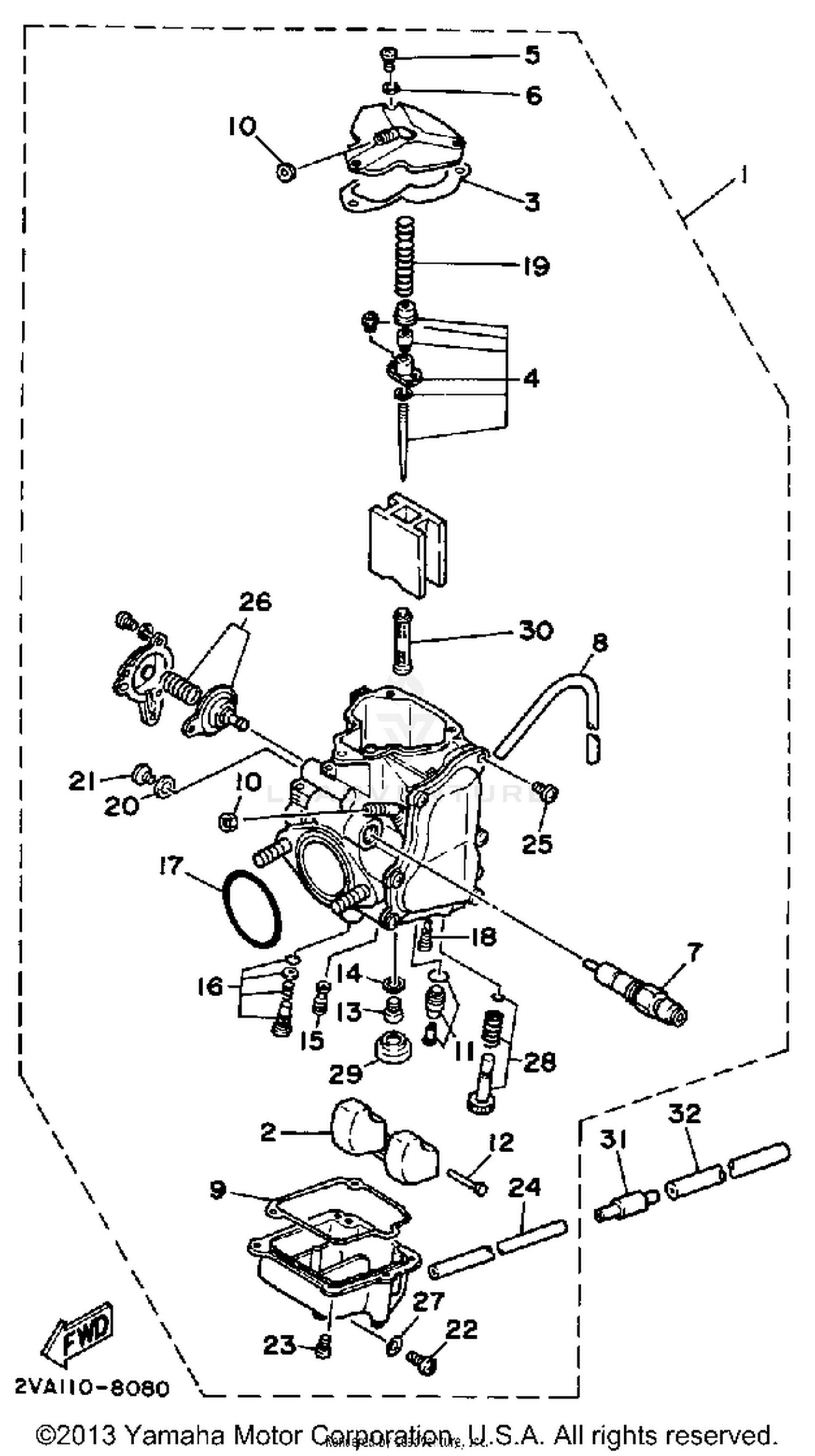

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
2VA-14101-01-00
|
$748.99 | ||
|
Unavailable |
|||
|
#2
FLOAT
2VA-14185-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
1UY-14198-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NEEDLE SET
2HR-1490J-00-00
Superseded by 2HR-1490J-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98511-04016-00
Superseded by 98517-04016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
STARTER SET
1YW-1410A-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#8
PIPE
2HR-14197-00-00
Superseded by 90445-084J0-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
1UY-14147-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE VALVE SET
1UY-14107-25-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, FLOAT
537-14186-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
JET, MAIN (#120)
620-14231-24-A0
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, MAIN JET
137-14153-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
JET, PILOT (# 45)
4G0-14142-45-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PILOT SCREW SET
21V-14105-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
1YW-14147-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
1FN-14565-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, THROTTLE VALVE
2HR-14131-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#20
WASHER
59V-14962-00-00
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG, DRAIN
2L1-14191-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIPE
90445-08619-00
Superseded by 90445-084J0-00
|
$18.49 | ||
|
Unavailable |
|||
|
#25
SCREW,PANHEAD
97601-04312-00
Superseded by 98517-04012-00
|
$3.80 | ||
|
Unavailable |
|||
|
#26
DIAPHRAGM SET 5
3LD-1490H-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
214-14147-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
THROTTLE SCREW SET
2VA-14103-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE, BAFFLE
5V7-14153-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
NOZZLE, MAIN
1YW-14141-28-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIPE
24W-14193-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE
91A20-07010-00
Superseded by 91A21-07020-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
