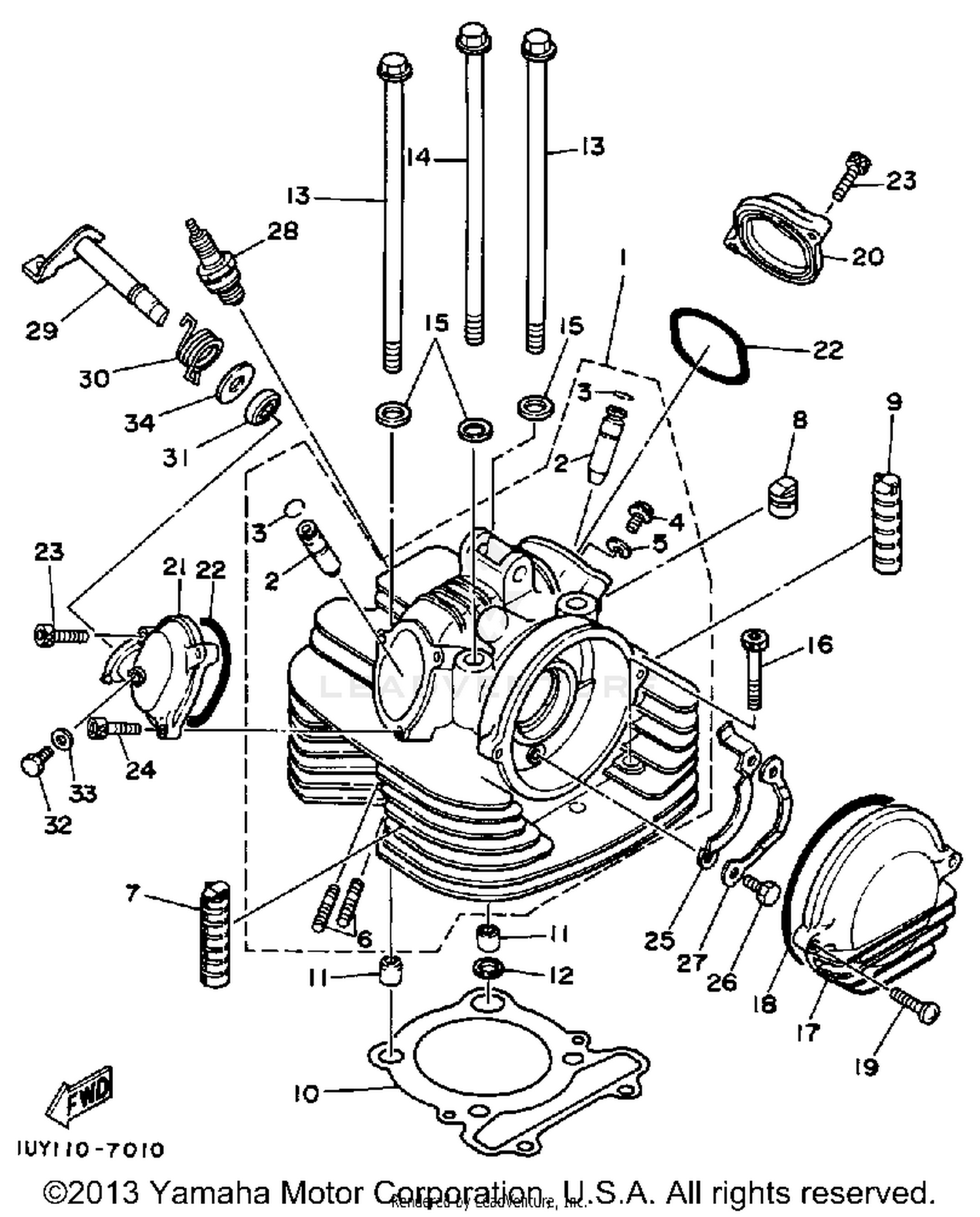

Cylinder-head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSEMBLY
1YW-11110-01-00
Superseded by 1YW-11101-01-00
|
$714.99 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE 1
3Y1-11133-10-00
Superseded by 3Y1-11133-11-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93440-12052-00
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, UNION
90401-06001-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET
90430-06192-00
Superseded by 90430-06166-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STUD
90116-06503-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
ABSORBER 3
583-11127-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
UNAVAILABLE IN PRICE BOOK
583-11161-00-00
|
|||
|
Unavailable |
|||
|
#9
ABSORBER 3
583-11127-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#10
GASKET, CYLINDER HEAD 1
1UY-11181-00-00
Superseded by 1UY-11181-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, DOWEL
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-14131-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-10421-00
Superseded by 90105-10137-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
90105-10422-00
Superseded by 90105-10136-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-10128-00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEX. SOCKET HEAD
91316-08050-00
Superseded by 91317-08050-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CYLINDER HEAD SIDE 1
3Y1-11185-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#18
O-RING
93211-06635-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
91316-06025-00
Superseded by 91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, CYLINDER HEAD
1UY-11186-00-00
Superseded by 3Y1-11186-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, CYLINDER HEAD SIDE 3
3Y1-11187-00-00
|
$92.99 | ||
|
Unavailable |
|||
|
#22
O-RING
93210-57634-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
91316-06020-00
Superseded by 91317-06020-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90109-06556-00
|
$1.65 | ||
|
Unavailable |
|||
|
#25
PLATE
3Y1-1111F-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
97013-06012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, LOCK
90215-06162-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
D8EA NGK SPLUG 10P
NGK-D8EA0-00-00
Superseded by D8E-A0000-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#29
DECOMPRESSION WIRE ASSEMBLY
1UY-12280-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#30
SPRING, TORSION
90508-12610-00
|
$5.99 | ||
|
Unavailable |
|||
|
#31
OIL SEAL
93102-12321-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90109-06418-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-12588-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
