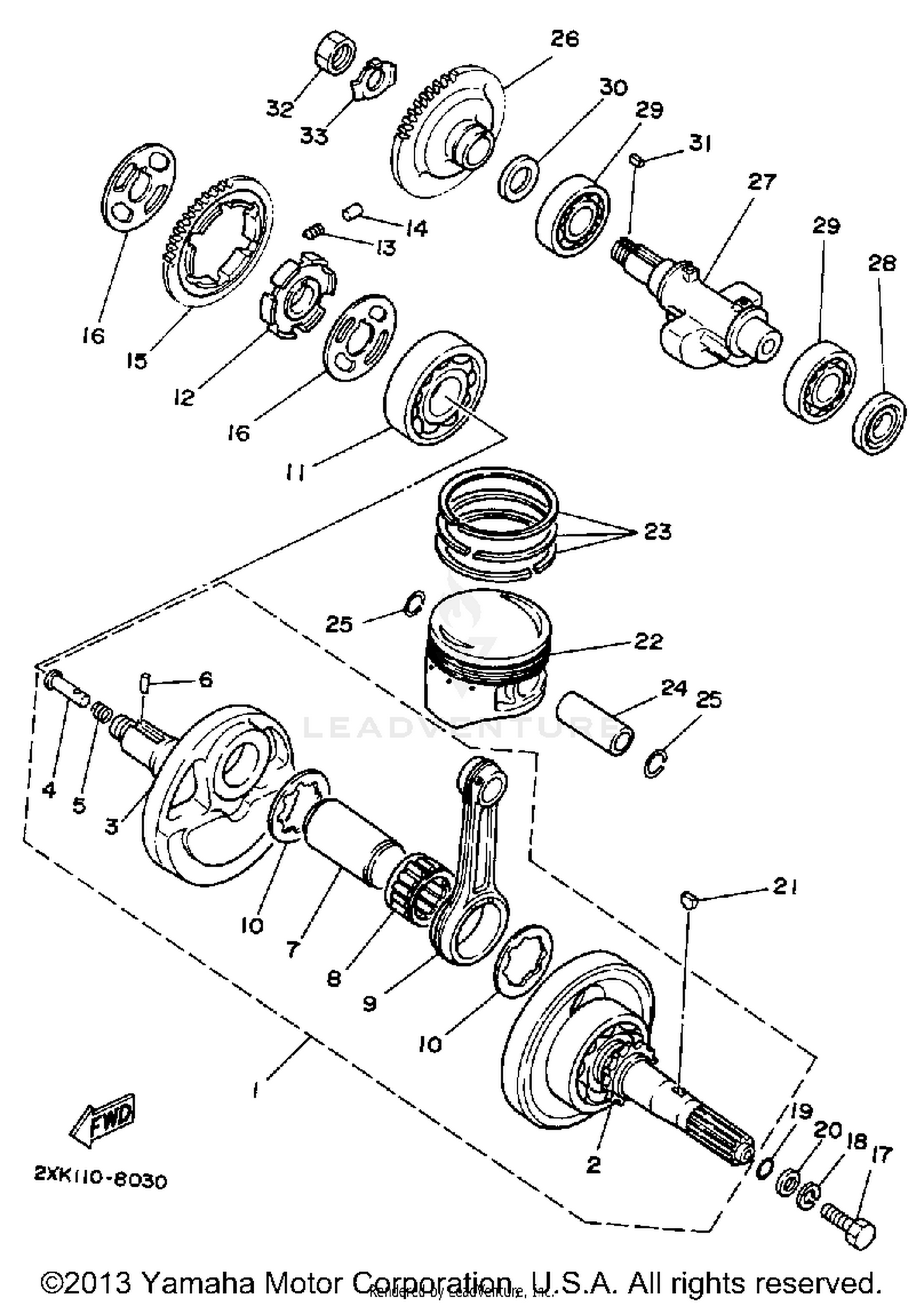

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
1UY-11400-00-00
|
$798.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK SUB ASSY 1
1UY-W1141-00-00
Superseded by 1UY-11401-09-00
|
$300.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
1UY-11422-00-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CLEVIS
90240-07105-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, COMPRESSION
90501-07629-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, DOWEL
93602-13177-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, CRANK 1
30X-11681-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93310-633T5-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD, CONNECTING
1UY-11651-00-00
|
$115.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
90209-33253-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-30630-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOSS, BUFFER
30X-11496-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION
90501-22721-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
93605-10090-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, BALANCE WEIGHT
3Y1-11531-01-00
Superseded by 3Y1-11531-02-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, BEARING COVER
30X-11565-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
90101-10568-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92901-10100-00
Superseded by 92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-16290-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-107F8-00
Superseded by 90201-10058-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PISTON (0.50MM O/S)
1UY-11636-01-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (STD)
1UY-11631-01-Y0
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (1.00MM O/S)
1UY-11638-01-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PISTON RING SET (1.00MM O/S)
42Y-11610-41-00
Superseded by 4GB-11610-40-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.50MM O/S)
42Y-11610-21-00
Superseded by 4GB-11610-20-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (STD)
42Y-11610-01-00
Superseded by 4GB-11610-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, PISTON
55V-11633-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CIRCLIP
93450-19095-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, DRIVE
1UY-11536-00-00
Superseded by 1UY-11536-01-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WEIGHT 1
1UY-11454-00-00
|
$206.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93101-25106-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING (B6205C4)
93306-20529-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-207G6-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
KEY, STRAIGHT
90282-05034-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT
90170-16326-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, LOCK
90215-16270-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
