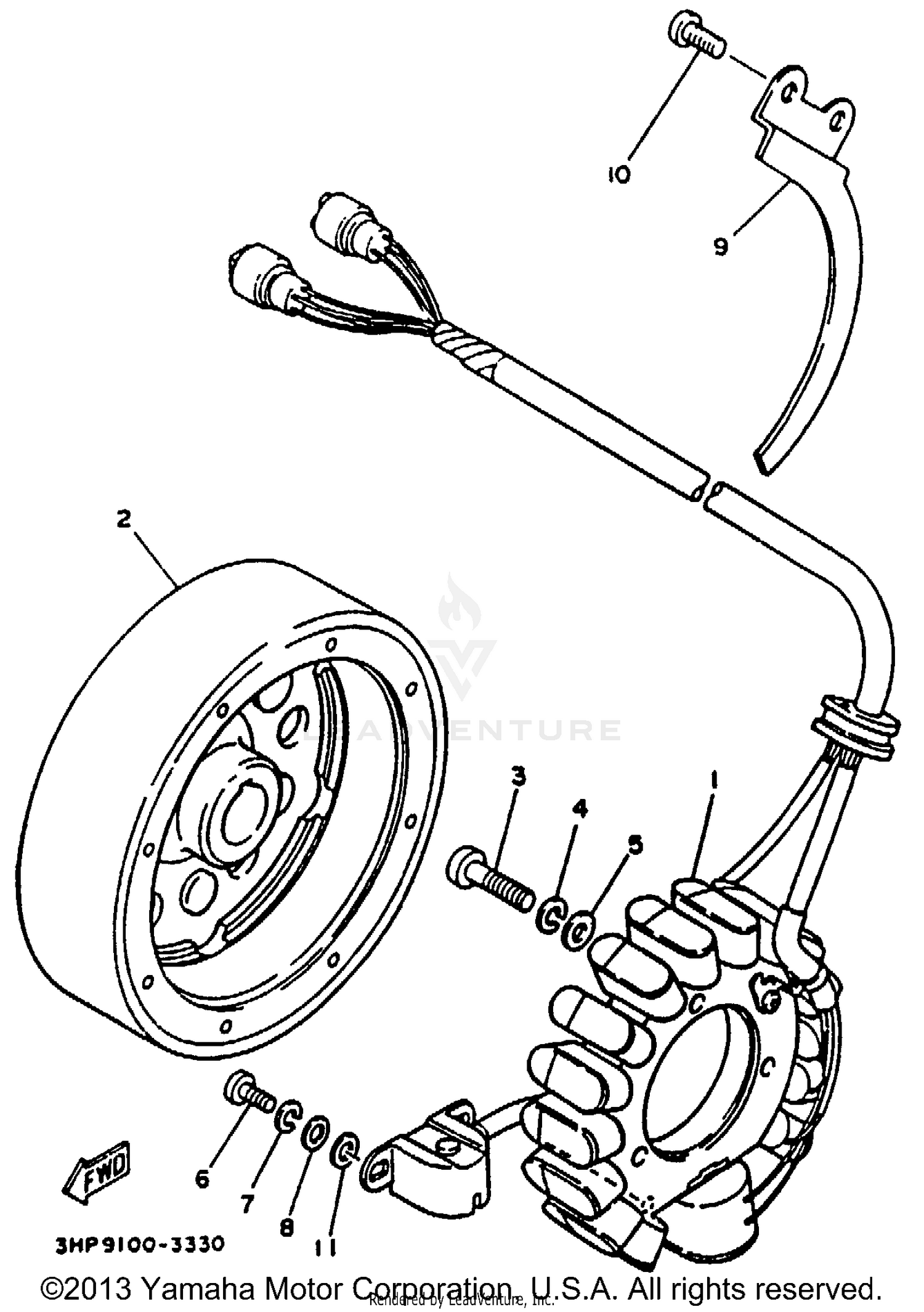

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSEMBLY
3HN-85510-00-00
|
$774.17 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROTOR ASSY
3HN-85550-00-00
Superseded by 3HN-85550-01-00
|
$626.99 | ||
|
Unavailable |
|||
|
#3
SCREW, PAN HEAD
98501-06030-00
Superseded by 97885-06030-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92990-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98501-05016-00
Superseded by 98507-05016-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
92990-05100-0
|
|||
|
Unavailable |
|||
|
#8
WASHER, PLATE
92901-05600-00
Superseded by 92990-05600-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
STOPPER 1
1UY-81175-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW,PAN
92501-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-05651-00
Superseded by 90201-051K1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
