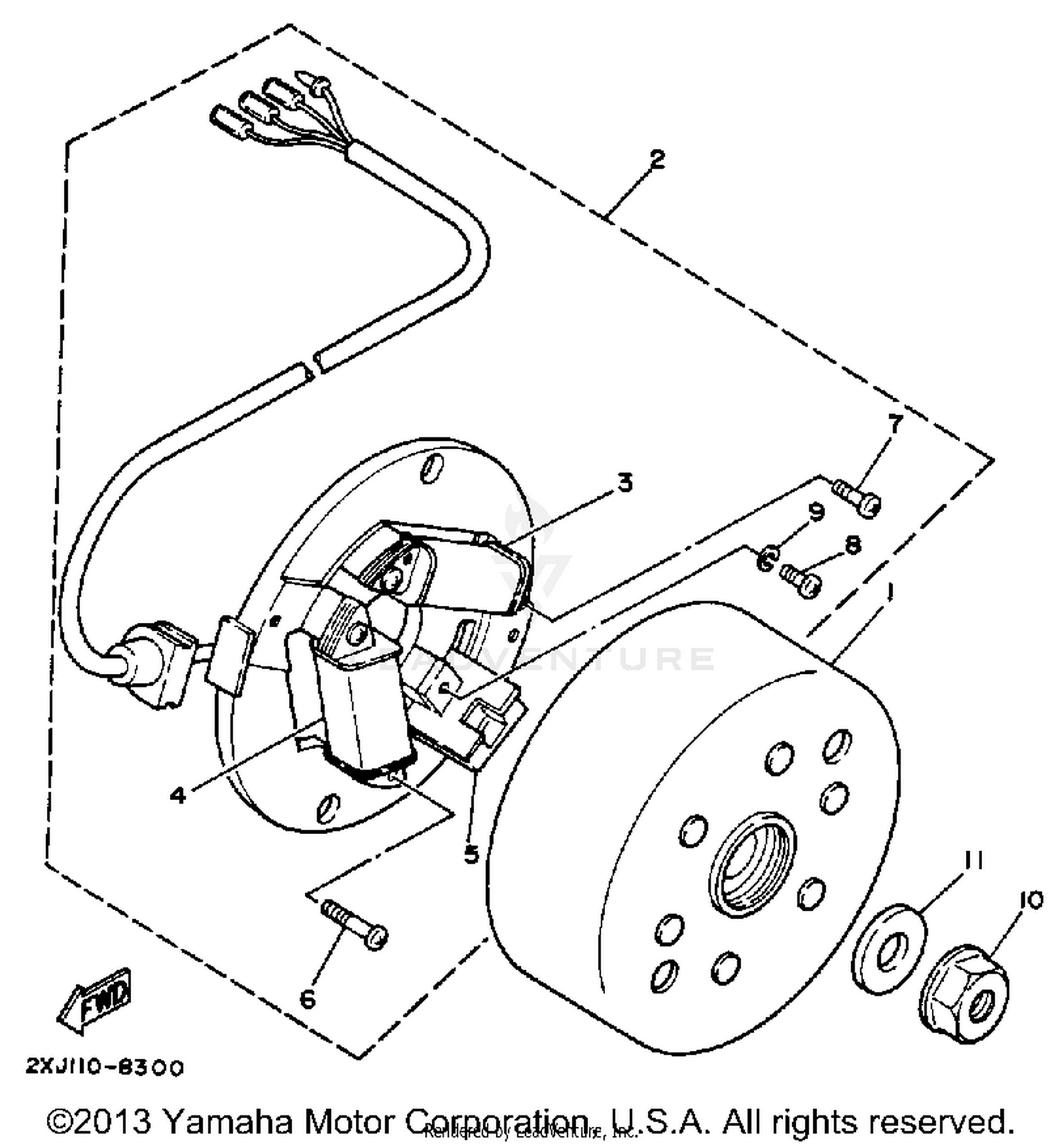

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR ASSY
2XJ-85550-M0-00
Superseded by 2XJ-85550-M1-00
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BASE ASSEMBLY
2XJ-85560-M0-00
|
$251.99 | ||
|
Unavailable |
|||
|
#3
COIL, CHARGE
37A-85520-M1-00
Superseded by 37A-85520-M2-00
|
$85.99 | ||
|
Unavailable |
|||
|
#4
COIL, LIGHTING 1
2XJ-81313-M0-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COIL, PULSER
2AL-85580-M0-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98511-04020-00
Superseded by 98517-04020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98580-04010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-12323-00
Superseded by 90179-12657-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-123L6-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
