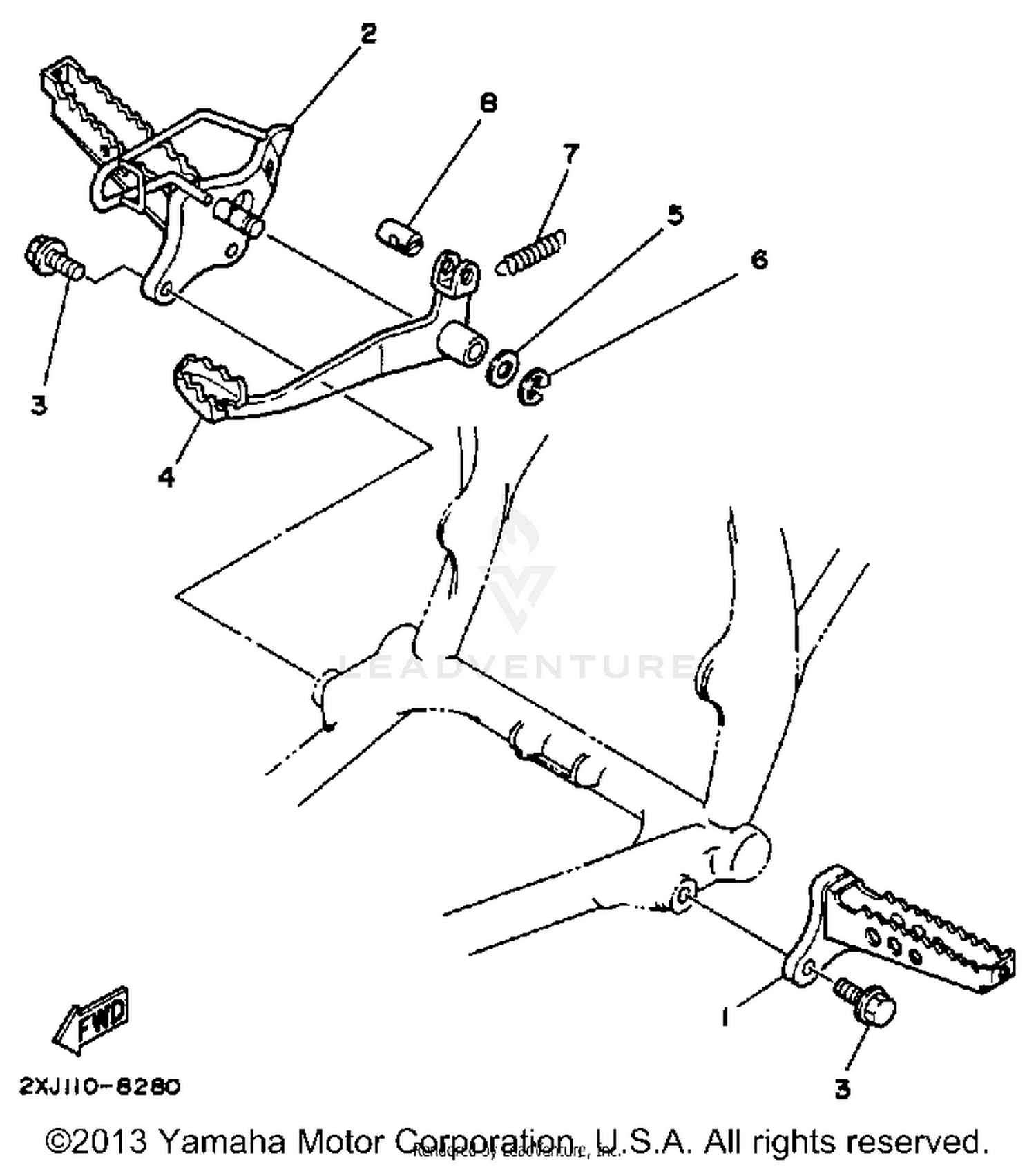

1988 Yamaha YFS200U BLASTER STAND FOOTREST OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOTREST 1
2XJ-27411-00-00
Superseded by 3JM-27411-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#2
FOOTREST 2
2XJ-27421-00-00
Superseded by 3JM-27421-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#3
BOLT, FLANGE
95811-10025-00
Superseded by 95817-10025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PEDAL BRAKE
2XJ-27211-00-00
Superseded by 3JM-27211-10-00
|
$60.99 | ||
|
Unavailable |
|||
|
#5
WASHER, PLATE
90201-15797-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
93430-12008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, TENSION
90506-20193-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
90249-14202-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
