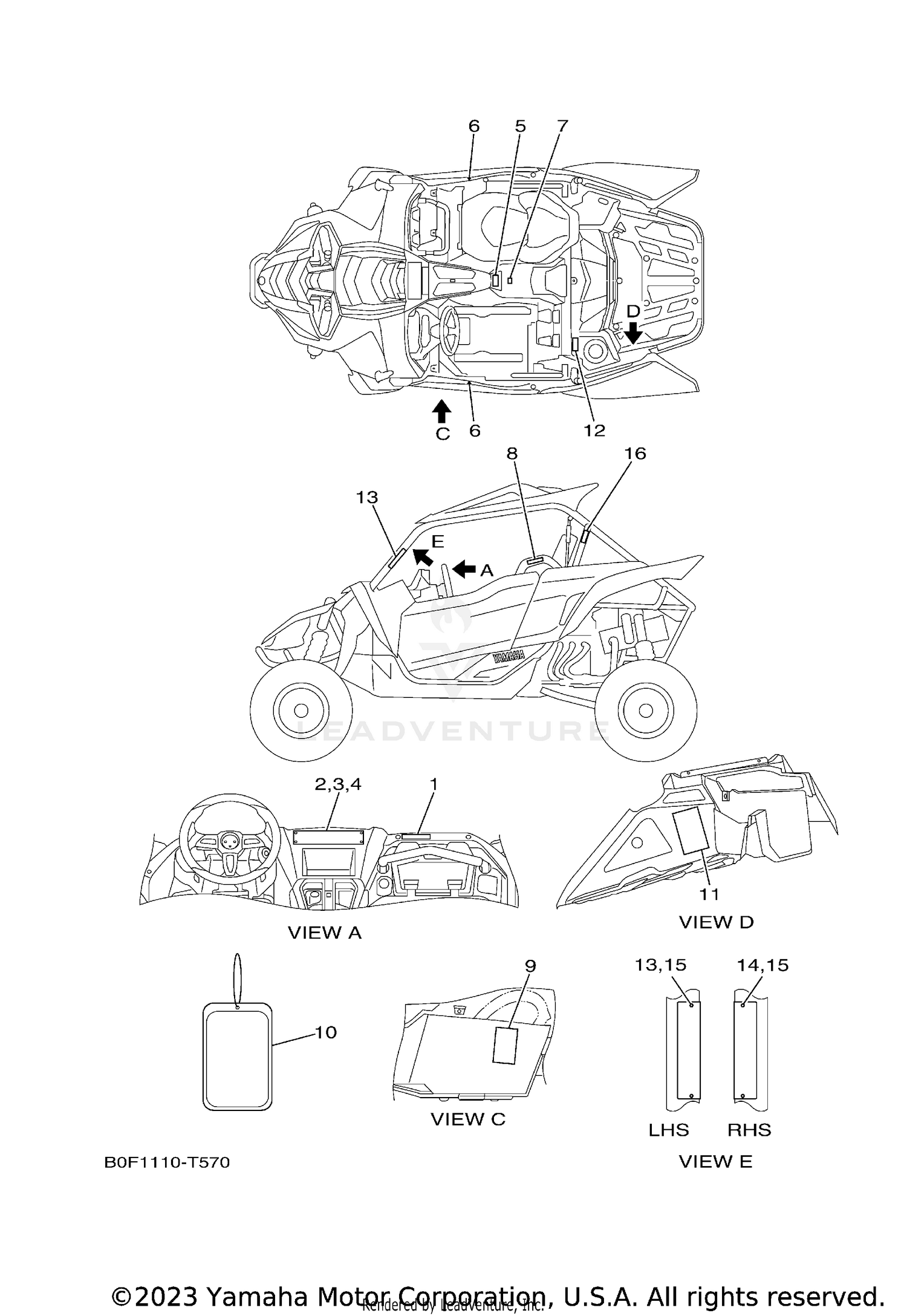

Emblem Label 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LABEL, CAUTION
1XD-F8446-00-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#2
LABEL, WARNING
2MB-F1568-01-00
|
|||
|
Unavailable |
|||
|
#3
RIVET
4XE-F1539-10-00
Superseded by BLT-F1539-00-00
|
$1.15 | ||
|
Unavailable |
|||
|
#4
WASHER, FENDER MOLD
4XE-F1549-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
LABEL, WARNING 2
1XD-F1558-00-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
GRAPHIC 1
2HC-F15D9-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
EMBLEM
2MB-F3819-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
LABEL WARNING
1XD-K8483-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
LABEL, CAUTION
B57-F1696-01-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
TAG, WARNING
2HC-F819R-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
EMBLEM
B57-F4897-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
LABEL 3
1XP-F151F-00-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
LABEL, WARNING 1
5B4-K7761-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
LABEL, WARNING 2
5B4-K7762-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIVET, BLIND
90267-32809-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
EMBLEM 4
2PG-F4164-00-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
