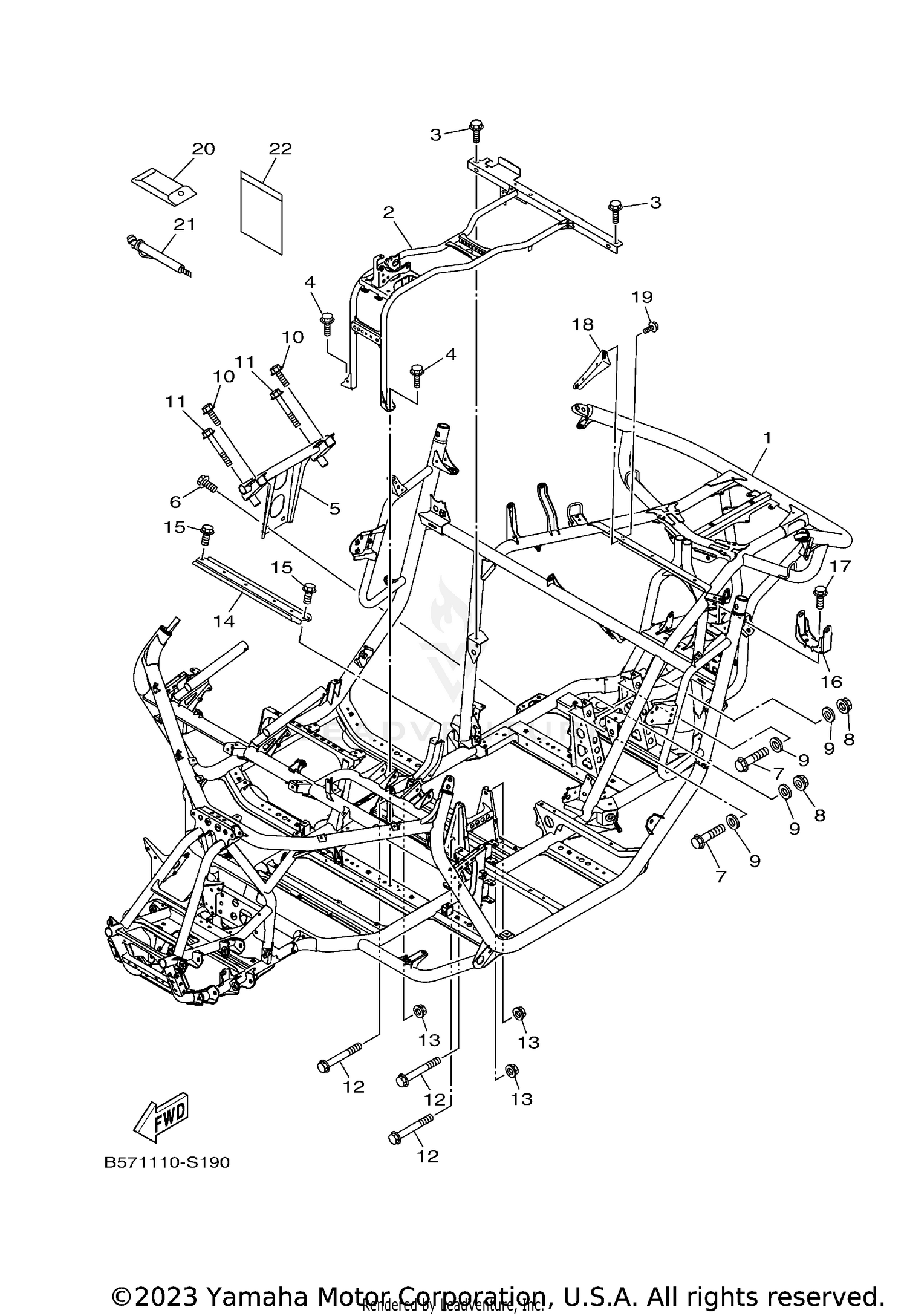

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
2HC-F1110-40-00
|
$4,951.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRAME SUB COMP.
B57-F111B-00-00
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,FLANGE (JN5)
95812-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-08867-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
ENG. MOUNT COMP.
2HC-F110A-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95812-10016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
95812-12070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-12002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92902-12200-00
Superseded by 92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95812-08020-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95812-08055-00
Superseded by 95817-08055-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10176-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, SEAT
2HC-F1349-10-00
Superseded by 2HC-F1349-11-00
|
$18.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95812-08025-00
Superseded by 95817-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, MUFFLER
2HC-F194J-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95812-10016-00
|
$8.49 | ||
|
Unavailable |
|||
|
#18
BRACKET
2HC-F115C-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
TOOL KIT
5B4-F8100-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GAUGE, AIR
1XD-F811A-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
POUCH
1P0-F8186-01-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
