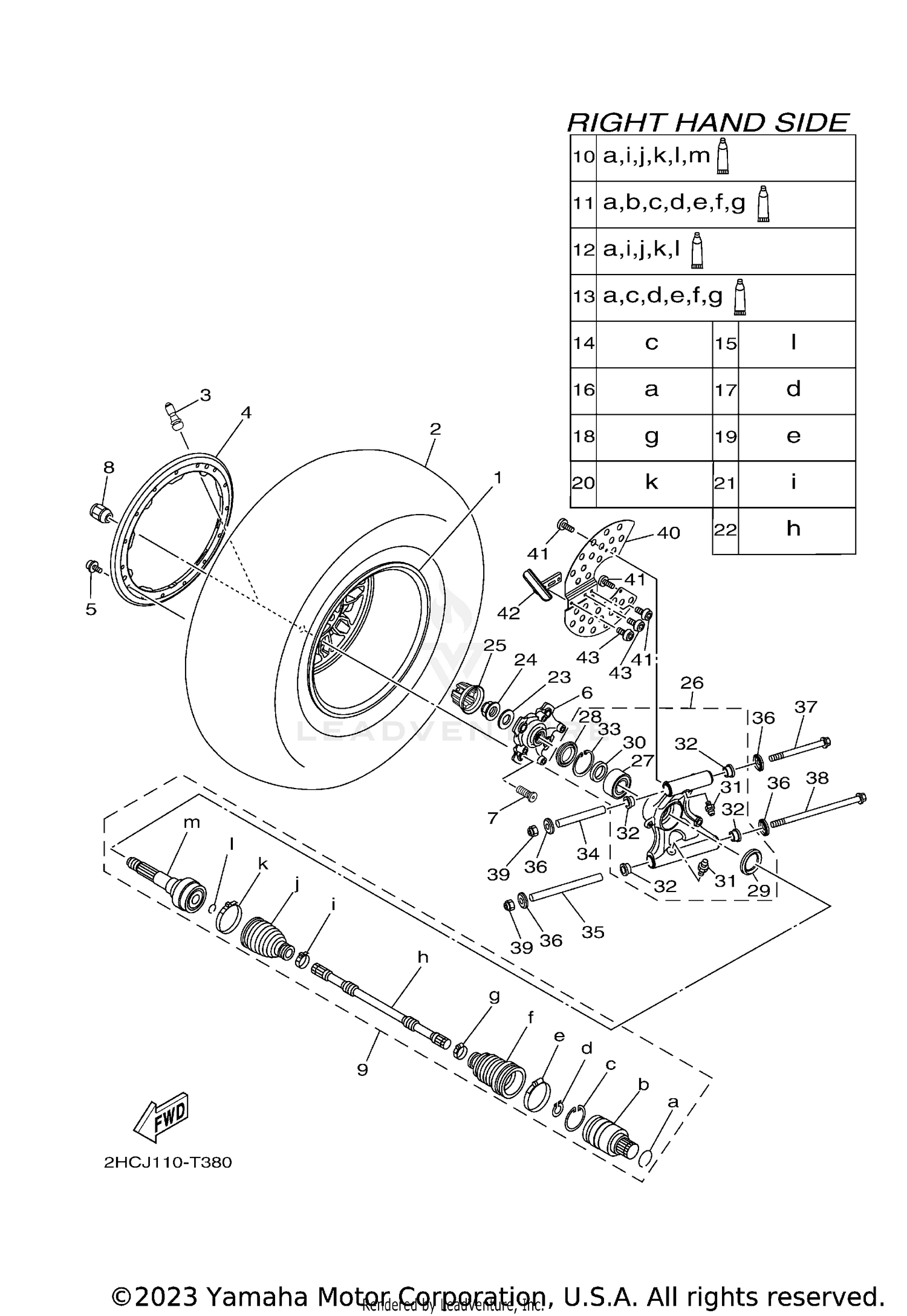

Rear Wheel 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
2HC-F5307-51-00
|
$364.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (27X11.00R14 MU9C 8PR TL)
94111-14807-00
|
$287.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR413)
93900-00813-00
Superseded by 93900-00812-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, LOCK
2HC-F4658-30-00
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
90105-068C3-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB, FRONT
2HC-F5111-00-00
Superseded by 2HC-F5111-02-00
|
$105.99 | ||
|
Unavailable |
|||
|
#7
BOLT, SERRATION
90114-12005-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, CROWN
90176-12800-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
REAR DRIVE SHAFT ASSY
2HC-2531H-10-00
Superseded by 2HC-2531H-13-00
|
$264.99 | ||
|
Unavailable |
|||
|
#10
BALL JOINT SET
2HC-2530T-10-00
Superseded by 2HC-2530T-12-00
|
$472.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
DOUBLE OFF SET JOINT
2HC-2530V-00-00
|
$409.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOOT SET (BALL JOI
2HC-2530X-10-00
Superseded by 2HC-2530X-13-00
|
$47.99 | ||
|
Unavailable |
|||
|
#13
. .BOOT SET(DOUBLE OFFSET JOINT
2HC-2530Y-00-00
Superseded by 2HC-2530Y-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#14
CLIP, SPRING
2HC-2536E-00-00
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING 1
16B-25185-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, SPRING
16B-2536E-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
SNAP RING
2HC-2512J-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND
2HC-25719-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND
2HC-26293-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOOT BAND (SMALL)
2HC-2512G-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND
2HC-26397-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHAFT
2HC-259A2-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-25023-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
90179-24006-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP, WHEEL
2HC-F512A-00-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#26
REAR KNUCKLE ASSY.,2
B57-F532F-00-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93305-00603-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93106-42801-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL
93106-38800-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-30013-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NIPPLE, GREASE
93700-06004-00
Superseded by 93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
BUSH, SOLID
90381-17067-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP (70R)
99009-72500-00
Superseded by 93420-72065-00
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR
90387-12060-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR
90387-12061-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER, THRUST 1
1XD-23517-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE
90105-12066-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE
90105-12097-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, SELF-LOCKING
90185-12007-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
RING, WHEEL RR. 2
2HC-F535C-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT,HEX. SOCKET BUTTON
90111-06096-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLATE, GUIDE 2
2HC-F2342-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
