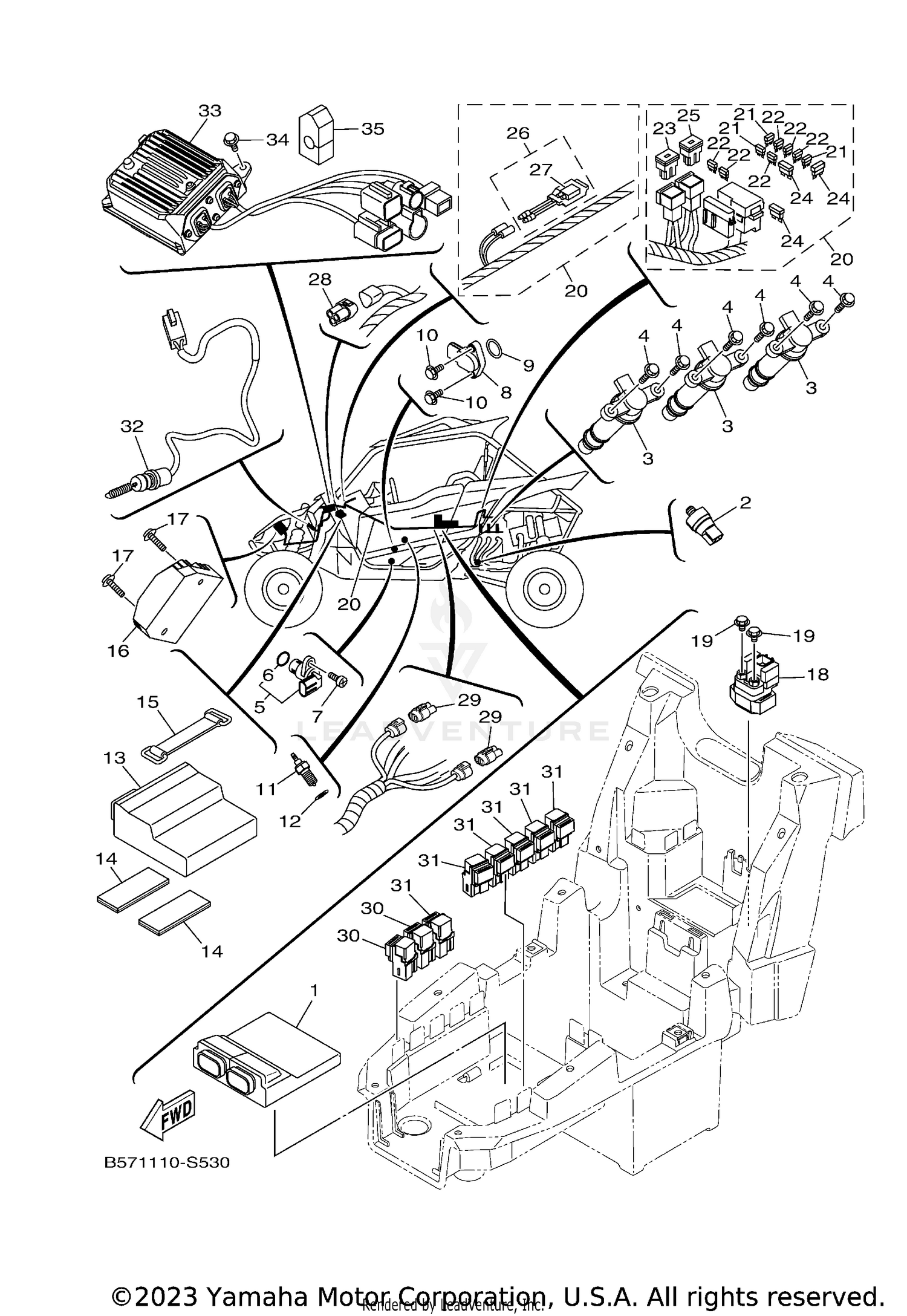

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CONTROL UNIT
B57-8591A-00-00
Superseded by B57-8591A-01-00
|
$598.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
OIL PRESSURE SWITCH ASSY
8FP-82504-00-00
Superseded by 8FP-82504-01-00
|
$68.99 | ||
|
Unavailable |
|||
|
#3
IGNITION COIL ASSY
2HC-82310-00-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SENSOR, SPEED
1TP-83755-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
4D9-81168-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (4MY)
90110-06193-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR, GEAR POSITION
2HC-85899-10-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-17008-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-05067-00
Superseded by 90110-05038-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
MOTOR CONTROL UNIT ASSY
B57-86510-00-00
|
$1,288.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
34D-82176-00-00
Superseded by 1HP-H2176-01-00
|
$2.05 | ||
|
Unavailable |
|||
|
#15
BAND, BATTERY
2T4-82131-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
RECTIFIER & REGULATOR ASSY
1D7-81960-01-00
|
$310.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-06833-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
STARTER RELAY ASSY (RC19-077A)
4D3-81940-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95022-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRE HARNESS ASSY
B57-82590-00-00
|
$1,421.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE (15A)
5JJ-82151-10-00
Superseded by 67F-82151-50-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#23
SLOW BLOW FUSE
5PS-82151-00-00
Superseded by JR9-82151-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE (30A-BL)
5JJ-82151-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUSE (50A)
5JW-82151-10-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCUIT BREAKER ASSY
5B4-82180-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
THERMO SWITCH ASSY
5B4-82560-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CONNECTOR
8CR-82378-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CONNECTOR
B57-82378-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-00-00
Superseded by 5DM-81950-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
RELAY ASSY (8DM-11)
8DM-81950-11-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
STOP SWITCH ASSY
4KB-82530-10-00
Superseded by 4KB-82530-11-00
|
$45.99 | ||
|
Unavailable |
|||
|
#33
POWER STRG. CONT. UNIT ASSY
2HC-859A0-10-00
|
$795.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE, INSULATOR
2HC-H257L-00-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
