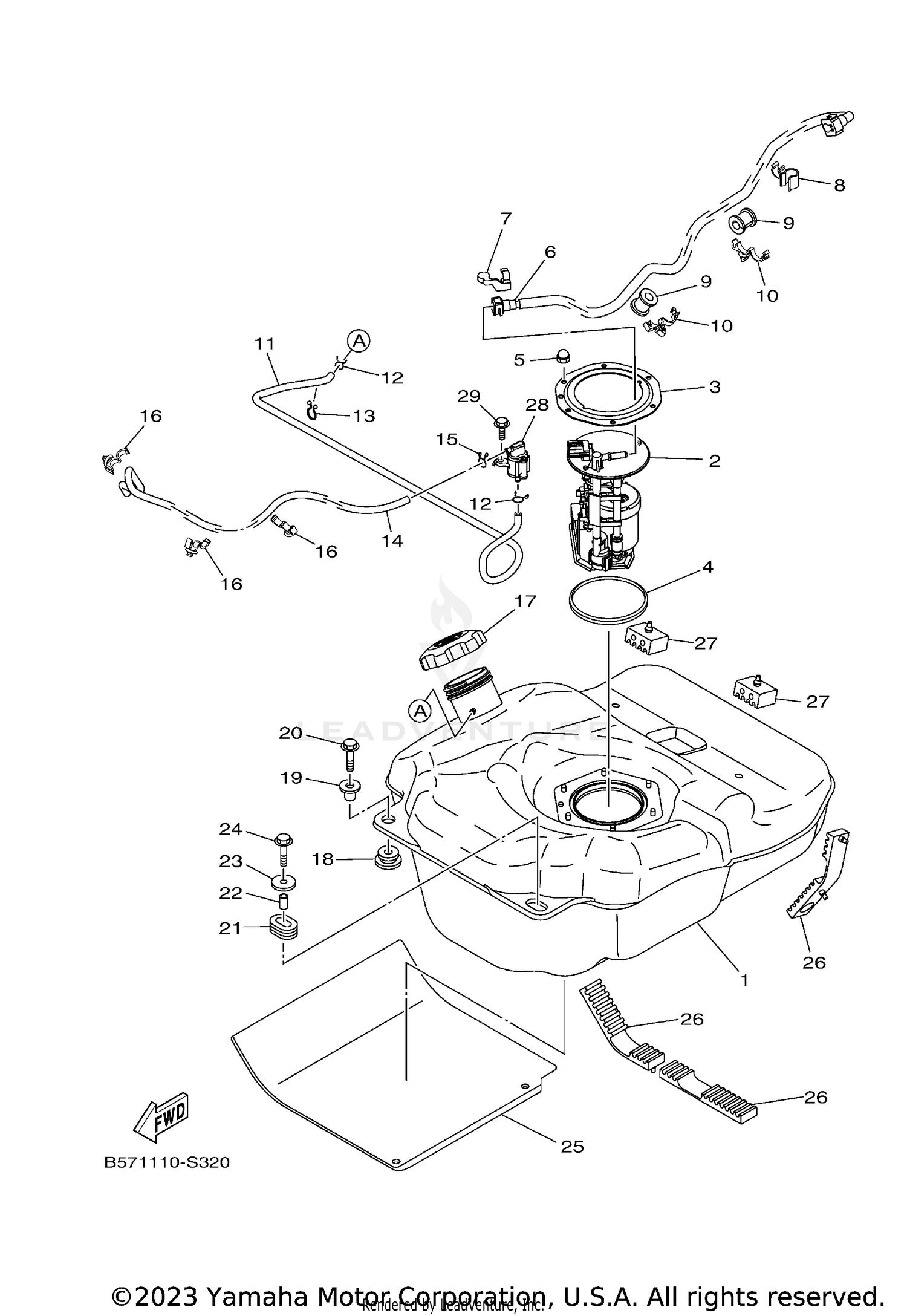

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
2HC-F4110-00-00
|
$202.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUEL PUMP COMP.
B16-13907-00-00
Superseded by B16-13907-03-00
|
$432.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FUEL PUMP
3B4-24491-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
1S3-24486-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CROWN
95302-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, FUEL 1
2HC-13971-01-00
Superseded by 2HC-13971-02-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
90464-14004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90464-15007-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-20543-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90464-20010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE 4
B57-F4314-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-12M48-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE (L1125)
90445-09831-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Unavailable |
|||
|
#16
CLAMP
90464-12830-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP ASSY
2P5-24610-00-00
Superseded by BVG-24610-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-18016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-07021-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT,FLANGE
95802-06030-00
Superseded by 95817-06030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-01400-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR (2UJ)
90387-061V1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-065G8-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,FLANGE
95802-06030-00
Superseded by 95817-06030-00
|
$4.05 | ||
|
Unavailable |
|||
|
#25
DAMPER, PLATE 1
2HC-F414H-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER, LOCATING 1
2HC-F4181-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, LOCATING 2
2MB-F4182-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE JOINT ASSY
28P-24380-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95022-06016-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
