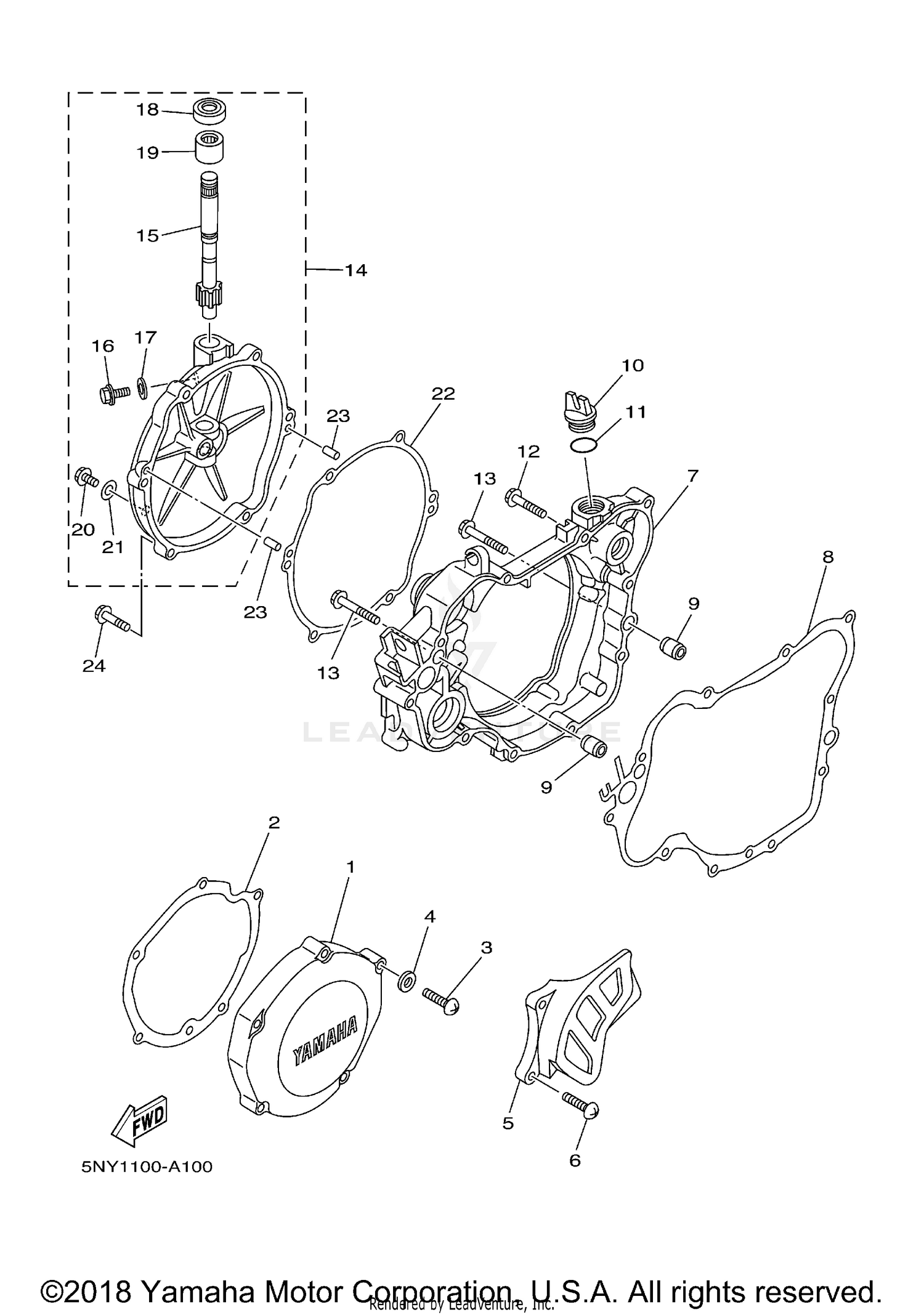

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
4JY-15411-00-00
|
$93.09 | ||
|
Unavailable |
|||
|
#2
GASKET, CRANKCASE COVER 1
4JY-15451-10-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98507-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CRANKCASE 2
4EX-15421-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW,PAN HEAD
98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, CRANKCASE 3
4JY-15431-14-00
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, CRANKCASE COVER 3
4JY-15462-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99510-10114-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, OIL
3Y1-15363-00-00
Superseded by 3Y1-15363-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95027-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER ASSY
5NY-15490-00-00
|
$262.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
AXLE, PUSH LEVER
4EX-16382-10-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
90109-06418-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
93102-12224-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93315-11206-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95027-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
90430-06014-00
|
$8.49 | ||
|
Unavailable |
|||
|
#22
GASKET, CARBURETOR COVER 2
4JY-15463-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
